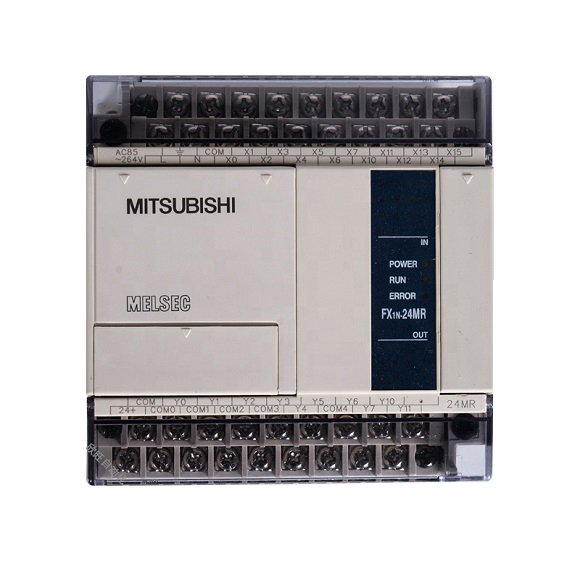

Mitsubishi PLC Module FX1N-24MT-001/FX1N-24MR-001

Series#: Mitsubishi

Product Details

Model: Mitsubishi FX1N-24MT-001 / FX1N-24MR-001 – Compact yet powerful PLC module for industrial automation.
Offers 14 inputs and 10 outputs, with transistor (MT) or relay (MR) output options for flexible control.
High-speed processing: 0.55 to 0.7µs per basic instruction, ensuring rapid cycle times.
Built-in 8K step program capacity and support for 120+ instructions including applied functions.
Supports high-speed counters up to 5kHz, ideal for precise motion and encoder feedback.

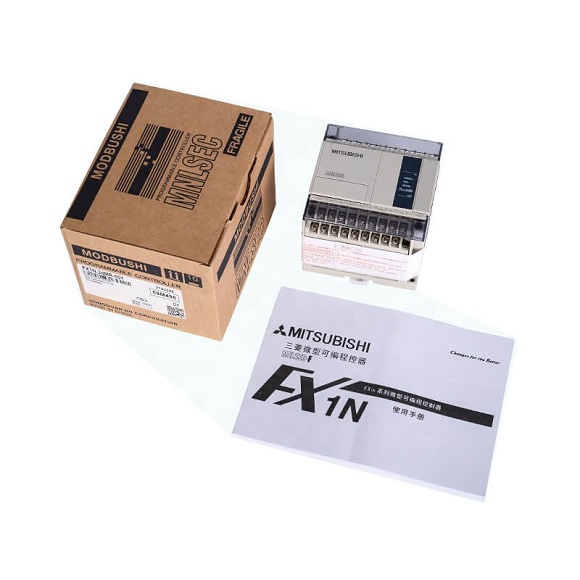

Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi FX1N-24MT-001 / FX1N-24MR-001 is a highly versatile PLC module designed for mid-range automation tasks, combining compact hardware with advanced processing capabilities. Its relay or transistor output variants make it suitable for both discrete and high-speed switching applications. With a robust instruction set and extensive memory, this module excels in sequential control, motion monitoring, and data handling. Below are the detailed technical specifications derived from the original datasheet.

Parameter	Specification
Operation control method	Cyclic operation by stored program
I/O control method	Batch processing (when END instruction executed)
Operation processing time	Basic instructions: 0.55 to 0.7 µs; Applied instructions: 1.65 to several 100 µs
Programming language	Relay symbolic language + step ladder
Program capacity	8K steps
Number of instructions	Basic sequence: 29; Step ladder: 2; Applied: 89
I/O configuration	Max hardware I/O: 128 points; Software addressable: 128 inputs / 128 outputs
State relays (S coils) – Latched	1000 points
State relays (S coils) – Initial	10 points (subset)
Timers (T) – 100 msec	Range: 0 to 3276.7 sec; 200 points
Timers (T) – 10 msec	Range: 0 to 327.67 sec; 46 points
Timers (T) – 1 msec	Range: 0 to 32.767 sec; 4 points
Timers (T) – 100 msec retentive	Range: 0 to 3276.7 sec; 6 points
Counters (C) – General	Range: 1 to 32767 counts; 16 points
Counters (C) – Latched	184 points (subset)
Counters (C) – 32-bit general	Range: -2147483648 to +2147483647 counts; 20 points
Counters (C) – 32-bit latched	15 points (subset)
High-speed counters (C)	Select up to four 1-phase counters (combined ≤5kHz) or one 2-phase/A-B counter (≤2kHz); all latched
Data registers (D) – General	7128 points
Data registers (D) – Latched	872 points (subset)
Data registers (D) – File	7000 points
Data registers (D) – Externally adjusted	Range: 0 to 255; 2 points
Data registers (D) – Special	256 points (includes D8013, D8030, D8031)
Data registers (D) – Index	16 points
Pointers – With CALL	128 points
Pointers – For interrupts	6 points
Nest levels	8 points for MC/MCR
Decimal constant (K)	16-bit: -32768 to +32767; 32-bit: -2147483648 to +2147483647
Hexadecimal constant (H)	16-bit: 0000 to FFFF; 32-bit: 00000000 to FFFFFFFF

High-Speed Processing: Basic instruction execution at 0.55–0.7 µs ensures real-time response for fast-cycle applications.
Extensive Timer/Counter Suite: Includes 200+ timers (1ms to 100ms) and counters up to 32-bit, plus high-speed options for encoder integration.
Rich Data Register Pool: Over 7000 general-purpose and file registers support complex data logging and recipe management.
Flexible I/O Expansion: Up to 128 hardware I/O points with software addressable limits, accommodating diverse sensor/actuator configurations.
Robust Programming Support: Relay ladder logic with step ladder and 89 applied instructions, including interrupts and CALL functions for structured code.
Reliable Power and Isolation: Built-in surge protection and noise immunity for industrial environments.
