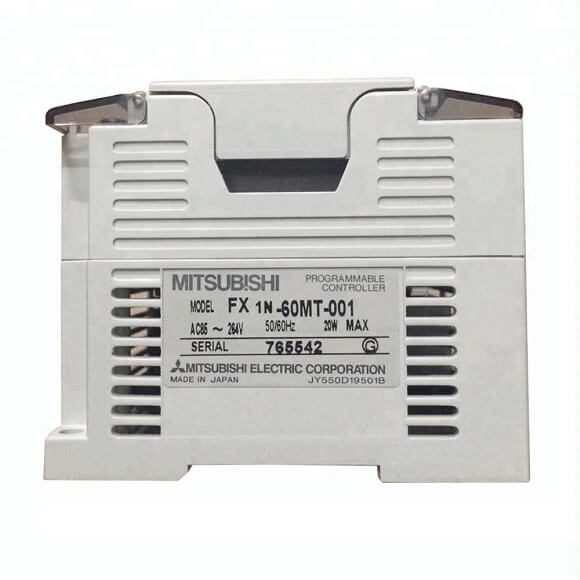

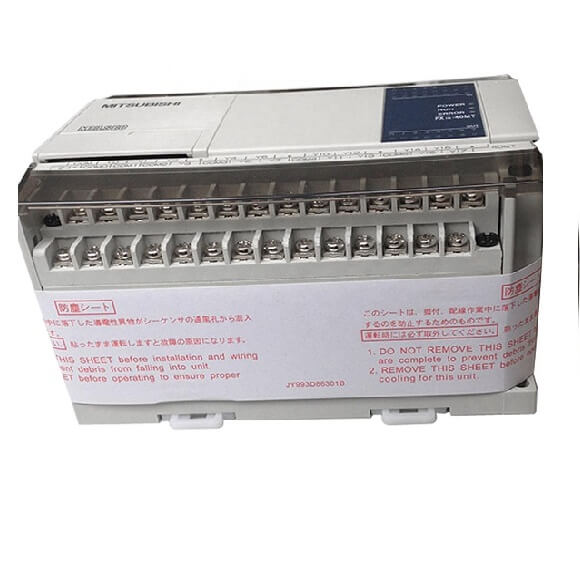

Mitsubishi PLC Module FX1N-60MT-001/FX1N-60MR-001

Series#: Mitsubishi

Product Details

High-performance Mitsubishi PLC Module FX1N-60MT-001/FX1N-60MR-001 for compact automation systems.
Offers 60 I/O points with relay (MR) or transistor (MT) output options for flexible control.
Features 8K-step program memory and fast processing speed (0.55-0.7µs per basic instruction).
Supports high-speed counters, timers, and extensive data registers for advanced applications.
Easy integration with existing Mitsubishi networks and programming tools.
Robust design with latch relays and battery backup for reliable operation in harsh environments.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi PLC Module FX1N-60MT-001/FX1N-60MR-001 is a compact yet powerful programmable logic controller designed for mid-range industrial automation tasks. With 60 built-in I/O points, it combines relay or transistor output options with a robust processing core, enabling precise control of machinery, conveyors, and process lines. The FX1N series excels in applications requiring high-speed counting, flexible timer configurations, and extensive data handling, all while maintaining the reliability expected from Mitsubishi's legacy of quality. This module is ideal for retrofit projects or new installations where space and performance are critical.

Parameter	Specification
Operation Control Method	Cyclic operation by stored program
I/O Control Method	Batch processing method (when END instruction is executed)
Operation Processing Time	Basic instructions: 0.55 to 0.7 µs Applied instructions: 1.65 to several 100 µs
Programming Language	Relay symbolic language + step ladder
Program Capacity	8K steps
Number of Instructions	Basic sequence: 29, Step ladder: 2, Applied: 89
I/O Configuration	Max hardware I/O: 128 points; Software addressable: Inputs 128, Outputs 128
State Relays (S coils) - Latched	1000 points
State Relays (S coils) - Initial	10 points (subset)
Timers (T) - 100 msec	Range: 0 to 3276.7 sec, 200 points
Timers (T) - 10 msec	Range: 0 to 327.67 sec, 46 points
Timers (T) - 1 msec	Range: 0 to 32.767 sec, 4 points
Timers (T) - 100 msec retentive	Range: 0 to 3276.7 sec, 6 points
Counters (C) - General	Range: 1 to 32,767 counts, 16 points
Counters (C) - Latched	184 points (subset)
High Speed Counters (C)	Select up to four 1-phase counters (combined ≤5 kHz) or one 2-phase/A/B phase counter (≤2 kHz); all latched
Data Registers (D) - General	7128 points
Data Registers (D) - Latched	872 points (subset)
Data Registers (D) - File	7000 points
Data Registers (D) - Externally adjusted	Range: 0 to 255, 2 points
Data Registers (D) - Special	256 points (inclusive of D8013, D8030, D8031)
Data Registers (D) - Index	16 points
Pointers - With CALL	128 points
Pointers - For use with interrupts	6 points
Nest Levels	8 points for use with MC and MCR
Decimal K	16-bit: -32,768 to +32,767 32-bit: -2,147,483,648 to +2,147,483,647
Hexadecimal H	16-bit: 0000 to FFFF 32-bit: 00000000 to FFFFFFFF

Memory & Processing: 8K-step program capacity with fast 0.55-0.7 µs basic instruction execution ensures real-time control for complex sequences.
I/O Flexibility: 60 onboard I/O points expandable to 128; relay (MR) for high-current loads or transistor (MT) for high-speed switching.
Timing & Counting: 250 timers (100 msec, 10 msec, 1 msec, retentive) and 200 counters including high-speed (up to 5 kHz) for precision applications.
Data Handling: 7128 general data registers plus 7000 file registers support extensive data logging and parameter storage.
Interrupts & Nesting: 6 interrupt pointers and 8 nest levels for priority-driven control and subroutine management.
Robustness: Latched relays and data registers with battery backup maintain state during power loss; supports decimal and hexadecimal constants.
