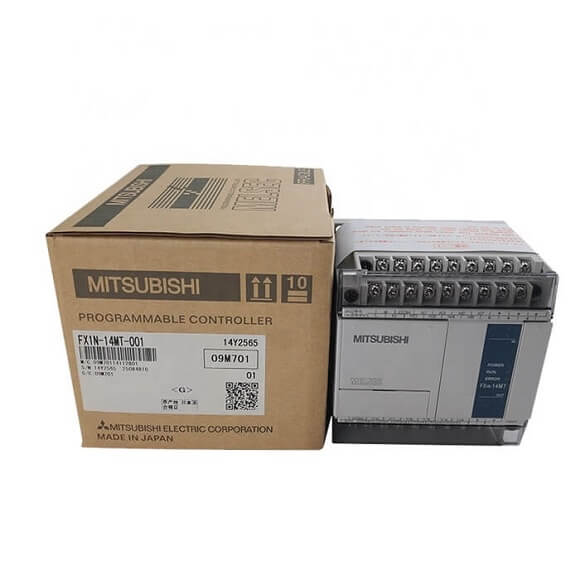

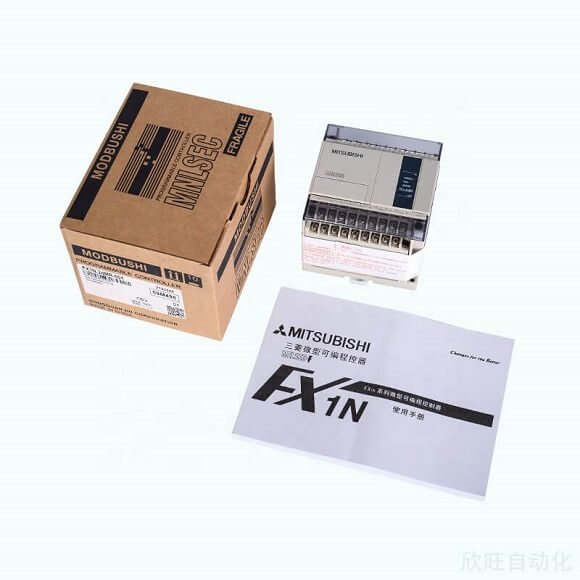

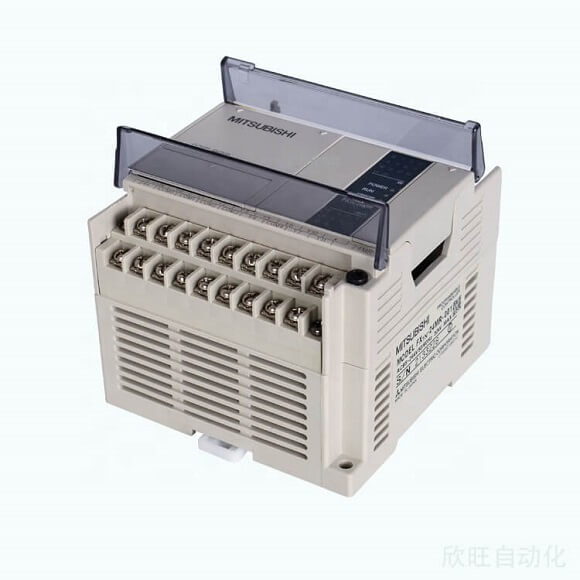

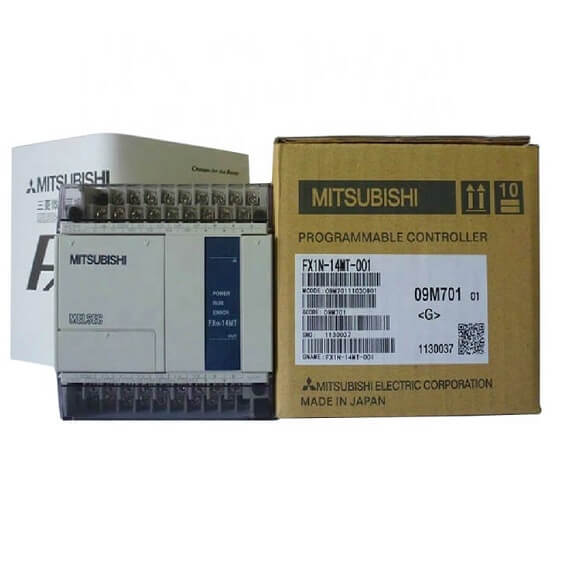

Mitsubishi PLC Module FX1N-14MT-001

Series#: Mitsubishi

Product Details

Mitsubishi PLC Module FX1N-14MT-001 – A compact, high-performance controller for small-scale automation.
14-point I/O configuration (8 inputs / 6 outputs) with transistor sink outputs for fast switching.
8K step program memory and 0.55–0.7 µs basic instruction speed ensures reliable cyclic operation.
Built-in high-speed counters (1-phase up to 5 kHz, 2-phase up to 2 kHz) for precise motion control.
Rich instruction set: 29 basic, 2 step ladder, 89 applied instructions for flexible ladder logic.
Supports up to 128 I/O points via expansion modules – scalable for growing system needs.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi PLC Module FX1N-14MT-001 is a versatile and rugged programmable logic controller designed for OEMs and system integrators requiring a compact, yet powerful control solution. This module excels in applications such as packaging, material handling, and small machine automation, delivering deterministic performance through stored program cyclic operation with batch I/O processing. Its transistor-sink outputs allow for high-frequency switching, making it ideal for driving solenoids, indicators, and small motors. The FX1N-14MT-001 is fully compatible with the FX1N series expansion ecosystem, offering seamless scalability up to 128 I/O points while maintaining a minimal footprint.

Parameter	Specification
Operation Control Method	Cyclic operation by stored program
I/O Control Method	Batch processing method (when END instruction is executed)
Operation Processing Time	Basic instructions: 0.55 to 0.7 µs / Applied instructions: 1.65 to several 100 µs
Programming Language	Relay symbolic language + step ladder
Program Capacity	8K steps
Number of Instructions	Basic sequence: 29 / Step ladder: 2 / Applied: 89
I/O Configuration	Max hardware I/O: 128 points (Max software addressable: Inputs 128, Outputs 128)
State Relays (S coils) – Latched	1000 points
State Relays (S coils) – Initial	10 points (subset)
Timers (T) – 100 msec	Range: 0 to 3276.7 sec / 200 points
Timers (T) – 10 msec	Range: 0 to 327.67 sec / 46 points
Timers (T) – 1 msec	Range: 0 to 32.767 sec / 4 points
Timers (T) – 100 msec retentive	Range: 0 to 3276.7 sec / 6 points
Counters (C) – General	Range: 1 to 32,767 counts / 16 points
Counters (C) – Latched	184 points (subset)
Counters (C) – 32-bit general	Range: -2,147,483,648 to +2,147,483,647 counts / 20 points
Counters (C) – 32-bit latched	15 points (subset)
High-Speed Counters (C)	Select up to four 1-phase counters (≤5 kHz combined) or one 2-phase/A/B-phase counter (≤2 kHz). All latched.
Data Registers (D) – General	7128 points
Data Registers (D) – Latched	872 points (subset)
Data Registers (D) – File	7000 points
Data Registers (D) – Externally adjusted	Range: 0 to 255 / 2 points
Data Registers (D) – Special	256 points (includes D8013, D8030, D8031)
Data Registers (D) – Index	16 points
Pointers – with CALL	128 points
Pointers – For use with interrupts	6 points
Nest Levels	8 points (for MC and MCR)
Decimal K	16-bit: -32,768 to +32,767 / 32-bit: -2,147,483,648 to +2,147,483,647
Hexadecimal H	16-bit: 0000 to FFFF / 32-bit: 00000000 to FFFFFFFF

I/O Configuration: The FX1N-14MT-001 provides 8 sink/source inputs (24V DC) and 6 transistor-sink outputs (0.5A per point), with all outputs protected against short circuits and overcurrent.
High-Speed Counter Capabilities: Supports up to four 1-phase counters (5 kHz combined) or one 2-phase/A/B-phase counter (2 kHz) – ideal for encoder feedback or pulse train monitoring.
Memory and Data Handling: 8K step program memory with 7,128 general-purpose data registers and 7000 file registers ensures ample storage for complex algorithms and recipe management.
Expansion and Scalability: Through the FX1N expansion bus, users can add analog I/O, temperature modules, or additional discrete I/O up to 128 points, enabling system growth without replacing the main unit.
Instruction Set Depth: 120 total instructions including 29 basic sequence, 2 step ladder, and 89 applied instructions (e.g., PID, floating point, data move) for advanced control logic.
Robust Environmental Design: Rated for industrial environments with 0–55°C operating temperature and 35–85% RH non-condensing humidity; conforms to IEC 61131-2 standards.
Integrated Communication: Built-in RS-422 port for programming via GX Developer or GX Works2; optional RS-232C/485 adapters for HMI or SCADA connectivity.
