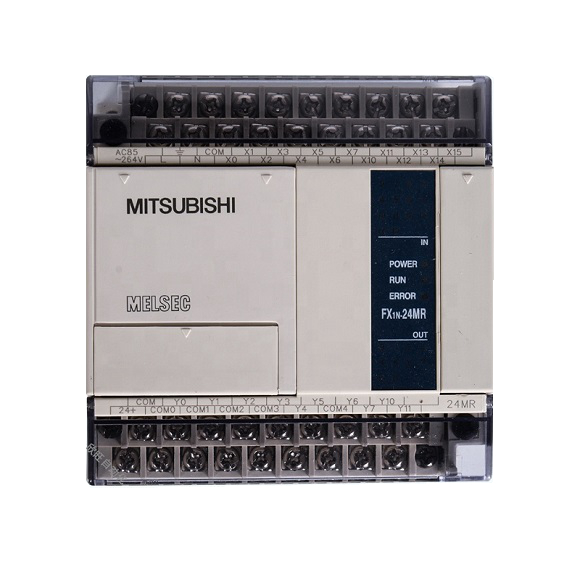

Mitsubishi PLC Module FX1N-24MT-D/FX1N-24MR-D

Series#: Mitsubishi

Product Details

High-performance Mitsubishi PLC Module FX1N-24MT-D/FX1N-24MR-D, engineered for compact automation tasks.
Offers 14 input and 10 output points, with models for relay (MR) or transistor (MT) output configurations.
Supports up to 128 I/O points via expansion, ideal for scalable control systems.
Features 8K-step program memory, 29 basic instructions, and 89 applied instructions for versatile programming.
Includes built-in high-speed counters (up to 5kHz) and real-time clock for precision timing applications.
Compact footprint with DIN-rail mounting, ensuring easy integration into existing panels.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi PLC Module FX1N-24MT-D/FX1N-24MR-D is a powerhouse in the FX1N series, delivering robust control for small to medium-scale industrial automation. With its 24-point I/O configuration (14 inputs, 10 outputs), this module excels in applications ranging from packaging lines to material handling. Choose the FX1N-24MT-D for high-speed transistor switching or the FX1N-24MR-D for reliable relay outputs—both models guarantee seamless operation with Mitsubishi's proven stored-program cyclic control. Expandable to 128 I/O points, it offers unmatched flexibility for evolving system demands.

Parameter	Specification
Operation Control Method	Cyclic operation by stored program
I/O Control Method	Batch processing (when END instruction is executed)
Operation Processing Time	Basic instructions: 0.55 to 0.7 ms; Applied instructions: 1.65 to several 100 ms
Programming Language	Relay symbolic language + step ladder
Program Capacity	8K steps
Number of Instructions	Basic sequence: 29; Step ladder: 2; Applied: 89
I/O Configuration	Max hardware I/O: 128 points (software addressable: Inputs 128, Outputs 128)
State Relays (S coils) - Latched	1000 points
State Relays (S coils) - Initial	10 points (subset)
Timers (T) - 100 msec	Range: 0 to 3276.7 sec; 200 points
Timers (T) - 10 msec	Range: 0 to 327.67 sec; 46 points
Timers (T) - 1 msec	Range: 0 to 32.767 sec; 4 points
Timers (T) - 100 msec retentive	Range: 0 to 3276.7 sec; 6 points
Counters (C) - General	Range: 1 to 32767 counts; 16 points
Counters (C) - Latched	184 points (subset)
Data Registers (D) - General	7128 points
Data Registers (D) - Latched	872 points (subset)
Data Registers (D) - File	7000 points
Data Registers (D) - Externally Adjusted	Range: 0 to 255; 2 points
Data Registers (D) - Special	256 points (includes D8013, D8030, D8031)
Data Registers (D) - Index	16 points
Pointers - With CALL	128 points
Pointers - For Interrupts	6 points
Nest Levels	8 points (for MC and MCR)
Decimal (K) Range	16-bit: -32768 to +32767; 32-bit: -2147483648 to +2147483647
Hexadecimal (H) Range	16-bit: 0000 to FFFF; 32-bit: 00000000 to FFFFFFFF

High-Speed Counter Capabilities: Supports up to four 1-phase counters at 5kHz or one 2-phase/A/B phase counter at 2kHz, all latched for critical speed monitoring.
Timing Precision: 250 timer points across 1ms, 10ms, and 100ms resolutions, plus 6 retentive timers for power-loss critical processes.
Data Handling: Over 8000 data register points including general, latched, file, and special registers, with 16-bit and 32-bit signed integer support.
Expansion Compatibility: Connect up to 128 I/O points via FX1N expansion modules, allowing tailored system scaling.
Industrial-Grade Reliability: Built with Mitsubishi's robust design, ensuring stable operation in harsh environments with DIN-rail mounting.
