Mitsubishi PLC Module FX1N-60MT-D/FX1N-60MR-D

Series#: Mitsubishi

Product Details

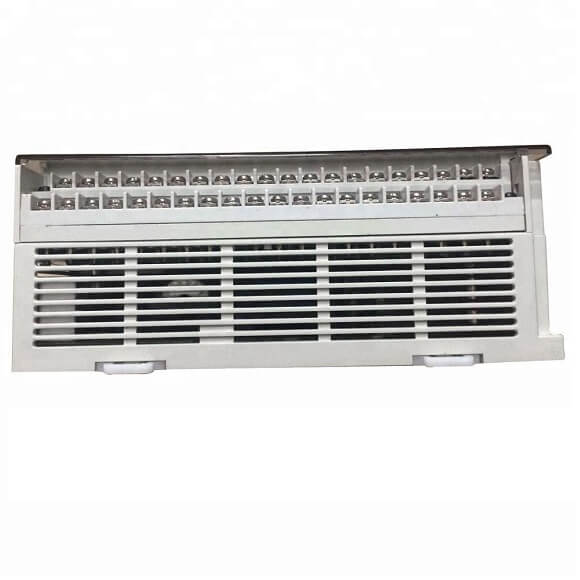

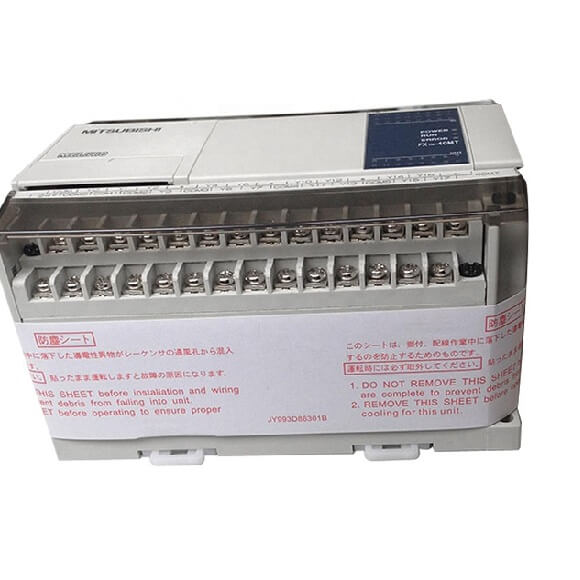

Mitsubishi PLC Module FX1N-60MT-D/FX1N-60MR-D – High-performance compact controller for industrial automation.
Supports up to 128 I/O points with flexible relay or transistor output options.
8K step program memory with fast 0.55–0.7 ms basic instruction execution.
Integrated high-speed counters, timers, and extensive data register capacity.
Reliable stored-program cyclic operation for precise, repeatable control.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi PLC Module FX1N-60MT-D/FX1N-60MR-D is a compact yet powerful programmable logic controller designed for demanding industrial control tasks. Engineered for reliability, it combines a robust 8K-step program memory with high-speed processing and versatile I/O configurations, making it ideal for applications ranging from simple machine control to complex automation systems. Its transistor (MT) or relay (MR) output variants offer flexibility for different load requirements, while integrated high-speed counters and timers ensure precise event handling. Below are the complete technical specifications.

Parameter	Specification
Operation Control Method	Cyclic operation by stored program
I/O Control Method	Batch processing method (when END instruction is executed)
Operation Processing Time	Basic instructions: 0.55 to 0.7 ms; Applied instructions: 1.65 to several 100 ms
Programming Language	Relay symbolic language + step ladder
Program Capacity	8K steps
Number of Instructions	Basic sequence: 29; Step ladder: 2; Applied: 89
I/O Configuration	Max hardware I/O: 128 points (software addressable Inputs: 128, Outputs: 128)
State Relays (S coils) – Latched	1000 points
State Relays (S coils) – Initial	10 points (subset)
Timers (T) – 100 msec	Range: 0 to 3,276.7 sec; 200 points
Timers (T) – 10 msec	Range: 0 to 327.67 sec; 46 points
Timers (T) – 1 msec	Range: 0 to 32.767 sec; 4 points
Timers (T) – 100 msec retentive	Range: 0 to 3,276.7 sec; 6 points
Counters (C) – General	Range: 1 to 32,767 counts; 16 points
Counters (C) – Latched	184 points (subset)
High-Speed Counters (C)	Select up to four 1-phase counters (combined 5kHz or less) or one 2-phase/A/B phase counter (2kHz or less); all latched
Data Registers (D) – General	7128 points
Data Registers (D) – Latched	872 points (subset)
Data Registers (D) – File	7000 points
Data Registers (D) – Externally adjusted	Range: 0 to 255; 2 points
Data Registers (D) – Special	256 points (inclusive of D8013, D8030, D8031)
Data Registers (D) – Index	16 points
Pointers – With CALL	128 points
Pointers – For use with interrupts	6 points
Nest Levels	8 points for use with MC and MCR
Decimal K	16 bit: -32,768 to +32,767; 32 bit: -2,147,483,648 to +2,147,483,647
Hexadecimal H	16 bit: 0000 to FFFF; 32 bit: 00000000 to FFFFFFFF

Output Options: FX1N-60MT-D offers transistor outputs for high-speed switching; FX1N-60MR-D provides relay outputs for AC/DC load isolation.
High-Speed Processing: Basic instruction execution in 0.55–0.7 ms ensures rapid logic resolution.
Flexible I/O Expansion: Supports up to 128 hardware I/O points with software addressing for 128 inputs and 128 outputs.
Comprehensive Timer/Counter Suite: Includes 200+ timers with 1 ms to 100 ms resolutions and 20+ counters with 32,767 count range plus high-speed variants.
Extensive Data Memory: 7128 general data registers plus 7000 file registers for large data handling.
Interrupt and Nesting Capabilities: 6 interrupt pointers and 8 nest levels for advanced program flow control.
