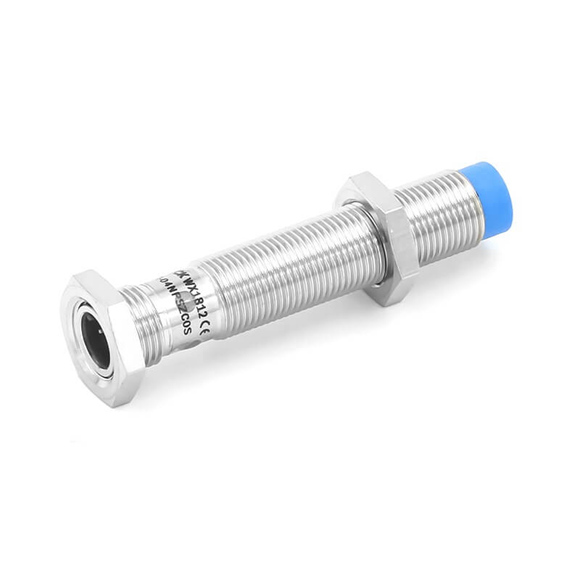

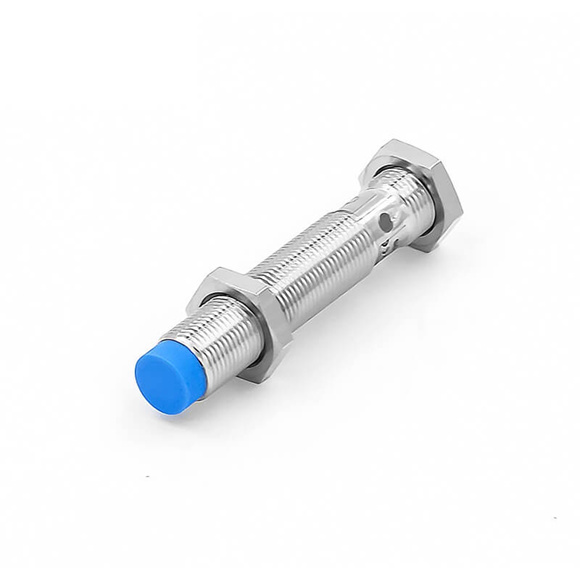

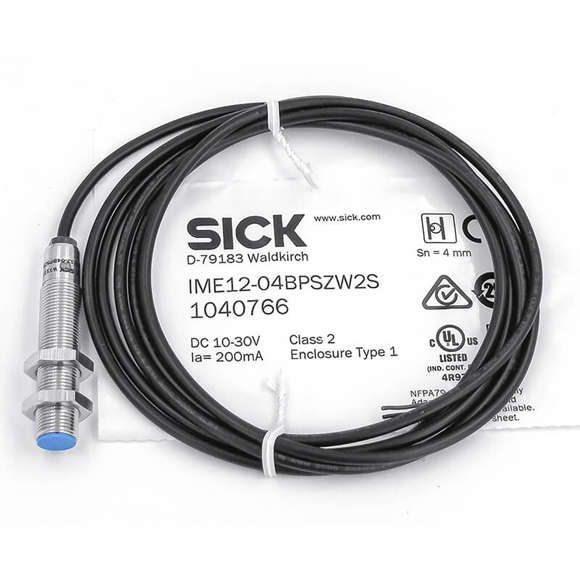

The SICK IME12-04BPOZC0S and IME12-04BPOZW2S are advanced inductive proximity sensors engineered for reliable metal detection in industrial automation. These M12 cylindrical sensors feature a flush-mountable design with a 4 mm nominal sensing range, making them ideal for confined spaces and precise positioning tasks. With PNP normally closed outputs and robust IP67 protection, they deliver consistent performance in dusty, wet, or vibration-prone environments. The sensors operate on a 10-30 V DC supply and include integrated short-circuit, reverse polarity, and power-up pulse protection for enhanced durability.
| Parameter |
Specification |
| Housing Type |
Cylindrical thread design, standard |
| Thread Size |
M12 x 1 |
| Diameter |
Ø 12 mm |
| Nominal Sensing Range (Sn) |
4 mm |
| Safe Sensing Range (Sa) |
3.24 mm |
| Installation Type |
Flush |
| Switching Frequency |
2,000 Hz |
| Connection Type |
Male connector M12, 4-pin |
| Switching Output |
PNP |
| Output Function |
Normally Closed (NC) |
| Electrical Wiring |
DC 3-wire |
| Enclosure Rating |
IP67 |
| Supply Voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 10 % |
| Voltage Drop |
≤ 2 V |
| Current Consumption |
10 mA |
| Time Delay Before Availability |
≤ 100 ms |
| Hysteresis |
5 % … 15 % |
| Reproducibility |
≤ 2 % |
| Temperature Drift (of Sr) |
± 10 % |
| EMC |
According to EN 60947-5-2 |
| Continuous Current (Ia) |
≤ 200 mA |
| Short-Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Power-Up Pulse Protection |
Yes |
| Shock and Vibration Resistance |
30 g, 11 ms / 10 Hz … 55 Hz, 1 mm |
| Ambient Operating Temperature |
–25 °C … +75 °C |
| Housing Material |
Brass, nickel-plated |
| Sensing Face Material |
Plastic, PA 66 |
| Housing Length |
65 mm |
| Thread Length |
48 mm |
| Max. Tightening Torque |
≤ 12 Nm |
| Items Supplied |

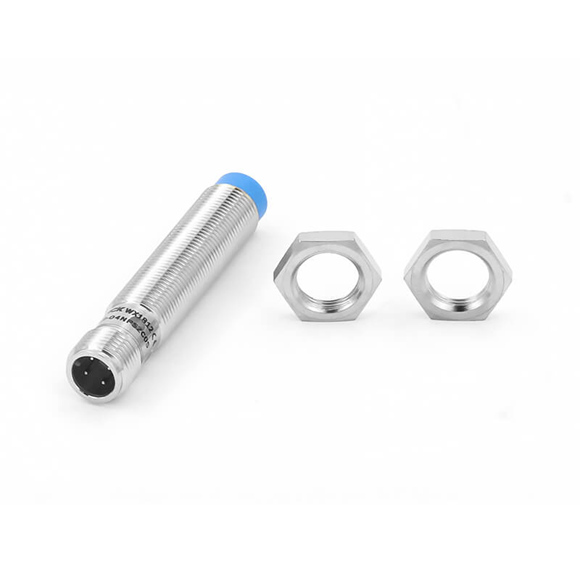

Mounting nut, brass, nickel-plated (2x) |
| UL File No. |
NRKH.E181493 |
