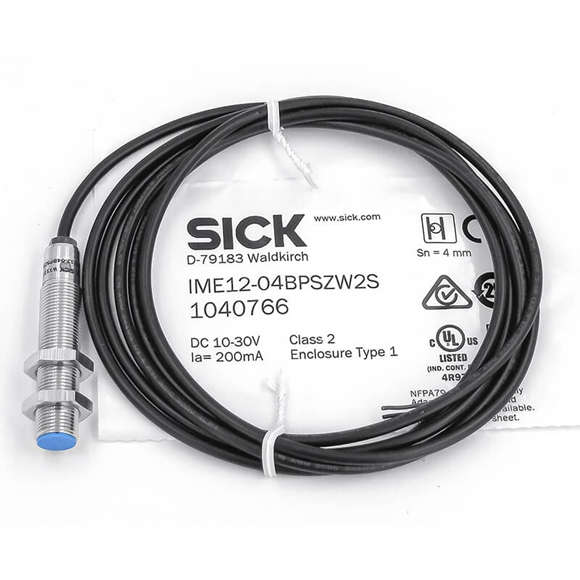

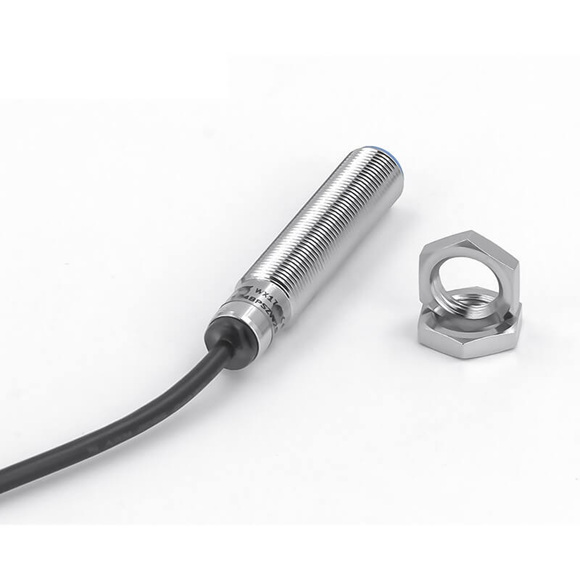

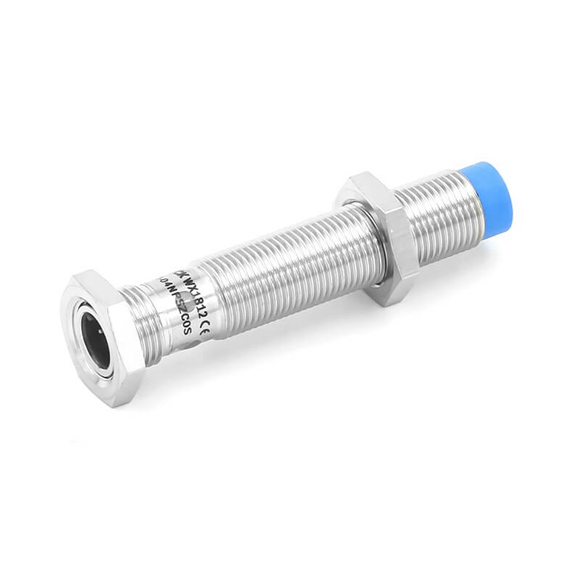

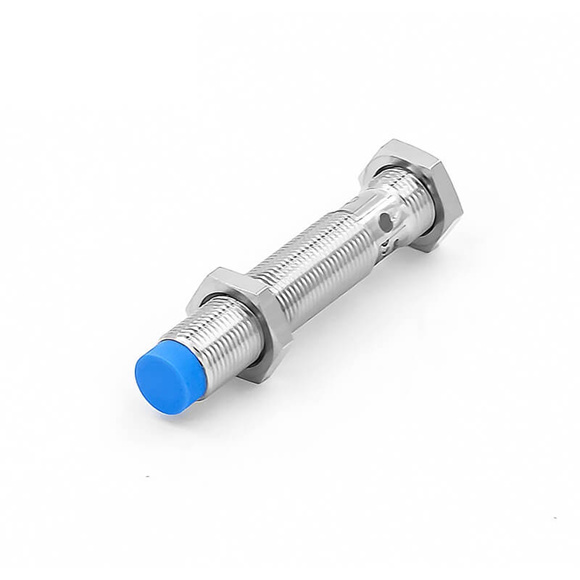

The SICK IME12-04BPSZC0KS41 and IME12-04BPSZC0K are high-reliability inductive proximity sensors designed for demanding industrial automation applications. These M12 threaded sensors feature a short-body cylindrical design for easy integration into tight spaces, delivering a 4 mm flush sensing range with exceptional repeatability and temperature stability. Engineered for harsh environments, they offer IP67 protection, robust shock and vibration resistance, and comprehensive electrical safeguards. Whether used in packaging, material handling, or machine tool positioning, these sensors ensure consistent, maintenance-free operation.
| Specification |
Detail |
| Housing Design |
Cylindrical thread, short-body |
| Thread Size |
M12 x 1 |
| Diameter |
12 mm |
| Sensing Range (Sn) |
4 mm |
| Safe Sensing Range (Sa) |
3.24 mm |
| Installation Type |
Flush |
| Switching Frequency |
2,000 Hz |
| Connection Type |
Male connector M12, 4-pin |
| Switching Output |
PNP |
| Output Function |
Normally Open (NO) |
| Electrical Wiring |
DC 3-wire |
| Enclosure Rating |
IP67 |
| Supply Voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 10% |
| Voltage Drop |
≤ 2 V |
| Current Consumption |
10 mA |
| Time Delay Before Availability |
≤ 100 ms |
| Hysteresis |
5% … 15% |
| Reproducibility |
≤ 2% |
| Temperature Drift (of Sr) |
± 10% |
| EMC Compliance |
EN 60947-5-2 |
| Continuous Current (Ia) |
≤ 200 mA |
| Short-Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Power-Up Pulse Protection |
Yes |
| Shock Resistance |
30 g, 11 ms |
| Vibration Resistance |
10 Hz … 55 Hz, 1 mm |
| Ambient Operating Temperature |
–25 °C … +75 °C |
| Housing Material |
Brass, nickel-plated |
| Sensing Face Material |
Plastic, PA 66 |
| Housing Length |
46 mm |
| Thread Length |
29 mm |
| Tightening Torque, Max |
12 Nm |
| Items Supplied |
Mounting nut, brass, nickel-plated (2x) |
| UL File No. |
NRKH.E181493 |
