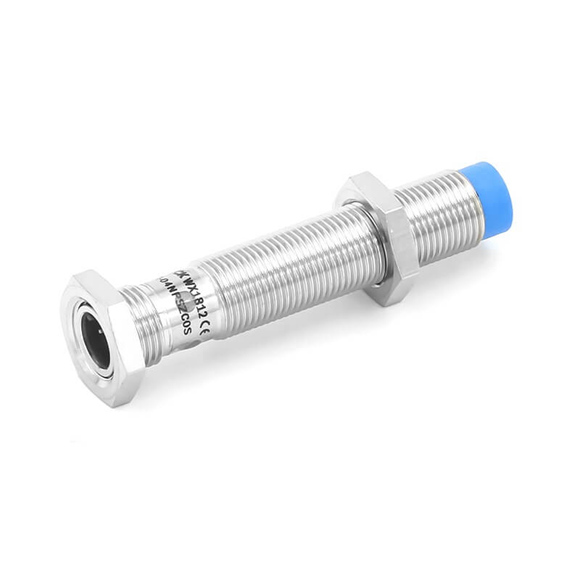

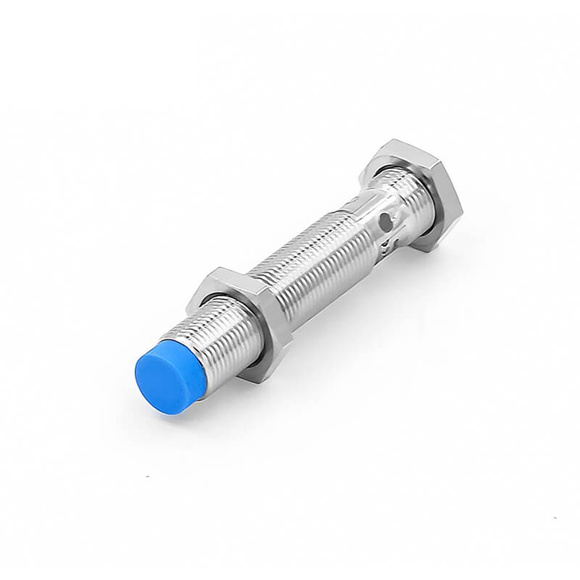

Sick IME12-04BPPZC0S Magnetic Proximity Sensor

Series#: Sick

Product Details

High-performance SICK IME12-04BPPZC0S and IME12-04BPSZC0KS21 inductive proximity sensors deliver precise 4 mm flush sensing in M12 x 1 cylindrical threads.
Robust PNP complementary switching output with DC 4-wire configuration for flexible integration into control systems.
IP67-rated brass housing with nickel plating, rated for harsh industrial environments and vibration resistance up to 30 g.
High switching frequency of 2,000 Hz enables rapid detection in high-speed machinery and conveyor applications.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SICK IME12-04BPPZC0S and IME12-04BPSZC0KS21 are premium-grade inductive proximity sensors designed for reliable metal target detection in compact M12 threaded housings. These flush-mounted units offer a 4 mm sensing range with excellent repeatability and temperature stability, making them ideal for position sensing, end-stop detection, and part presence verification in automated manufacturing. Built with a nickel-plated brass body and PA66 sensing face, they withstand shock, vibration, and moisture ingress (IP67) in demanding factory floor conditions. The complementary PNP output simplifies wiring for normally-open or normally-closed logic, while short-circuit, reverse polarity, and power-up pulse protection ensure long service life. Trust these sensors for OEM replacements or new installations requiring high-speed, durable proximity sensing.

Parameter	Value
Housing Design	Cylindrical thread, Standard
Thread Size	M12 x 1
Diameter	Ø 12 mm
Sensing Range Sn	4 mm
Safe Sensing Range Sa	3.24 mm
Installation Type	Flush
Switching Frequency	2,000 Hz
Connection Type	Male connector M12, 4-pin
Switching Output	PNP
Output Function	Complementary
Electrical Wiring	DC 4-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage Drop	≤ 2 V
Current Consumption	10 mA
Time Delay Before Availability	≤ 100 ms
Hysteresis	5 % … 15 %
Reproducibility	≤ 2 %
Temperature Drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous Current Ia	≤ 200 mA
Short-Circuit Protection	✔
Reverse Polarity Protection	✔
Power-Up Pulse Protection	✔
Shock and Vibration Resistance	30 g, 11 ms / 10 Hz … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +75 °C
Housing Material	Brass, nickel-plated
Sensing Face Material	Plastic, PA 66
Housing Length	65 mm
Thread Length	48 mm
Tightening Torque, Max.	≤ 12 Nm

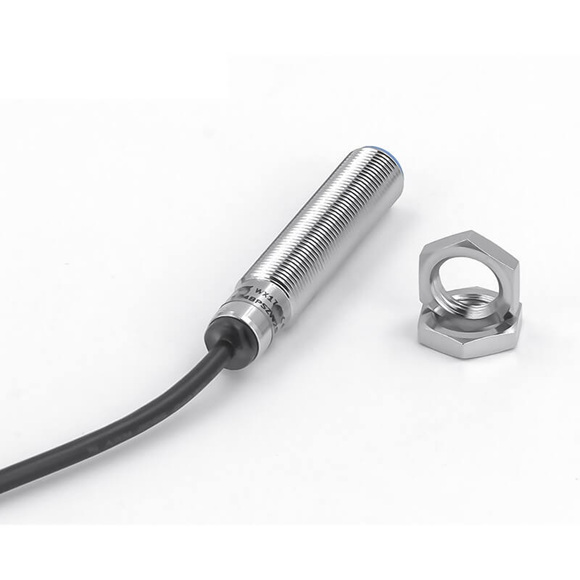

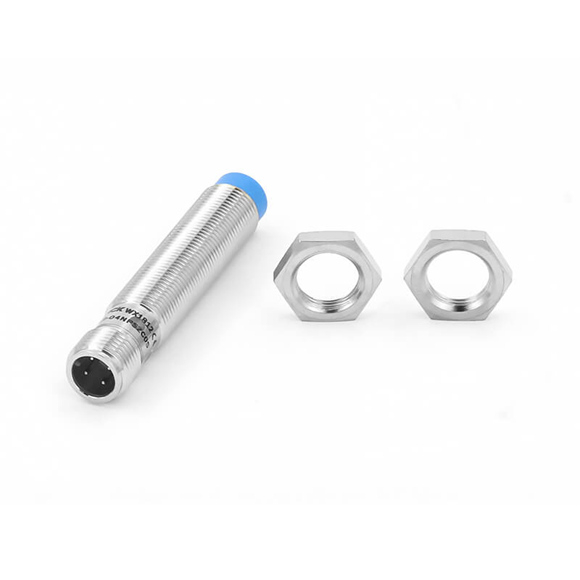

Items Supplied	Mounting nut, brass, nickel-plated (2x)
UL File No.	NRKH.E181493
