Sick IM12-04NNS-ZWB Magnetic Proximity Sensor

Series#: Sick

Product Details

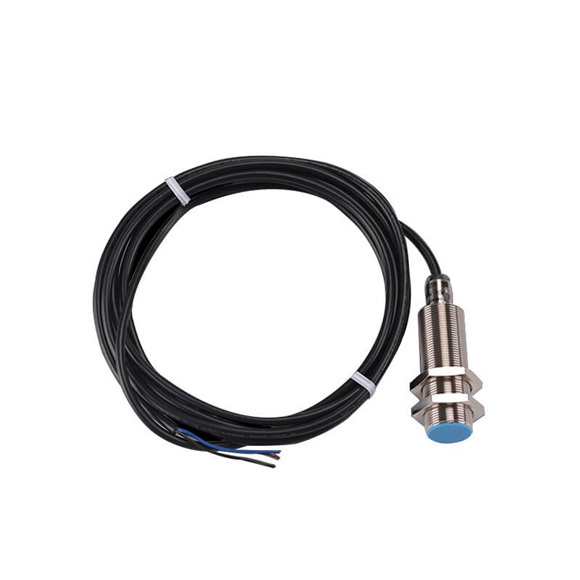

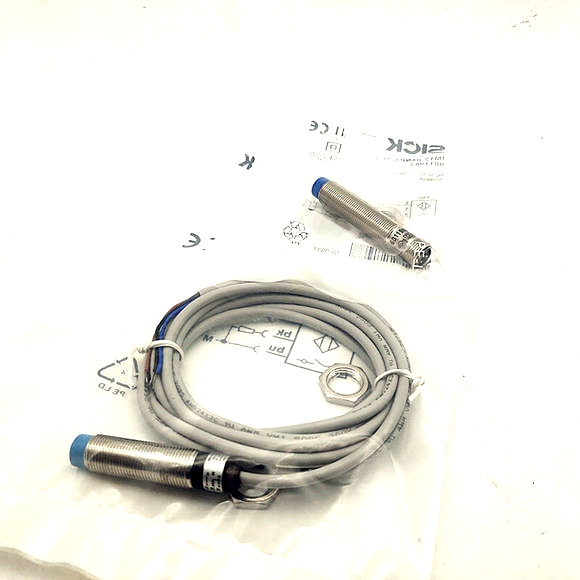

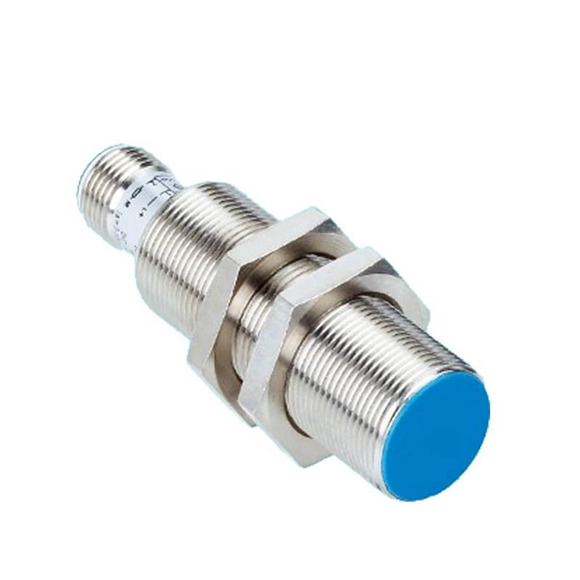

SICK IM12-04NNS-ZWB and IM12-04NNS-ZC1 are high-performance M12 magnetic proximity sensors designed for reliable non-flush detection.
Non-flush installation with a 4 mm sensing range (Sn) delivers precise object detection in tight industrial spaces.
NPN normally open (NO) output with DC 3-wire wiring ensures straightforward integration into control systems.
Rugged IP67-rated brass housing with nickel plating provides excellent resistance to harsh factory environments.
Fast 2,000 Hz switching frequency supports high-speed automation applications.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SICK IM12-04NNS-ZWB and IM12-04NNS-ZC1 are part of the IM12 series magnetic proximity sensors, engineered for precise non-flush sensing in demanding industrial automation. These M12 x 1 cylindrical sensors offer a 4 mm sensing range and a robust NPN NO output, making them ideal for position detection, end-stop monitoring, and part presence verification. With a 5-meter PVC cable, IP67 protection, and a wide operating temperature range from –25 °C to +70 °C, they deliver reliable performance in environments with shock, vibration, and moisture. The nickel-plated brass housing and plastic sensing face ensure durability, while built-in short-circuit, reverse polarity, and power-up pulse protection enhance system safety.

Parameter	Specification
Housing Design	Cylindrical thread design
Housing Type	Standard
Thread Size	M12 x 1
Diameter	Ø 12 mm
Sensing Range Sn	4 mm
Installation Type	Non-flush
Switching Frequency	2,000 Hz
Connection Type	Cable, 3-wire, 5 m
Switching Output	NPN
Output Function	Normally Open (NO)
Electrical Wiring	DC 3-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage Drop	≤ 1.2 V
Current Consumption	20 mA
Time Delay Before Availability	≤ 100 ms
Hysteresis	2 % … 10 %
Reproducibility	≤ 2 %
Temperature Drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous Current Ia	≤ 200 mA
Cable Material	PVC
Conductor Size	0.22 mm²
Short-Circuit Protection	✔
Reverse Polarity Protection	✔
Power-Up Pulse Protection	✔
Shock and Vibration Resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +70 °C
Housing Material	Brass, Nickel-plated brass
Sensing Face Material	Plastic
Housing Length	50 mm
Thread Length	35 mm
Tightening Torque, Max.	10 Nm
