Sick IME18-05BPSZC0S Magnetic Proximity Sensor

Series#: Sick

Product Details

Model: IME18-05BPSZC0S & IME18-05BPPZC0S – High-performance SICK inductive proximity sensors for precise metal detection.

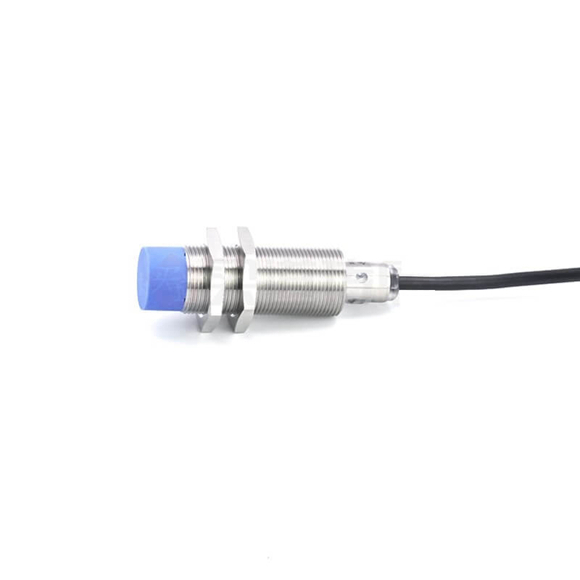

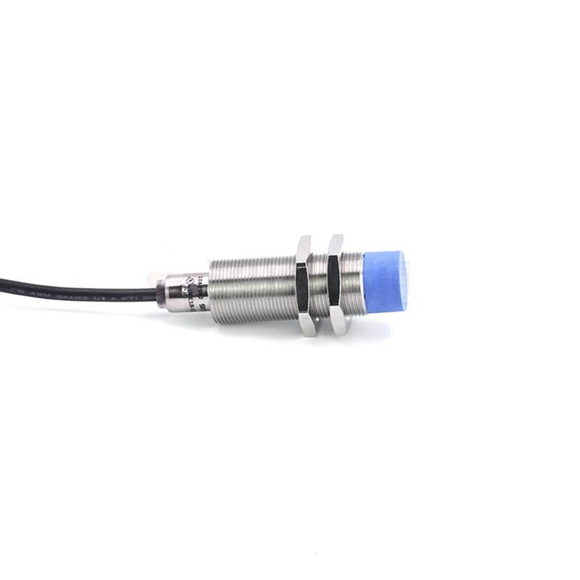

M18 x 1 cylindrical threaded housing in nickel-plated brass, rated IP67 for harsh industrial environments.
Flush mountable with a 5 mm sensing range (Sn) and 4.05 mm safe sensing range (Sa).
PNP switching output, normally open (NO) function, and DC 3-wire electrical wiring for easy integration.
High switching frequency of 1,000 Hz, ensuring rapid response in high-speed automation lines.
Built-in protection: short-circuit, reverse polarity, and power-up pulse protection for reliable operation.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SICK IME18-05BPSZC0S and IME18-05BPPZC0S are robust M18 inductive proximity sensors designed for reliable non-contact detection of metallic objects in automation systems. These sensors feature a flush-mountable cylindrical housing with a 5 mm sensing range, making them ideal for space-constrained applications in packaging, material handling, and machine tool industries. With a PNP switching output and normally open function, they integrate seamlessly into PLC and controller networks. Rated IP67 and built with nickel-plated brass and PA66 sensing face, these sensors withstand dust, moisture, and mechanical stress. The IME18 series delivers consistent performance across a wide temperature range and includes essential protections to ensure long service life in demanding factory floor conditions.

Parameter	Specification
Housing Design	Cylindrical thread design, Standard
Thread Size	M18 x 1
Diameter	Ø 18 mm
Sensing Range (Sn)	5 mm
Safe Sensing Range (Sa)	4.05 mm
Installation Type	Flush
Switching Frequency	1,000 Hz
Connection Type	Male connector M12, 4-pin
Switching Output	PNP
Output Function	Normally Open (NO)
Electrical Wiring	DC 3-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage Drop	≤ 2 V
Current Consumption	10 mA
Time Delay Before Availability	≤ 100 ms
Hysteresis	5 % … 15 %
Reproducibility	≤ 2 %
Temperature Drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous Current (Ia)	≤ 200 mA
Short-Circuit Protection	Yes
Reverse Polarity Protection	Yes
Power-Up Pulse Protection	Yes
Shock and Vibration Resistance	30 g, 11 ms / 10 Hz … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +75 °C
Housing Material	Brass, nickel-plated
Sensing Face Material	Plastic, PA 66
Housing Length	69 mm
Thread Length	52 mm
Tightening Torque, Max.	≤ 40 Nm

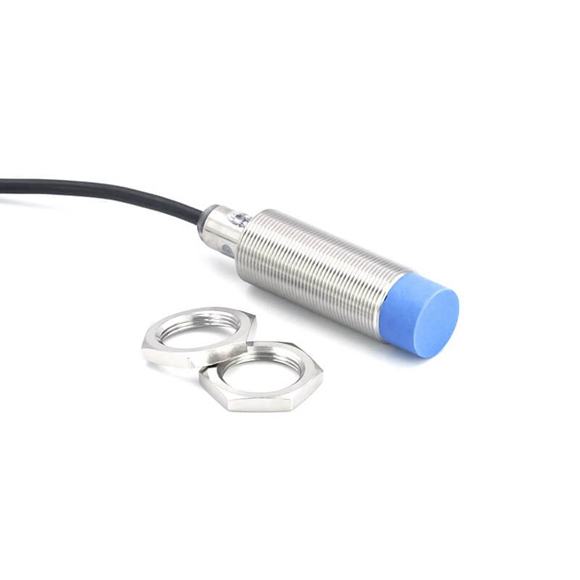

Items Supplied	Mounting nut, brass, nickel-plated (2x)
UL File No.	NRKH.E181493
