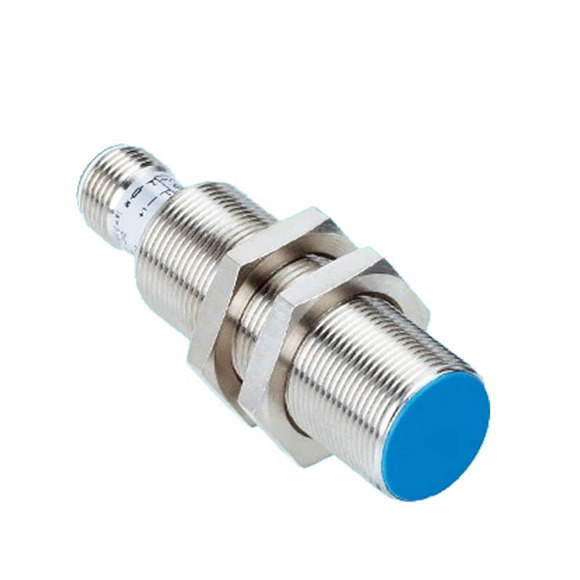

The SICK IM30-15NNS-ZC1 and IM30-15NUS-ZUX/-ZU0 are premium magnetic proximity sensors engineered for precise non-contact detection in industrial automation. These M30 threaded cylindrical sensors offer a 15 mm sensing range with non-flush mounting, making them suitable for applications requiring high accuracy and durability. With a robust AC/DC 2-wire design, they deliver consistent NO output across a wide supply voltage range of 20 V to 250 V AC/DC. Their IP67 rating, combined with excellent shock and vibration resistance, ensures reliable operation in demanding environments like packaging, material handling, and machine tooling. The series connectable feature and power-up pulse protection enhance system flexibility and safety. Each sensor is 100% original and new, backed by SICK’s quality standards, and comes with two nickel-plated brass mounting nuts for straightforward installation.
| Parameter |
Specification |
| Housing Design |
Cylindrical thread design |
| Housing Type |
Standard |
| Thread Size |
M30 x 1.5 |
| Diameter |
Ø 30 mm |
| Sensing Range (Sn) |
15 mm |
| Installation Type |
Non-flush |
| Switching Frequency |
25 Hz (1); 30 Hz (2) |
| Connection Type |
Cable, 2-wire, 2 m |
| Output Function |
NO |
| Electrical Wiring |
AC/DC 2-wire |
| Enclosure Rating |
IP67 (3) |
| Special Characteristic |
Series connectable |
| Supply Voltage |
20 V AC/DC … 250 V AC/DC |
| Voltage Drop |
≤ 6.5 V |
| Time Delay Before Availability |
≤ 8 ms |
| Hysteresis |
1 % … 15 % |
| Reproducibility |
≤ 10 % (1)(2)(3) |
| Temperature Drift (of Sr) |
± 10 % |
| EMC Compliance |
EN 60947-5-2; EN 55011, Class B |
| Continuous Current (Ia) |
≤ 200 mA |
| Off-State Current |
≤ 4 mA |
| Minimum Load Current |
≥ 5 mA |
| Short-Time Withstand Current |
2.2 A (4) |
| Cable Material |
PVC |
| Conductor Size |
0.5 mm² |
| Short-Circuit Protection |
– (5) |
| Power-Up Pulse Protection |
✔ |
| Shock and Vibration Resistance |
30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient Operating Temperature |
–25 °C … +70 °C |
| Housing Material |
Brass, nickel-plated |
| Sensing Face Material |
Plastic, PBT |
| Housing Length |
81 mm |
| Thread Length |
44 mm |
| Tightening Torque, Max. |
≤ 50 Nm |
| Items Supplied |
Mounting nut, brass, nickel-plated (2x) |
| Protection Class |
II |
| Rated Insulation Voltage (Ui) |
250 V AC |
| Usage Category |
AC-140 (6); DC-13 (7) |
| Contamination Rating |
3 |
| Rated Impulse Withstand Voltage |
4 kV |
Notes: (1) AC supply; (2) DC supply; (3) According to EN 60529; (4) Duration 1 s; (5) Not available; (6) AC usage; (7) DC usage.
