Sick IME08-04NNSZW2S Magnetic Proximity Sensor

Series#: Sick

Product Details

SICK IME08-04NNSZW2S / IME08-04NPSZW2S – High-performance M8 magnetic proximity sensors for precise industrial automation.
Non-flush installation with a 4 mm sensing range (Sn) and 3.24 mm safe sensing range (Sa).
Fast 4,000 Hz switching frequency ensures rapid response in high-speed applications.
Robust IP67-rated cylindrical brass housing with nickel plating, ideal for harsh environments.
DC 3-wire cable connection (2m, PVC) with NPN normally open output for easy integration.
Built-in short-circuit, reverse polarity, and power-up pulse protection for reliable operation.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The SICK IME08-04NNSZW2S and IME08-04NPSZW2S are compact M8 inductive proximity sensors engineered for precise non-flush detection in confined spaces. With a 4 mm sensing range and a rapid 4,000 Hz switching frequency, these sensors excel in high-speed automation tasks such as part presence detection, positioning, and counting. Their rugged nickel-plated brass housing and IP67 rating ensure durability in wet, dusty, or vibration-prone environments. The 2-meter PVC cable with NPN normally open output simplifies wiring in DC control systems. Each unit is 100% original, factory-new, and ready for prompt global delivery, backed by comprehensive protection features for long-term reliability.

Parameter	Specification
Housing	Cylindrical thread design, Standard
Thread size	M8 x 1
Diameter	Ø 8 mm
Sensing range Sn	4 mm
Safe sensing range Sa	3.24 mm
Installation type	Non-flush
Switching frequency	4,000 Hz
Connection type	Cable, 3-wire, 2 m
Switching output	NPN
Output function	Normally open (NO)
Electrical wiring	DC 3-wire
Enclosure rating	IP67
Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2 V
Current consumption	10 mA
Time delay before availability	≤ 100 ms
Hysteresis	5 % … 15 %
Reproducibility	≤ 2 %
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 200 mA
Cable material	PVC
Conductor size	0.25 mm²
Cable diameter	Ø 3.9 mm
Short-circuit protection	✔
Reverse polarity protection	✔
Power-up pulse protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 Hz … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +75 °C
Housing material	Brass, nickel-plated
Sensing face material	Plastic, PA 66
Housing length	52 mm
Thread length	30 mm
Tightening torque, max.	≤ 5 Nm

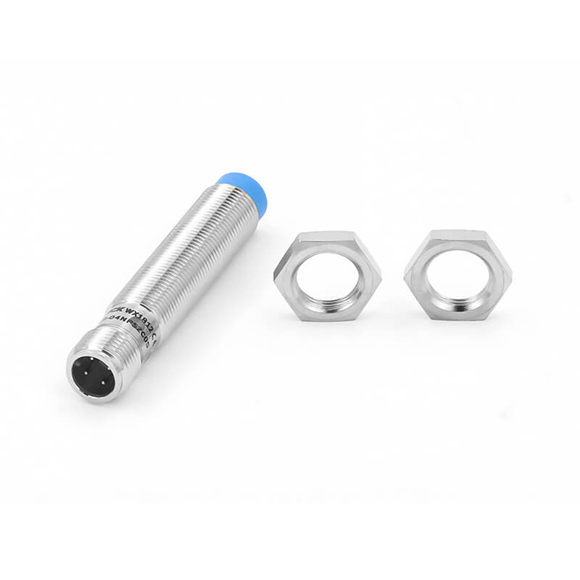

Items supplied	Mounting nut, brass, nickel-plated (2x)
UL File No.	NRKH.E181493
