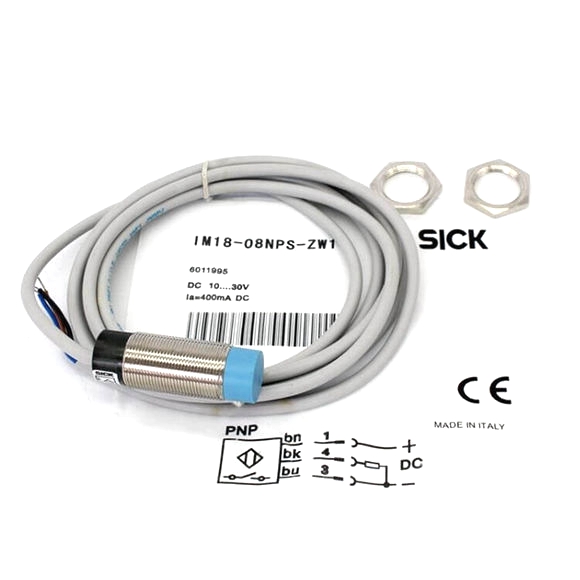

Sick IM18-08NNS-ZW1 Magnetic Proximity Sensor

Series#: Sick

Product Details

High-performance SICK IM18-08NNS-ZW1 and IM18-08NPS-ZW1 magnetic proximity sensors for reliable object detection in industrial environments.
Compact M18 x 1 cylindrical threaded housing (Ø 18 mm) with non-flush installation for flexible mounting options.
8 mm sensing range with NPN normally open (NO) output, ideal for DC 3-wire control systems.
Robust IP67 enclosure rating and shock/vibration resistance (30 g, 11 ms) ensure long-term performance in harsh conditions.
Fast switching frequency of 600 Hz and short-circuit/reverse polarity protection for enhanced operational safety.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The SICK IM18-08NNS-ZW1 and IM18-08NPS-ZW1 are premium-grade magnetic proximity sensors engineered for precise, non-contact detection in automation and process control applications. These sensors feature a rugged M18 threaded cylindrical housing with a standard design, delivering a reliable 8 mm sensing range for non-flush installations. They operate on a DC 3-wire system with NPN switching output and normally open function, making them compatible with a wide range of PLCs and controllers. Built with nickel-plated brass housing and plastic sensing face, the IM18 series withstands demanding industrial environments, supported by IP67 protection and excellent EMC compliance to EN 60947-5-2. Whether for packaging, material handling, or machine tool monitoring, these sensors offer consistent performance with low hysteresis and high reproducibility.

Parameter	Specification
Housing Design	Cylindrical thread, standard
Thread Size	M18 x 1
Diameter	Ø 18 mm
Sensing Range (Sn)	8 mm
Installation Type	Non-flush
Switching Frequency	600 Hz
Connection Type	Cable, 3-wire, 2 m
Switching Output	NPN
Output Function	Normally Open (NO)
Electrical Wiring	DC 3-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage Drop	≤ 1 V
Current Consumption	20 mA
Time Delay Before Availability	≤ 100 ms
Hysteresis	2 % … 10 %
Reproducibility	≤ 2 %
Temperature Drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous Current (Ia)	≤ 400 mA
Cable Material	PVC
Conductor Size	0.34 mm²
Short-Circuit Protection	✔
Reverse Polarity Protection	✔
Power-Up Pulse Protection	✔
Shock Resistance	30 g, 11 ms
Vibration Resistance	10 … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +70 °C
Housing Material	Brass, Nickel-plated
Sensing Face Material	Plastic
Housing Length	50 mm
Thread Length	32 mm
Tightening Torque, Max.	30 Nm
