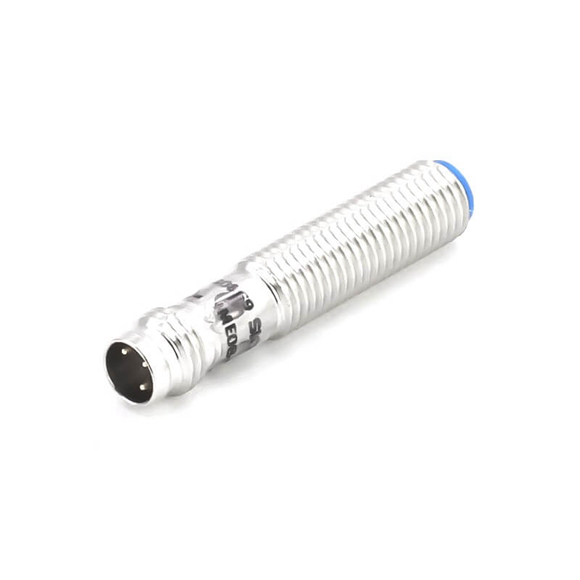

The SICK IME08-02BNOZTOK and IME08-02BNOZT0S are premium-grade inductive proximity sensors designed for precise metal object detection in automation systems. These M8 x 1 threaded sensors feature a 2 mm flush sensing range (safe sensing range 1.62 mm) and operate on 10–30 V DC with an NPN normally closed output. With a switching frequency of 4,000 Hz, IP67 enclosure rating, and robust nickel-plated brass housing, they deliver consistent performance in demanding conditions. The sensors include comprehensive protection features and are supplied with two mounting nuts.
| Parameter |
Specification |
| Housing Type |
Cylindrical thread design, short-body |
| Thread Size |
M8 x 1 |
| Diameter |
Ø 8 mm |
| Sensing Range (Sn) |
2 mm |
| Safe Sensing Range (Sa) |
1.62 mm |
| Installation Type |
Flush |
| Switching Frequency |
4,000 Hz |
| Connection Type |
Connector M8, 3-pin |
| Switching Output |
NPN |
| Output Function |
NC (Normally Closed) |
| Electrical Wiring |
DC 3-wire |
| Enclosure Rating |
IP67 |
| Supply Voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 10% |
| Voltage Drop |
≤ 2 V |
| Current Consumption |
10 mA |
| Time Delay Before Availability |
≤ 100 ms |
| Hysteresis |
5% … 15% |
| Reproducibility |
≤ 2% |
| Temperature Drift (of Sr) |
± 10% |
| EMC |
According to EN 60947-5-2 |
| Continuous Current (Ia) |
≤ 200 mA |
| Short-Circuit Protection |
✔ |
| Reverse Polarity Protection |
✔ |
| Power-Up Pulse Protection |
✔ |
| Shock and Vibration Resistance |
30 g, 11 ms / 10 Hz … 55 Hz, 1 mm |
| Ambient Operating Temperature |
–25 °C … +75 °C |
| Housing Material |
Brass, nickel-plated |
| Sensing Face Material |
Plastic, PA 66 |
| Housing Length |
41 mm |
| Thread Length |
25 mm |
| Tightening Torque, Max. |
≤ 5 Nm |

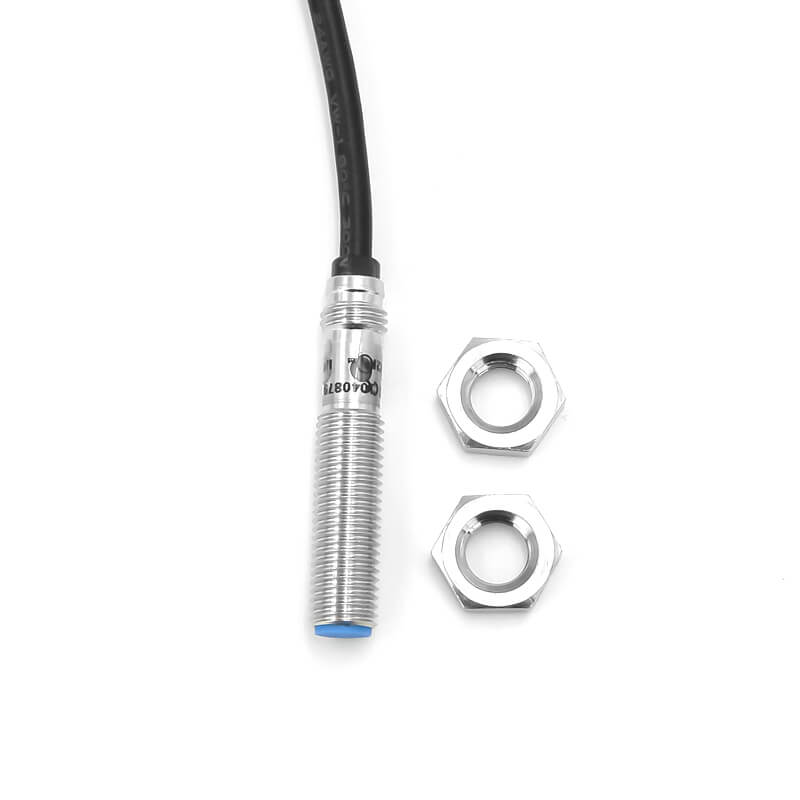

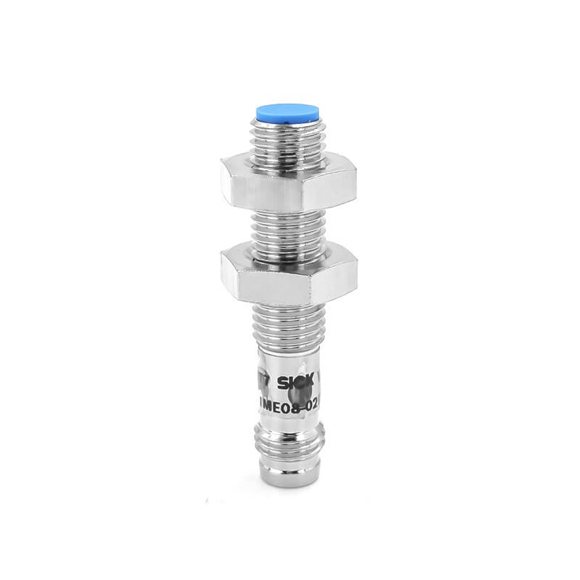

| Items Supplied |
Mounting nut, brass, nickel-plated (2x) |
| UL File No. |
NRKH.E181493 |
