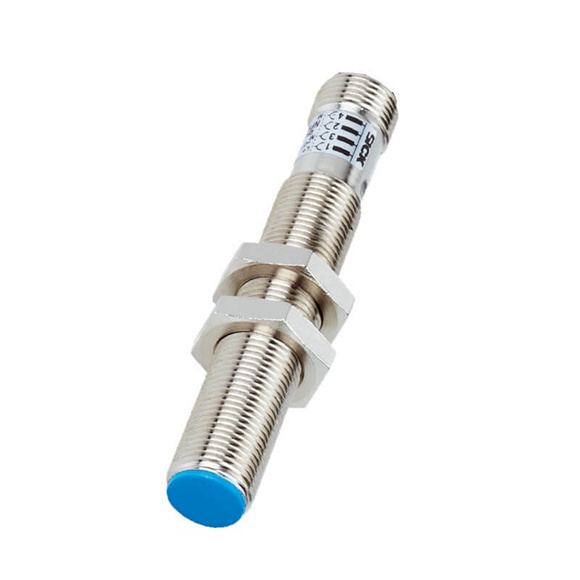

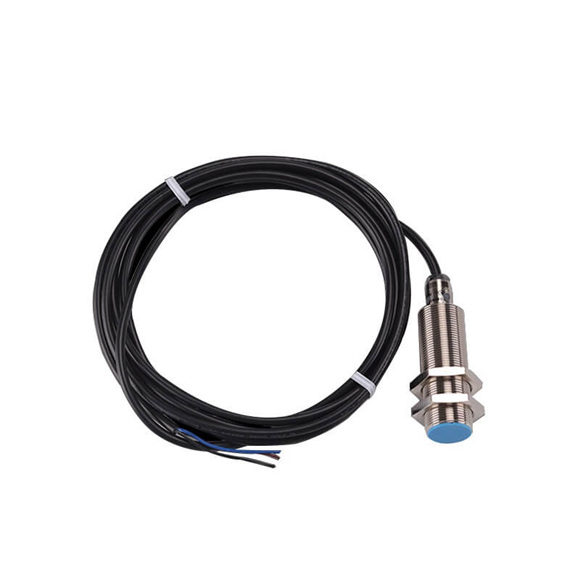

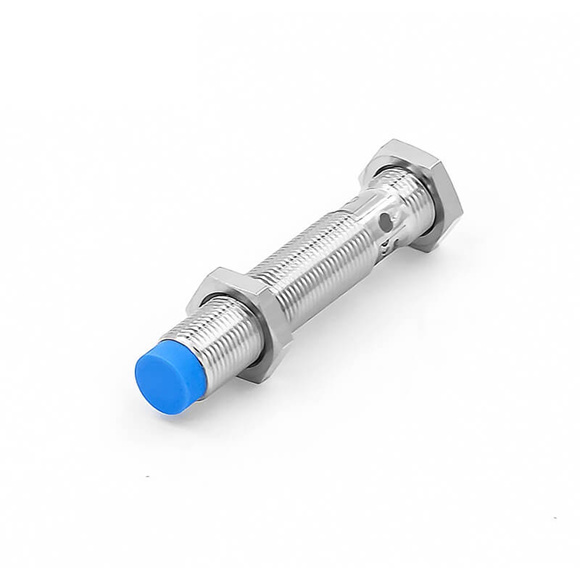

Sick IM12-04NNS-ZT1 Magnetic Proximity Sensor

Series#: Sick

Product Details

SICK IM12-04NNS-ZT1 and IM12-04NNS-ZUK – High-performance magnetic proximity sensors for precise non-flush sensing.
Compact M12 x 1 cylindrical thread design, short-body housing for space-constrained installations.
4 mm sensing range with 2,000 Hz switching frequency for reliable detection.
NPN normally open (NO) output, DC 3-wire, with 2 m PUR/PVC cable connection.
Rugged IP67 rating, nickel-plated brass housing, and broad temperature range (-25°C to +75°C).
Integrated protections: short-circuit, reverse polarity, wire-break, and power-up pulse.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The SICK IM12-04NNS-ZT1 and IM12-04NNS-ZUK magnetic proximity sensors are engineered for demanding industrial automation environments, offering a robust solution for non-flush mounting with a 4 mm sensing range. These sensors feature a compact M12 x 1 cylindrical thread design with a short-body housing, making them ideal for tight spaces. With a 2,000 Hz switching frequency and an NPN normally open output, they ensure rapid and reliable detection in applications like position sensing, object counting, and conveyor control. Built with a nickel-plated brass housing and IP67 rating, they withstand harsh conditions, while the 2 m PUR/PVC cable provides flexible installation. The IM12-04NNS-ZT1 and IM12-04NNS-ZUK are 100% original and new, backed by SICK’s precision engineering, and include comprehensive protection features for long-term durability.

Parameter	Specification
Housing	Cylindrical thread design, short-body
Thread size	M12 x 1
Diameter	Ø 12 mm
Sensing range Sn	4 mm
Installation type	Non-flush
Switching frequency	2,000 Hz
Connection type	Cable, 3-wire, 2 m
Switching output	NPN
Output function	Normally open (NO)
Electrical wiring	DC 3-wire
Enclosure rating	IP67 (per IEC 60529)
Supply voltage	10 V DC to 30 V DC
Ripple	≤ 10% (of supply voltage)
Voltage drop	≤ 1.5 V (at Ia)
Current consumption	10 mA (without load)
Time delay before availability	≤ 2 ms
Hysteresis	1% to 10%
Reproducibility	≤ 1% (of Sr, at constant temperature and voltage)
Temperature drift (of Sr)	± 10%
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 300 mA
Cable material	PUR/PVC
Conductor size	0.25 mm²
Wire-break protection	Yes
Short-circuit protection	Yes
Reverse polarity protection	Yes
Power-up pulse protection	Yes
Shock and vibration resistance	30 g, 11 ms / 10 to 55 Hz, 1 mm
Ambient operating temperature	-25°C to +75°C
Housing material	Brass, nickel-plated
Sensing face material	Plastic
Housing length	35 mm
Thread length	30 mm
Tightening torque, max.	7 Nm
