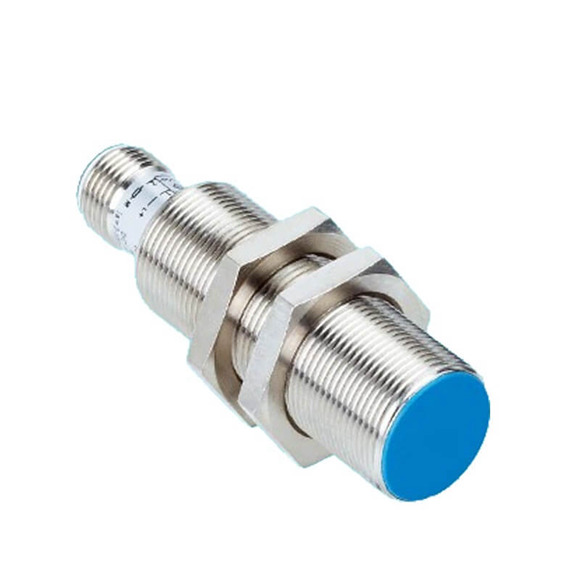

The SICK IM30-20BPS-VC1, IM30-20BNS-NC1, and IM30-20NNS-ZC1 magnetic proximity sensors are engineered for the most demanding hygienic and washdown environments. Featuring a flush-mountable M30 x 1.5 stainless steel V4A housing, these units deliver a triple sensing range of 20 mm with exceptional repeatability and temperature stability. Their IP68/IP69K protection, combined with resistance to aggressive cleaning agents, makes them ideal for food, beverage, and pharmaceutical applications. Each sensor includes a visual adjustment indicator for precise alignment and troubleshooting, ensuring reliable operation in harsh conditions.
| Parameter |
Specification |
| Housing |
Cylindrical thread design |
| Thread size |
M30 x 1.5 |
| Diameter |
Ø 30 mm |
| Sensing range Sn |
20 mm |
| Safe sensing range Sa |
16.2 mm |
| Installation type |
Flush |
| Switching frequency |
100 Hz |
| Connection type |
Male connector M12, 4-pin |
| Switching output |
NPN |
| Output function |
NO |
| Electrical wiring |
DC 3-wire |
| Enclosure rating |
IP68, IP69K |
| Special features |
Sensing face made of stainless steel V4A, Resistant to cleaning agents, triple sensing range, Visual adjustment indicator |
| Special applications |
Hygienic and washdown zones, Difficult application conditions |
| Supply voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 20 % |
| Voltage drop |
≤ 2 V |
| Current consumption |
10 mA |
| Time delay before availability |
≤ 40 ms |
| Hysteresis |
1 % … 15 % |
| Reproducibility |
≤ 5 % |
| Temperature drift (of Sr) |
≤ 10 % |
| EMC |
According to EN 60947-5-2 |
| Continuous current Ia |
≤ 200 mA |
| Short-circuit protection |
Yes |
| Reverse polarity protection |
Yes |
| Power-up pulse protection |
Yes |
| Shock and vibration resistance |
30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature |
–25 °C … +85 °C |
| Housing material |
Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Sensing face material |
Stainless steel V4A, DIN 1.4404 / AISI 316L |
| Housing length |
63.5 mm |
| Thread length |
42 mm |
| Tightening torque, max. |
≤ 150 Nm |
| Items supplied |
Mounting nut, V4A stainless steel (2x); Washer, V4A stainless steel, with locking teeth (2x) |
| Protection class |
III |
| UL File No. |
E191603 |
