Sick Magnetic Proximity Sensor IM30-15NDS-ZC1

Series#: Sick

Product Details

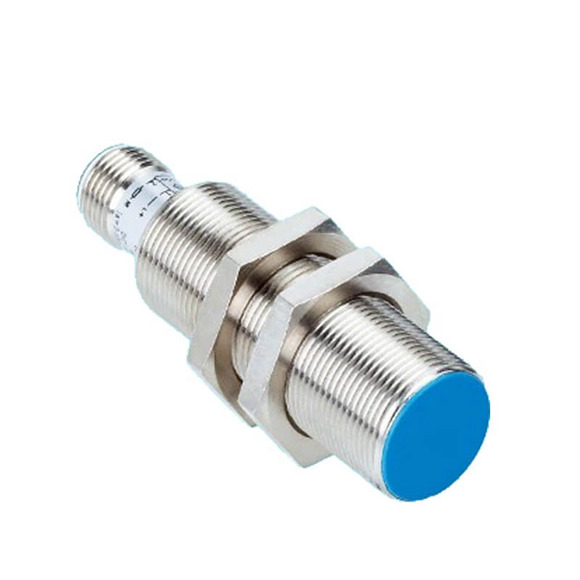

SICK MAGNETIC PROXIMITY SENSORS IM30-15NDS-ZC1/-ZW1 and IM30-15NPS-ZW1/-ZC1 – robust M30 cylindrical thread design for reliable proximity detection.
Non-flush installation with 15 mm sensing range (Sn) and 12.15 mm safe sensing range (Sa).
DC 2-wire, normally open (NO) output with M12 4-pin male connector for easy integration.
High switching frequency of 150 Hz and IP67 enclosure rating for harsh industrial environments.
Wide supply voltage range (10–30 V DC) with built-in short-circuit and reverse polarity protection.
Durable brass housing with nickel-plated finish and plastic sensing face, rated for -25°C to +70°C operation.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SICK IM30-15NDS-ZC1/-ZW1 and IM30-15NPS-ZW1/-ZC1 magnetic proximity sensors are engineered for demanding automation tasks requiring precise, non-contact detection. These M30 x 1.5 threaded cylindrical sensors offer a 15 mm nominal sensing range (Sn) with a safe sensing range (Sa) of 12.15 mm, ensuring reliable performance even in tight spaces. Designed for non-flush mounting, they deliver consistent switching at up to 150 Hz, making them ideal for high-speed production lines. The DC 2-wire normally open (NO) output simplifies wiring, while the M12 4-pin male connector provides a secure and standardized interface. With an IP67 rating, these sensors withstand dust, moisture, and washdown conditions. Operating on 10–30 V DC with ripple tolerance ≤10%, they include short-circuit and reverse polarity protection for robust field use. The brass housing, nickel-plated for corrosion resistance, and plastic sensing face offer durability in temperatures from -25°C to +70°C. Backed by 100% original and new quality, these sensors are available for immediate shipment to support your control system needs.

Parameter	Specification
Housing Design	Cylindrical thread design, standard
Thread Size	M30 x 1.5
Diameter	Ø 30 mm
Sensing Range (Sn)	15 mm
Safe Sensing Range (Sa)	12.15 mm
Installation Type	Non-flush
Switching Frequency	150 Hz
Connection Type	Male connector M12, 4-pin
Output Function	Normally open (NO)
Electrical Wiring	DC 2-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage Drop	≤ 2.8 V
Time Delay Before Availability	≤ 50 ms
Hysteresis	2 % … 10 %
Reproducibility	≤ 2 %
Temperature Drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous Current (Ia)	≤ 100 mA
Off-State Current	≤ 0.8 mA
Minimum Load Current	≥ 3 mA
Short-Circuit Protection	Yes
Reverse Polarity Protection	Yes
Shock and Vibration Resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +70 °C
Housing Material	Brass, nickel-plated brass
Sensing Face Material	Plastic
Housing Length	76 mm
Thread Length	38 mm
Tightening Torque, Max.	60 Nm
