Sick Magnetic Proximity Sensor IME08-02BPSZW2K

Series#: Sick

Product Details

Model: SICK IME08-02BPSZW2K and IME08-02BPSZW2S – high-precision M8 inductive proximity sensors for industrial automation.
Flush-mountable cylindrical short-body design (M8 x 1 thread, 43 mm length) for space-constrained installations.
2 mm nominal sensing range (Sn) with PNP normally open (NO) output, switching at 4,000 Hz for high-speed detection.
Robust IP67-rated brass housing with nickel plating, ensuring durability in harsh environments from -25°C to +75°C.
Built-in protection: short-circuit, reverse polarity, and power-up pulse protection for enhanced system reliability.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SICK IME08-02BPSZW2K and IME08-02BPSZW2S are premium inductive proximity sensors engineered for precise metal object detection in compact automation setups. Featuring a flush-mountable M8 x 1 thread and a short-body cylindrical housing (43 mm total length), these sensors deliver a 2 mm sensing range with exceptional switching frequency of 4,000 Hz, ideal for high-speed counting, positioning, and monitoring tasks. The PNP normally open output and DC 3-wire configuration simplify integration into 10-30 V DC control systems, while the IP67-rated, nickel-plated brass construction withstands industrial shock, vibration, and temperature extremes. Both models include integral protection circuits and a 2-meter PVC cable, making them reliable choices for packaging, robotics, and machine tool applications.

Parameter	Specification
Housing Type	Cylindrical thread design, short-body
Thread Size	M8 x 1
Diameter	Ø 8 mm
Sensing Range (Sn)	2 mm
Safe Sensing Range (Sa)	1.62 mm
Installation Type	Flush
Switching Frequency	4,000 Hz
Connection Type	Cable, 3-wire, 2 m
Switching Output	PNP
Output Function	Normally Open (NO)
Electrical Wiring	DC 3-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10%
Voltage Drop	≤ 2 V
Current Consumption	10 mA
Time Delay Before Availability	≤ 100 ms
Hysteresis	5% … 15%
Reproducibility	≤ 2%
Temperature Drift (of Sr)	± 10%
EMC	According to EN 60947-5-2
Continuous Current (Ia)	≤ 200 mA
Cable Material	PVC
Conductor Size	0.25 mm²
Cable Diameter	Ø 3.9 mm
Short-Circuit Protection	Yes
Reverse Polarity Protection	Yes
Power-Up Pulse Protection	Yes
Shock and Vibration Resistance	30 g, 11 ms / 10 Hz … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +75 °C
Housing Material	Brass, nickel-plated
Sensing Face Material	Plastic, PA 66
Housing Length	43 mm
Thread Length	25 mm
Tightening Torque, Max.	≤ 5 Nm

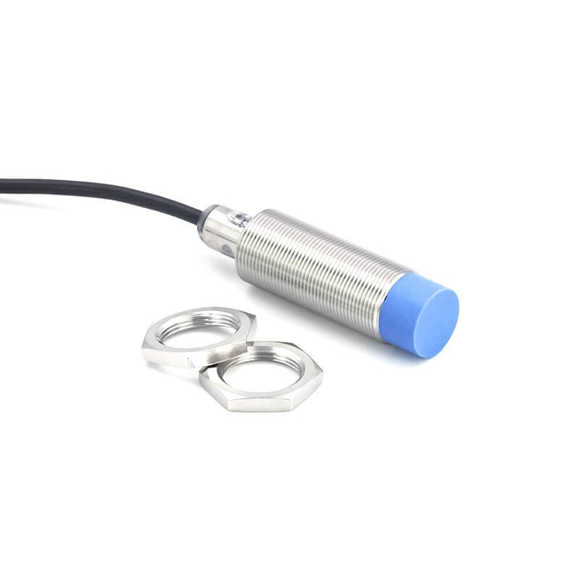

Items Supplied	Mounting nut, brass, nickel-plated (2x)
UL File No.	NRKH.E181493
