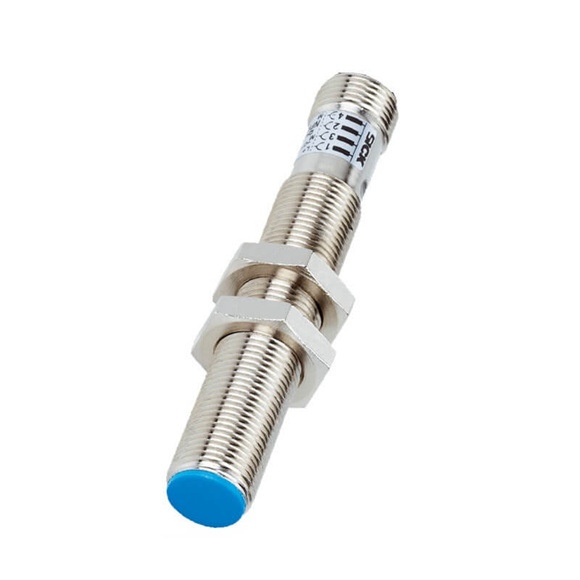

The SICK IM12-08NNS-ZW1 magnetic proximity sensor is a robust and reliable solution for non-contact position detection in automation systems. Designed with a compact M12 x 1 threaded housing and a non-flush installation type, it delivers an 8 mm sensing range with high switching frequency. This sensor is engineered for demanding applications requiring consistent performance, featuring advanced electrical protections and a durable nickel-plated brass enclosure. Ideal for use in packaging, material handling, and machine tool industries, the IM12-08NNS-ZW1 ensures precise and repeatable operation under varying environmental conditions.
| Parameter |
Specification |
| Housing Type |
Cylindrical thread design, Standard |
| Thread Size |
M12 x 1 |
| Diameter |
Ø 12 mm |
| Sensing Range Sn |
8 mm |
| Installation Type |
Non-flush |
| Switching Frequency |
1,000 Hz |
| Connection Type |
Cable, 3-wire, 2 m |
| Switching Output |
NPN |
| Output Function |
NO (Normally Open) |
| Electrical Wiring |
DC 3-wire |
| Enclosure Rating |
IP67 |
| Supply Voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 10% |
| Voltage Drop |
≤ 1.2 V |
| Current Consumption |
10 mA |
| Time Delay Before Availability |
≤ 100 ms |
| Hysteresis |
1% … 15% |
| Reproducibility |
≤ 5% |
| Temperature Drift (of Sr) |
± 10% |
| EMC |
According to EN 60947-5-2 |
| Continuous Current Ia |
≤ 200 mA |
| Cable Material |
PVC |
| Conductor Size |
0.22 mm² |
| Short-Circuit Protection |
Yes |
| Reverse Polarity Protection |
Yes |
| Power-Up Pulse Protection |
Yes |
| Shock and Vibration Resistance |
30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient Operating Temperature |
–25 °C … +70 °C |
| Housing Material |
Brass, Nickel-plated brass |
| Sensing Face Material |
Plastic |
| Housing Length |
50 mm |
| Thread Length |
35 mm |
| Tightening Torque, Max. |
10 Nm |
