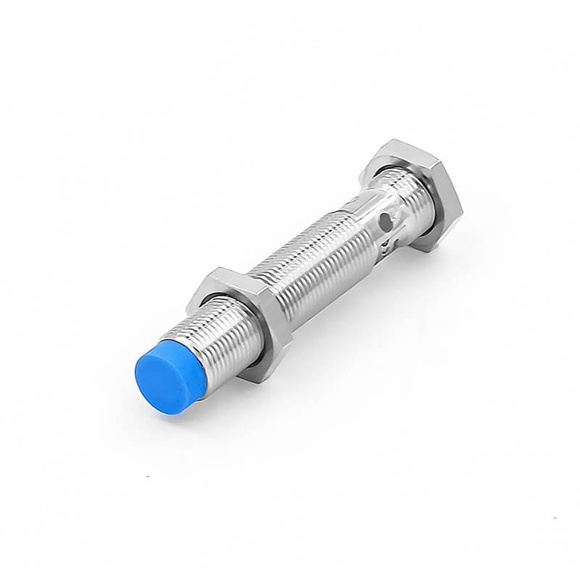

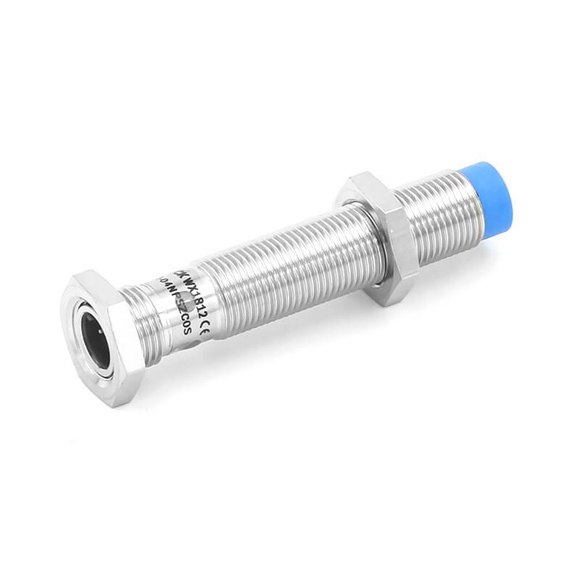

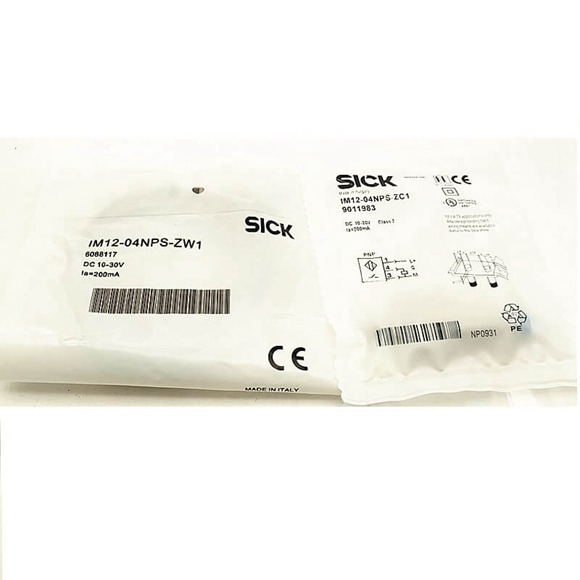

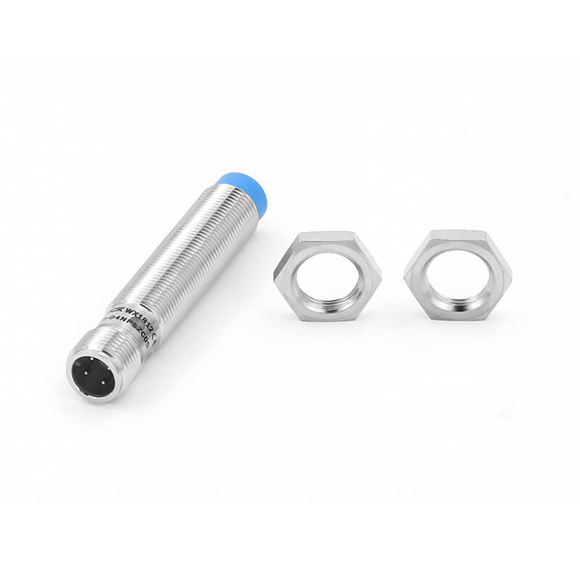

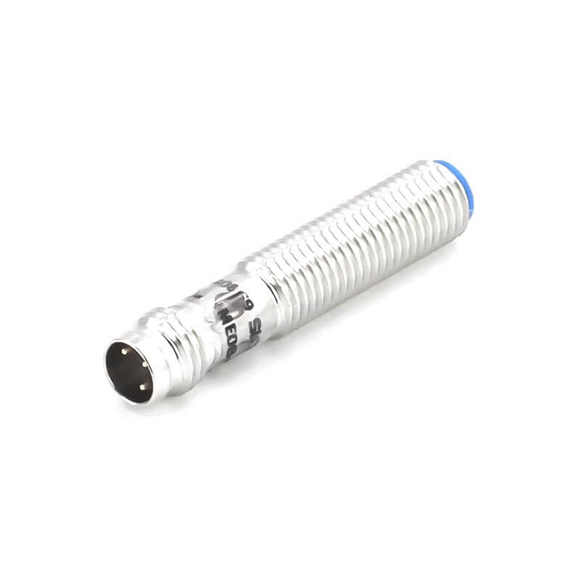

The SICK IME12-04NNS-ZW1 and IME12-04NPS-ZW1 are premium inductive proximity sensors engineered for demanding automation tasks. These M12 cylindrical sensors feature a non-flush design with a 4 mm sensing range, delivering consistent performance in metal detection applications. With a 2,000 Hz switching frequency and NPN normally open output, they excel in high-speed counting, positioning, and monitoring systems. The IP67-rated nickel-plated brass housing withstands dust, moisture, and mechanical stress, while the 2-meter PVC cable simplifies wiring. Whether you choose the IME12-04NNS-ZW1 or IME12-04NPS-ZW1, you get a reliable, maintenance-free solution backed by SICK’s precision engineering.
| Parameter |
Specification |
| Housing Design |
Cylindrical thread, standard |
| Thread Size |
M12 x 1 |
| Diameter |
Ø 12 mm |
| Sensing Range |
4 mm |
| Installation Type |
Non-flush |
| Switching Frequency |
2,000 Hz |
| Connection Type |
Cable, 3-wire, 2 m |
| Switching Output |
NPN |
| Output Function |
Normally Open (NO) |
| Electrical Wiring |
DC 3-wire |
| Supply Voltage |
10 V DC … 30 V DC |
| Ripple |
≤ 10% |
| Voltage Drop |
≤ 1.2 V |
| Current Consumption |
20 mA |
| Continuous Current |
≤ 200 mA |
| Time Delay Before Availability |
≤ 100 ms |
| Hysteresis |
2% … 10% |
| Reproducibility |
≤ 2% |
| Temperature Drift |
± 10% |
| EMC |
According to EN 60947-5-2 |
| Enclosure Rating |
IP67 |
| Short-Circuit Protection |
✔ |
| Reverse Polarity Protection |
✔ |
| Power-Up Pulse Protection |
✔ |
| Shock and Vibration Resistance |
30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient Operating Temperature |
–25°C … +70°C |
| Housing Material |
Brass, Nickel-plated |
| Sensing Face Material |
Plastic |
| Housing Length |
50 mm |
| Thread Length |
35 mm |
| Tightening Torque (Max) |
10 Nm |
| Cable Material |
PVC |
| Conductor Size |
0.22 mm² |
