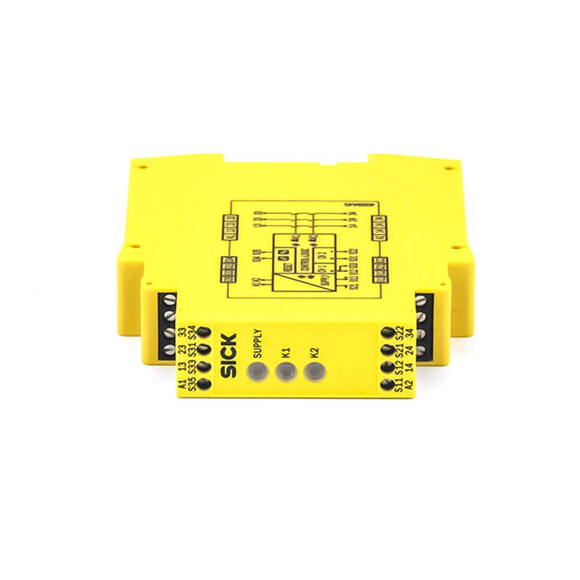

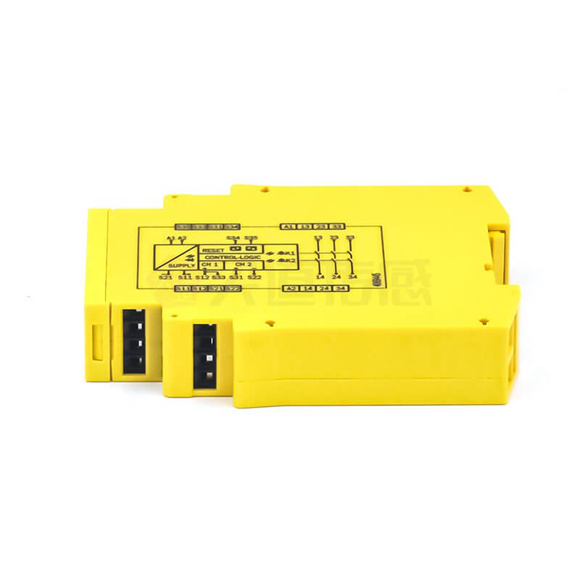

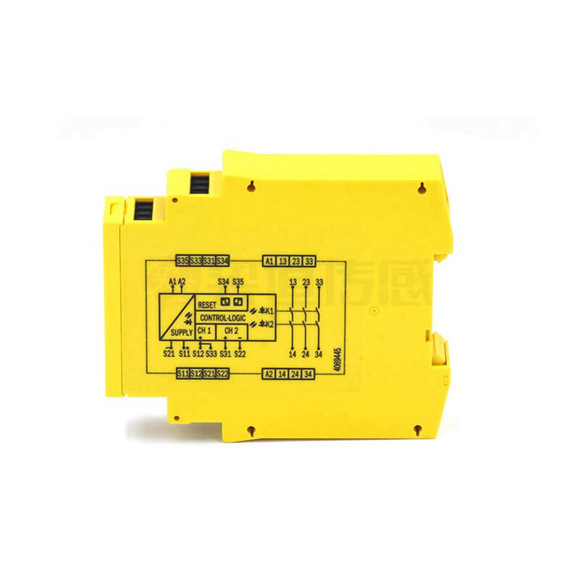

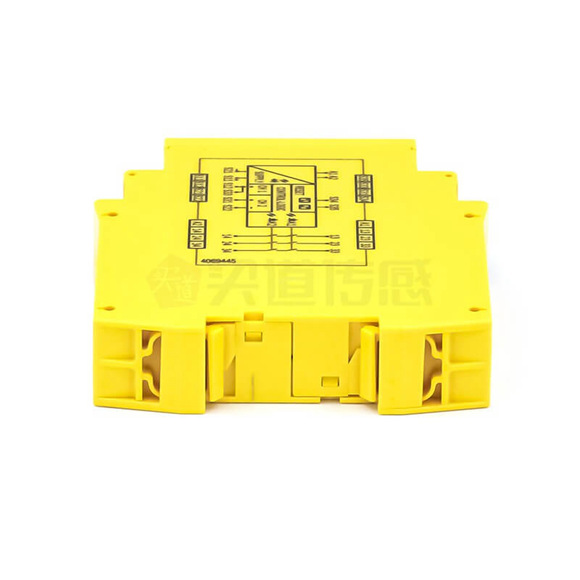

Sick Safety Relay UE48-2OS2D2

Series#: Sick

Product Details

Premium SICK SAFETY RELAYS UE48-2OS2D2/2OS3D2/3OS2D2/3OS3D2 series for highest machine safety compliance.
Certified to SIL3 (IEC 61508) and Category 4 / PL e (EN ISO 13849) for critical safety applications.
Up to 2 or 3 enabling current paths (N/O), relevant for safety, ensuring reliable dual-channel monitoring.
Low power consumption: ≤ 4.6 VA (AC) / ≤ 2.1 W (DC) with robust fixed screw terminals for secure wiring.
Mission time of 20 years and PFHD of 3.0 x 10⁻⁸ per hour, guaranteeing long-term performance.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SICK SAFETY RELAYS UE48-2OS2D2/2OS3D2/3OS2D2/3OS3D2 series represents a pinnacle of industrial safety technology, engineered to meet the most stringent global standards. These compact yet powerful relays are designed for emergency stop circuits, light curtains, and safety gates, providing up to three enabling current paths with SIL3/Category 4/PL e certification. Built for 20-year mission time and featuring electronic short-circuit protection, they deliver reliable, fail-safe operation in harsh automation environments. Whether you require 2 or 3 safety outputs, these models ensure seamless integration into your safety system with fixed screw terminals and low power consumption.

Parameter	Specification (UE48-2OS2D2/2OS3D2/3OS2D2/3OS3D2)
Safety Integrity Level	SIL3 (IEC 61508), SILCL3 (EN 62061)
Category	Category 4 (EN ISO 13849)
Performance Level	PL e (EN ISO 13849)
B10d Parameter	1.26 x 10⁶ switching cycles (AC-15, 230 V, I = 1.5 A) 5.9 x 10⁶ switching cycles (AC-15, 230 V, I = 0.75 A) 4.35 x 10⁵ switching cycles (DC-13, 24 V, I = 2.5 A) 1 x 10⁷ switching cycles (DC-13, 24 V, I = 0.63 A)
PFHD (Mean Probability of Dangerous Failure per Hour)	3.0 x 10⁻⁸ (EN ISO 13849)
Mission Time (TM)	20 years (EN ISO 13849)
Stop Category	0 (EN 60204-1)
Connection Type	Fixed screw terminals
Number of Enabling Current Paths (N/O)	2 (UE48-2OS2D2/2OS3D2) or 3 (UE48-3OS2D2/3OS3D2), relevant for safety
Residual Ripple	≤ 2.4 Vpp
Power Consumption	≤ 4.6 VA (AC models) / ≤ 2.1 W (DC models)
Overvoltage Category	II
Rated Insulation Voltage (Ui)	300 V AC
Rated Impulse Withstand Voltage (Uimp)	4 kV
Test Voltage	2 kV (50 Hz) (EN 60439-1)
Control Voltage	22 V DC (≥ 17.4 V DC)
Control Current	40 mA … 100 mA
Short-Circuit Current	≤ 300 mA (between S33 / S11 and S21)
Short-Circuit Protection	Electronic fuse
Galvanic Decoupling	– (between A1, A2 and S11, S21, S33)
