Sick Proximity Sensor IME08-02BPSZT0S

Series#: Sick

Product Details

High-performance SICK IME08-02BPSZT0S, IME08-02BPSZT0K, and IME08-02BPSZC0S inductive proximity sensors for precise object detection.
Compact M8 x 1 cylindrical threaded design with 2 mm flush sensing range, ideal for tight spaces.
Robust IP67-rated brass housing with nickel-plated finish, offering durability in harsh industrial environments.
PNP normally open (NO) output with 4,000 Hz switching frequency for high-speed applications.
DC 3-wire connection via M8 3-pin connector, simplifying installation and maintenance.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The SICK IME08-02BPSZT0S, IME08-02BPSZT0K, and IME08-02BPSZC0S are part of the renowned IME series of inductive proximity sensors, engineered for reliable non-contact detection of metallic objects in automation systems. These M8 cylindrical sensors feature a flush mounting design with a 2 mm sensing range, making them suitable for applications where space is limited. With a high switching frequency of 4,000 Hz and a PNP normally open output, they deliver fast and accurate switching in dynamic production lines. The robust brass housing, nickel-plated for corrosion resistance, and IP67 enclosure rating ensure dependable performance in demanding environments, from machine tools to packaging machinery.

Parameter	Specification
Housing Type	Cylindrical thread design, Standard
Thread Size	M8 x 1
Diameter	Ø 8 mm
Sensing Range (Sn)	2 mm
Safe Sensing Range (Sa)	1.62 mm
Installation Type	Flush
Switching Frequency	4,000 Hz

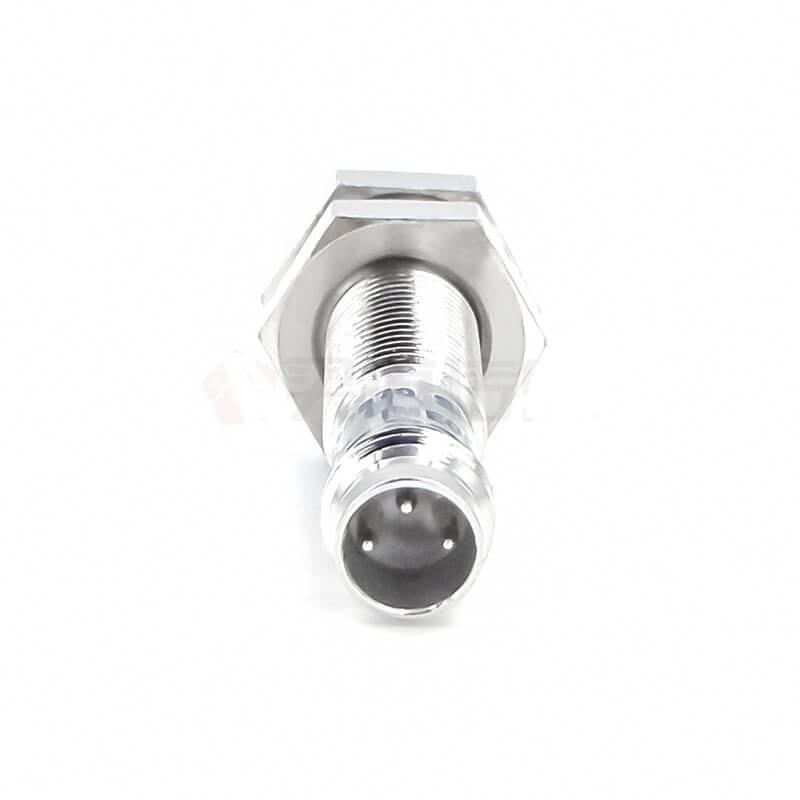

Connection Type	Connector M8, 3-pin
Switching Output	PNP
Output Function	Normally Open (NO)
Electrical Wiring	DC 3-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 10%
Voltage Drop	≤ 2 V
Current Consumption	10 mA
Time Delay Before Availability	≤ 100 ms
Hysteresis	5% … 15%
Reproducibility	≤ 2%
Temperature Drift (of Sr)	± 10%
EMC	According to EN 60947-5-2
Continuous Current (Ia)	≤ 200 mA
Short-Circuit Protection	Yes
Reverse Polarity Protection	Yes
Power-Up Pulse Protection	Yes
Shock and Vibration Resistance	30 g, 11 ms / 10 Hz … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +75 °C
Housing Material	Brass, nickel-plated
Sensing Face Material	Plastic, PA 66
Housing Length	50 mm
Thread Length	34 mm
Tightening Torque, Max.	≤ 5 Nm

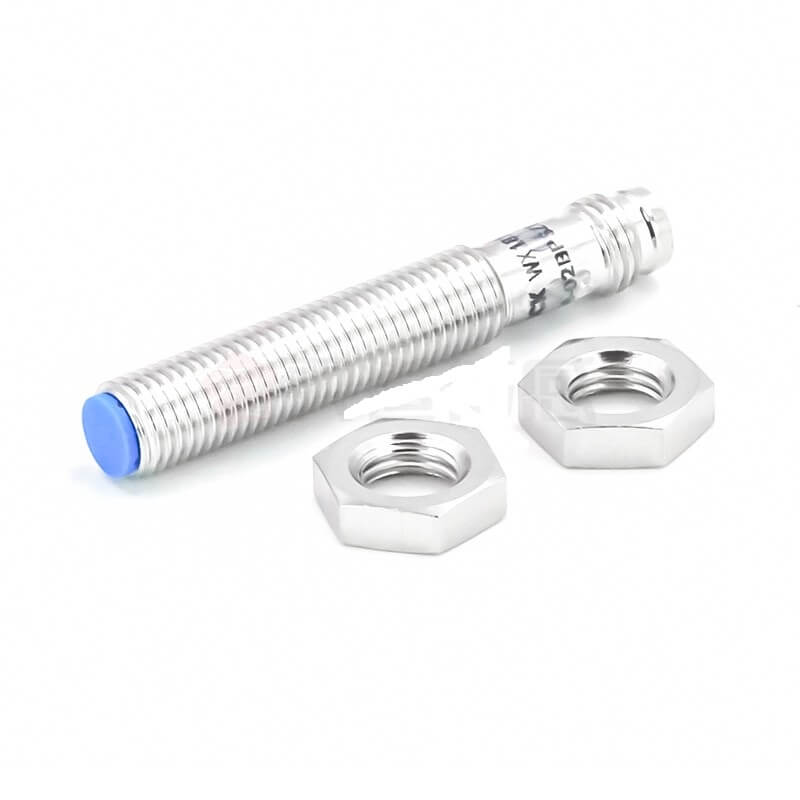

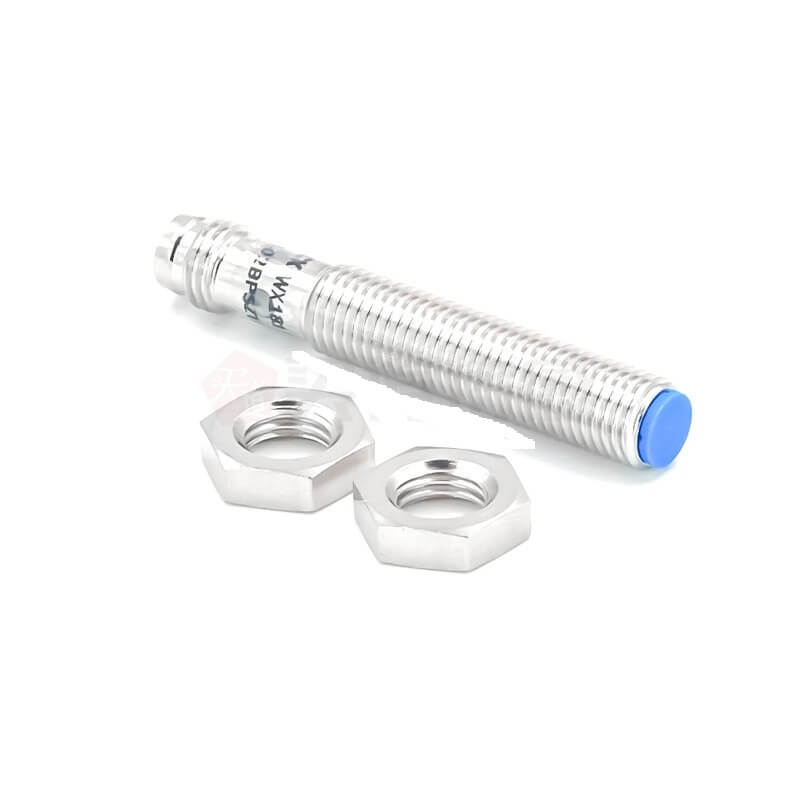

Items Supplied	Mounting nut, brass, nickel-plated (2x)
UL File No.	NRKH.E181493
