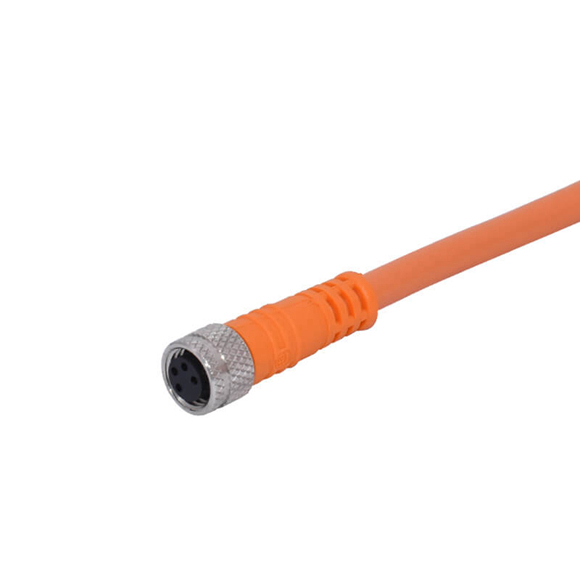

The SICK DOL-0804-G02M is a robust plug connector cable engineered for demanding industrial applications, particularly in hygienic and washdown zones. This M8, 4-pin, straight female connector with flying leads provides a reliable, quick-connect solution for sensors and actuators in food processing, pharmaceutical, and other high-sanitation environments. Its PUR connector body and stainless steel locking nut ensure resistance to chemical cleaning agents (Ecolab approved), while the PVC cable jacket offers durability. With IP65/IP67/IP69K protection, the DOL-0804-G02M delivers uncompromising performance under harsh conditions, backed by UL and CSA certifications.
| Parameter |
Specification |
| Accessory Group |
Plug connectors and cables |
| Accessory Family |
Connecting cables |
| Connection Type Head A |
Female connector, M8, 4-pin, straight |
| Connection Type Head B |
Flying leads |
| Connection Type |
Flying leads |
| Connector Material |
PUR |
| Connector Color |
Blue |
| Locking Nut Material |
Stainless steel (V4A/1.4404) |
| Tightening Torque |
0.4 Nm |
| Width Across Flats |
10 mm |
| Cable |
2 m, 4-wire, PVC |
| Jacket Material |
PVC |
| Jacket Color |
Gray |
| Cable Diameter |
4.8 mm |
| Conductor Cross-Section |
0.25 mm² |
| Shielding |
Unshielded |
| Reference Voltage |
≤ 30 V |
| Rated Impulse Voltage |
0.8 kV |
| Current Loading |
4 A |
| Application |
Hygienic and washdown zones |
| Note |
Generally resistant to chemical cleaning agents (see ECOLAB). Do not use other cleaning agents. Not resistant against lactic acid & hydrogen peroxide (H2O2). |
| Authorizations |
Ecolab, CSA approval, UL |
| UL File No. |
CYJV.E335179 |
| Enclosure Rating |
IP65 / IP67 / IP69K |
