Sick Sensor Cable YG2A15-020VB5XLEAX

Series#: Sick

Product Details

High-performance SICK SENSOR CABLE YG2A15-020VB5XLEAX/-050VB5XLEAX/020UB5XLEAX/020UB5M2A15, designed for reliable sensor and actuator connectivity.

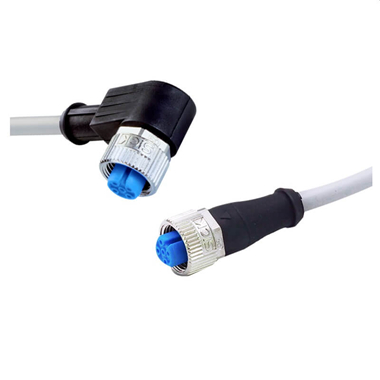

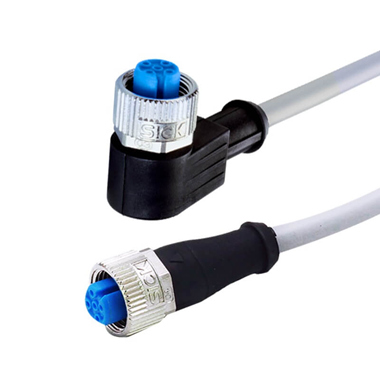

M12, 5-pin, angled female connector (A-coded) with screw locking for secure, vibration-resistant connections.
2-meter, 5-wire PVC cable with gray jacket, unshielded, suitable for chemical zones.
Rated for up to 125 V DC, 4 A current, with IP65/IP66K/IP67 enclosure rating for harsh environments.
CE and UL certified (UL File No. E335179), ensuring compliance with international standards.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The SICK SENSOR CABLE YG2A15-020VB5XLEAX/-050VB5XLEAX/020UB5XLEAX/020UB5M2A15 is a robust connecting cable engineered for industrial automation, offering a perfect blend of durability and performance. With a 2-meter cable length and a 5-wire configuration, this cable ensures reliable signal transmission for sensor and actuator applications, even in zones exposed to chemicals. Its M12, 5-pin, angled female connector with A-coding and screw locking provides a secure fit, while the TPU connector material and FKM seals enhance resistance to environmental stresses. Rated for 125 V DC and 4 A, the cable supports a wide range of automation tasks, backed by IP65/IP66K/IP67 protection and CE/UL approvals.

Parameter	Specification
Accessory Group	Plug connectors and cables
Accessory Family	Connecting cables
Connection Type Head A	Female connector, M12, 5-pin, angled, A-coded
Connection Type Head B	Flying leads
Locking Plug Connector	Screw connection
Connector Material	TPU
Connector Color	Black
Locking Nut Material	Zinc die-cast, nickel-plated
Seal Material	FKM
Tightening Torque	0.6 Nm
Width Across Flats	13 mm
Cable	2 m, 5-wire, PVC
Jacket Material	PVC
Jacket Color	Gray
Cable Diameter	5.2 mm
Conductor Cross-Section	0.34 mm²
Shielding	Unshielded
Reference Voltage	≤ 125 V DC
Rated Impulse Voltage	1.5 kV
Current Loading	4 A
Signal Type	Sensor/actuator cable
Application	Zones with chemicals
Authorizations	CE, UL
UL File No.	E335179
Enclosure Rating	IP65 / IP66K / IP67
