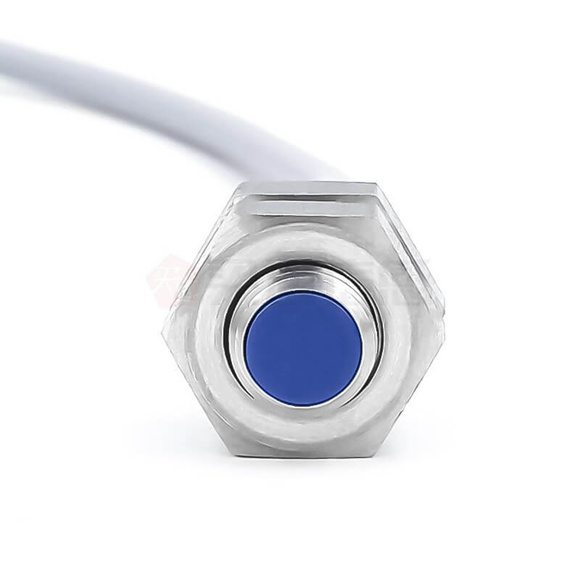

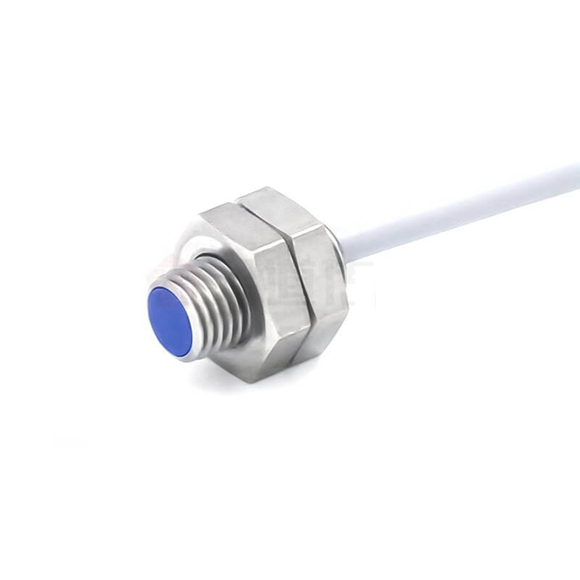

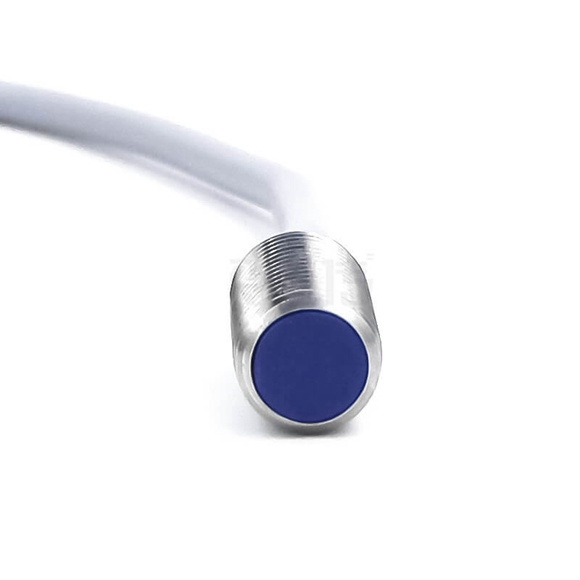

Sick Proximity Sensor IM08-1B5PS-ZWK

Series#: Sick

Product Details

SICK Proximity Sensors IM08-1B5PS-ZWK/-ZW1/-ZTK, IM08-1B5PS-ZWB/-ZUK/-ZT1/-ZC1 – High-performance M8 inductive sensors for precise flush-mount detection.
Compact short-body cylindrical thread design (M8 x 1) for space-constrained installations.
PNP normally open (NO) output with 1.5 mm sensing range and 5,000 Hz switching frequency.
Rugged brass housing with nickel plating, IP67 rating, and robust shock/vibration resistance.
Built-in short-circuit, reverse polarity, and power-up pulse protection for reliable DC operation.
Versatile cable connection options (2 m PVC, 3-wire) for easy integration.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The SICK Proximity Sensors IM08-1B5PS-ZWK/-ZW1/-ZTK, IM08-1B5PS-ZWB/-ZUK/-ZT1/-ZC1 are engineered for demanding industrial automation tasks where precision and durability are paramount. These M8 x 1 inductive sensors feature a flush-mountable design with a 1.5 mm sensing range, ensuring accurate detection of metallic targets even in tight spaces. With a PNP normally open output, 5,000 Hz switching frequency, and a wide 10-30 V DC supply range, they deliver fast, reliable performance in applications from packaging to machine tooling. The nickel-plated brass housing and IP67 enclosure rating provide excellent protection against dust, moisture, and mechanical stress, while integrated protections against short circuits, reverse polarity, and power-up pulses enhance system uptime. Whether used in robotic end-effectors or conveyor systems, these sensors offer consistent reproducibility and low hysteresis, backed by SICK's proven engineering.

Parameter	Specification
Housing Design	Cylindrical thread, short-body
Thread Size	M8 x 1
Diameter	Ø 8 mm
Sensing Range (Sn)	1.5 mm
Safe Sensing Range (Sa)	1.22 mm
Installation Type	Flush
Switching Frequency	5,000 Hz
Connection Type	Cable, 3-wire, 2 m (PVC)
Switching Output	PNP
Output Function	Normally Open (NO)
Electrical Wiring	DC 3-wire
Enclosure Rating	IP67
Supply Voltage	10 V DC … 30 V DC
Ripple	≤ 20%
Voltage Drop	≤ 2 V
Current Consumption	10 mA
Time Delay Before Availability	≤ 10 ms
Hysteresis	≤ 10%
Reproducibility	≤ 5%
Temperature Drift (of Sr)	± 10%
EMC	According to EN 60947-5-2
Continuous Current (Ia)	≤ 200 mA
Cable Material	PVC
Conductor Size	0.14 mm²
Short-Circuit Protection	✔
Reverse Polarity Protection	✔
Power-Up Pulse Protection	✔
Shock and Vibration Resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient Operating Temperature	–25 °C … +70 °C
Housing Material	Brass, Nickel-plated
Sensing Face Material	Plastic
Housing Length	16 mm
Thread Length	16 mm
Tightening Torque, Max.	4 Nm
