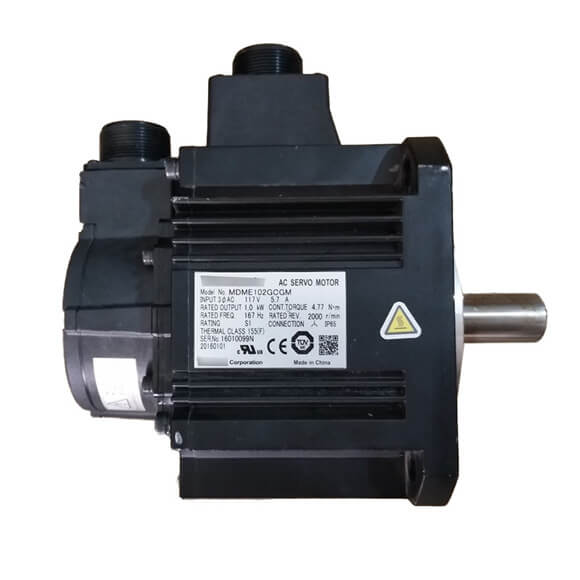

PANASONIC SERVO MOTOR MINAS A5 1KW MDME102GCG/MDME102GCGM – High-performance AC servo motor for precision motion control applications.
Rated output of 1.0 kW (1000W) with a rated torque of 4.77 Nm, ideal for demanding industrial tasks.
Equipped with a 20-bit incremental encoder (1,048,576 ppr) for ultra-high resolution feedback and smooth low-speed operation.
Compact design with a flange size of 80 mm square (standard), offering easy integration into existing machinery.
Built-in electromagnetic brake option (MDME102GCGM model) for holding torque during power-off conditions, enhancing safety and precision.
Compatible with Panasonic MINAS A5 series drives, supporting advanced tuning and real-time auto-gain adjustments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The PANASONIC SERVO MOTOR MINAS A5 1KW MDME102GCG/MDME102GCGM represents a pinnacle of industrial servo technology, engineered for applications requiring high dynamic response and precise positioning. This model, part of the renowned MINAS A5 family, delivers exceptional performance in CNC machinery, robotics, packaging equipment, and automated assembly lines. With its robust construction and advanced encoder feedback, it ensures reliable operation in harsh environments. The MDME102GCG variant is the standard model without a brake, while the MDME102GCGM includes a fail-safe electromagnetic brake for vertical axis or safety-critical applications. Both versions share identical electrical and mechanical specifications, providing flexibility for diverse system designs.

Parameter	Specification
Model Number	MDME102GCG / MDME102GCGM
Series	MINAS A5
Motor Type	AC Servo Motor (Permanent Magnet Synchronous)
Rated Output Power	1.0 kW (1000 W)
Rated Torque	4.77 Nm
Peak Torque	14.3 Nm
Rated Speed	2000 rpm
Maximum Speed	3000 rpm
Rated Current	4.4 A (rms)
Peak Current	13.2 A (rms)
Encoder Type	20-bit Incremental Encoder (1,048,576 ppr)
Encoder Resolution	1,048,576 pulses per revolution
Brake Option	MDME102GCG: No Brake / MDME102GCGM: With Electromagnetic Brake
Brake Holding Torque	4.77 Nm (for MDME102GCGM)
Flange Size (Square)	80 mm x 80 mm (standard)
Shaft Diameter	19 mm (with keyway and tapping)
Shaft Length	40 mm (including key)
Rotor Inertia	2.6 x 10^-4 kg·m²
Insulation Class	Class B (130°C)
Protection Rating	IP65 (excluding shaft end and connector)
Ambient Temperature Range	0°C to +40°C (operation)
Ambient Humidity	20% to 80% RH (non-condensing)
Vibration Resistance	10 to 55 Hz, amplitude 0.15 mm
Weight (without Brake)	Approx. 3.8 kg (MDME102GCG)
Weight (with Brake)	Approx. 4.5 kg (MDME102GCGM)
Connector Type	Standard round connector (MS3106A20-29S compatible)
Compatible Drive	Panasonic MINAS A5 Series Servo Drive (e.g., MBDDT2210, MADDT1205)
Feedback Cable	Standard 20-bit encoder cable (up to 20m length)
Certifications	CE, UL, RoHS
