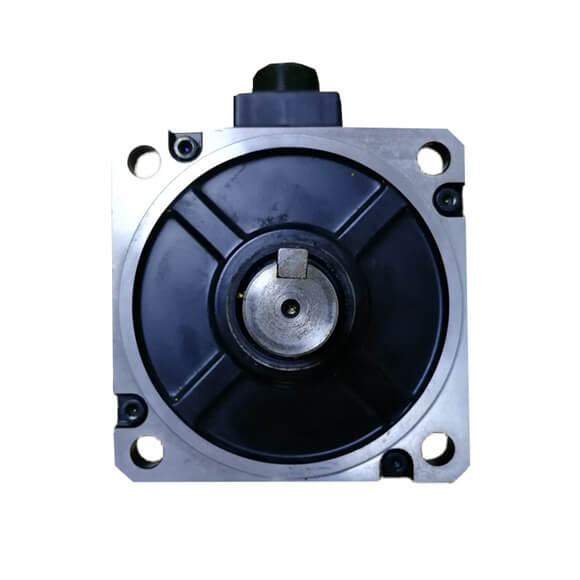

Panasonic MDME502GCH Servo Motor

Series#: Panasonic

Product Details

Model: PANASONIC SERVO MOTOR MINAS A5 5KW MDME502GCH / MDME502GCHM – High-performance AC servo motor for precision motion control.
Rated output of 5.0 kW with high torque density, ideal for demanding industrial automation applications.
Equipped with 20-bit incremental encoder for ultra-smooth, high-resolution position feedback.
Robust IP67-rated housing for dust and water resistance, ensuring reliability in harsh environments.
Compatible with Panasonic MINAS A5 series drives for seamless integration and optimized performance.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The PANASONIC SERVO MOTOR MINAS A5 5KW MDME502GCH / MDME502GCHM is a cornerstone of modern servo drive systems, engineered for high-speed, high-torque precision in packaging, robotics, and CNC machinery. This motor leverages Panasonic's advanced magnetic circuit design and a 20-bit incremental encoder to deliver exceptional accuracy and smooth operation across a wide speed range. Built with a rugged IP67-rated frame, it withstands dust, coolant, and vibration in factory floor environments. Whether deployed in a high-acceleration pick-and-place line or a constant-torque conveyor system, this model ensures reliable, maintenance-free performance. Below are the detailed technical specifications for the standard AC power models.

Parameter	Specification
Model Number	MDME502GCH / MDME502GCHM
Motor Type	AC Servo Motor (Permanent Magnet Synchronous)
Rated Output Power	5.0 kW
Rated Torque	23.8 N·m
Peak Torque	71.5 N·m
Rated Speed	2000 rpm
Maximum Speed	3000 rpm
Rated Current	16.0 A (AC models)
Peak Current	48.0 A (AC models)
Encoder Type	20-bit Incremental Encoder (Resolution: 1,048,576 pulses/rev)
Insulation Class	Class B (130°C)
Protection Rating	IP67 (Shaft end: IP65)
Ambient Temperature	0°C to +40°C (Operating), -20°C to +80°C (Storage)
Ambient Humidity	20% to 80% RH (Non-condensing)
Vibration Resistance	49 m/s² (5 to 200 Hz)
Mounting Method	Flange-mounted (Standard IEC 60034-7)
Brake Option	Optional (24V DC holding brake; check model suffix)
Weight	Approx. 12.5 kg
Drive Compatibility	Panasonic MINAS A5 Series (MADHT1505 or similar)
Certifications	CE, UL, RoHS

Note: The MDME502GCH and MDME502GCHM are identical in electrical and mechanical specifications; the "M" suffix typically denotes a modified shaft or connector version. Always verify with your drive system for exact compatibility.
