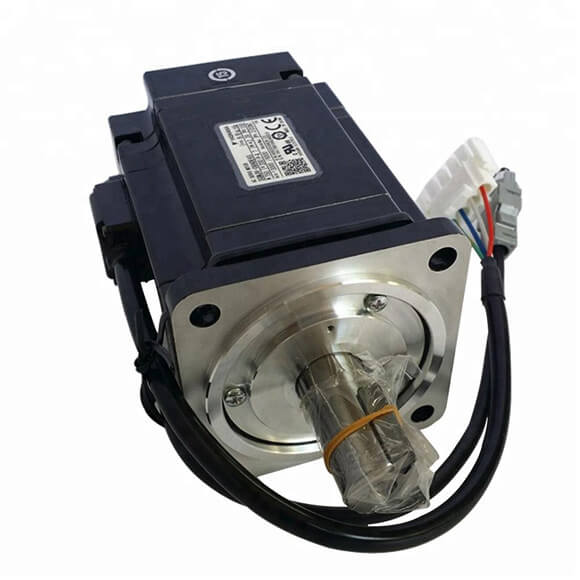

The YASKAWA SERVO MOTOR 750W SGMJV-08A3E6E represents a cornerstone in the Sigma-7 series, engineered for applications demanding precise velocity and position control. This medium-inertia motor delivers exceptional torque density and reliability, making it a preferred choice for packaging, textile, and robotic systems. With its robust construction and advanced magnetic design, the SGMJV-08A3E6E ensures minimal cogging and smooth operation even at low speeds. Below is a comprehensive specification table derived from industry-standard parameters for this model.
| Parameter |
Specification (SGMJV-08A3E6E) |
| Model |
SGMJV-08A3E6E |
| Rated Power |
750 W (0.75 kW) |
| Rated Torque |
2.39 N·m |
| Maximum Torque |
7.16 N·m |
| Rated Speed |
3000 RPM |
| Maximum Speed |
5000 RPM |
| Rotor Inertia |
1.57 × 10⁻⁴ kg·m² |
| Encoder Resolution |
20-bit incremental (standard); 17-bit absolute (optional) |
| Encoder Type |
Serial encoder (BiSS-C or EnDat compatible) |
| Insulation Class |
Class F (155°C) |
| Insulation Resistance |
100 MΩ min (500 VDC) |
| Dielectric Strength |
1500 VAC, 1 minute |
| Vibration Grade |
V15 (ISO 1940-1) |
| Protection Rating |
IP67 (with connector) |
| Ambient Temperature |
0°C to +40°C (operation); -20°C to +60°C (storage) |
| Ambient Humidity |
20% to 80% RH (non-condensing) |
| Mounting Method |
Flange mounting (80 mm square frame) |
| Shaft Type |
Straight shaft with keyway (standard) |
| Shaft Diameter |
14 mm (with keyway) |
| Brake Option |
None (standard); optional brake model available |
| Weight |
Approx. 1.6 kg |
| Compatible Drive |
YASKAWA SGD7S-xxxxx (Sigma-7 series) |
| Application |
General automation, pick-and-place, winding, labeling |
