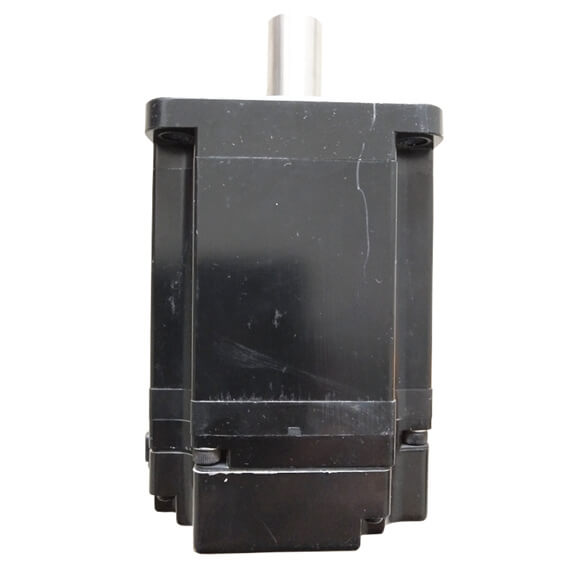

Yaskawa Servo Motor 750W SGMJV-08AAA21

Series#: Yaskawa

Product Details

YASKAWA SERVO MOTOR 750W SGMJV-08AAA21 – High-performance AC servo motor for precision motion control.
Rated output: 750W (0.75 kW) with 2.39 Nm rated torque and 7.16 Nm peak torque.
Built-in 20-bit incremental encoder (131072 pulses/rev) for ultra-smooth feedback.
Compact frame size (80 mm flange) with IP67 protection for harsh industrial environments.
Plug-and-play compatibility with Yaskawa Sigma-5 and Sigma-7 servo drives.
Low inertia design (0.667×10⁻⁴ kgm²) for rapid acceleration and deceleration cycles.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

Designed for demanding automation applications, the YASKAWA SERVO MOTOR 750W SGMJV-08AAA21 delivers exceptional torque density and dynamic response. This AC servo motor is part of the Sigma-5 series, optimized for high-speed pick-and-place, packaging, and CNC machinery. It features a rugged IP67-rated housing, a 20-bit absolute encoder for precise position feedback, and a low-inertia rotor to minimize settling time. Whether integrated with Yaskawa drives or third-party controllers, this motor ensures reliable, maintenance-free operation in continuous duty cycles.

Parameter	Value
Model	SGMJV-08AAA21
Rated Output Power	750 W (0.75 kW)
Rated Torque	2.39 Nm
Peak Torque	7.16 Nm
Rated Speed	3000 rpm
Maximum Speed	6000 rpm
Rotor Inertia	0.667 × 10⁻⁴ kg·m²
Encoder Type	20-bit incremental (131072 ppr)
Protection Class	IP67 (shaft end and connector)
Frame Size	80 mm flange (square)

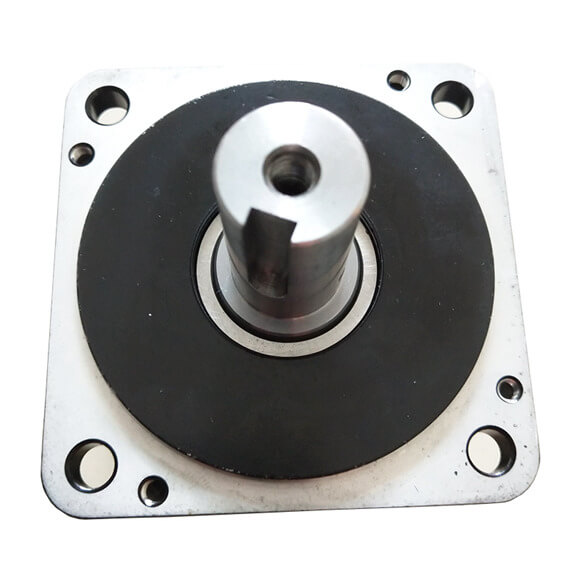

Shaft Type	Straight shaft with keyway (standard)
Brake Option	No brake (standard model)
Operating Voltage	AC 200 V (3-phase)
Insulation Class	Class B (130°C)
Ambient Temperature Range	0°C to 40°C
Weight	Approx. 3.5 kg
Compatible Drive Series	SGDV-5R5A01A (Sigma-5, 400 W to 750 W)
