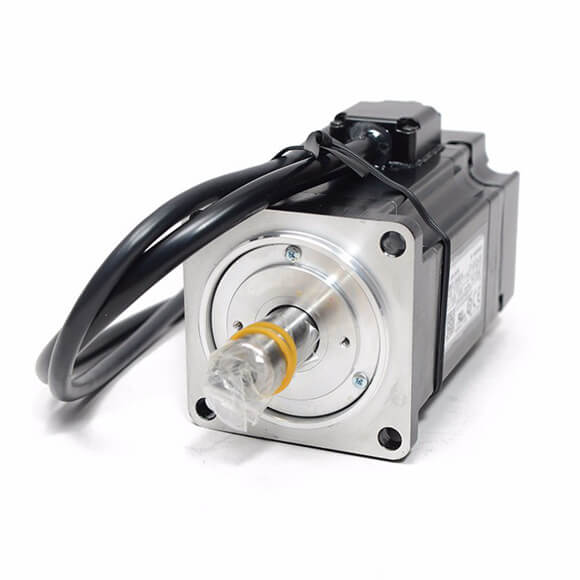

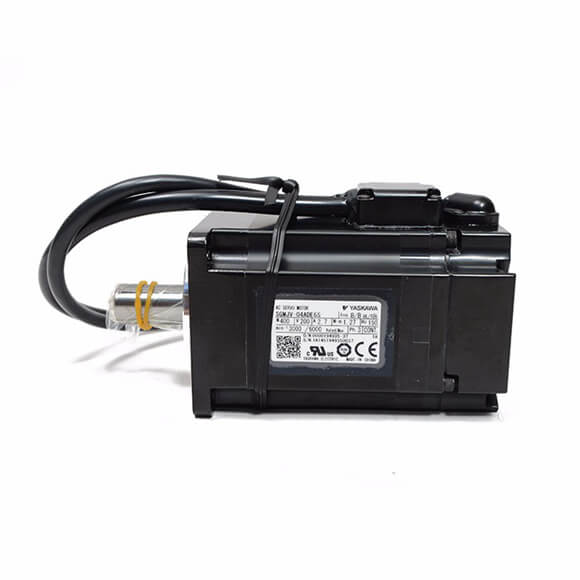

Yaskawa SGMJV-02ADE6S Servo Motor 200W

Series#: Yaskawa

Product Details

YASKAWA SERVO MOTOR 200W SGMJV-02ADE6S – High-performance AC servo motor for precision motion control.
Rated output of 200W (0.27 HP) with compact design for space-constrained applications.
Equipped with 17-bit absolute encoder for high-resolution feedback and accurate positioning.
Rated torque of 0.637 Nm and maximum torque of 1.91 Nm for reliable dynamic response.
Supports 3000 RPM rated speed and 6000 RPM maximum speed for versatile automation tasks.
Built with IP67 protection class, ensuring durability in harsh industrial environments.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The YASKAWA SERVO MOTOR 200W SGMJV-02ADE6S is a robust and precise AC servo motor designed for demanding industrial automation systems. This model, part of the Sigma-7 series, delivers exceptional torque density and smooth operation at speeds up to 6000 RPM. With a 200W power rating and a 17-bit absolute encoder, it ensures high-accuracy positioning and repeatability for applications like robotics, CNC machinery, and packaging equipment. The motor features a compact frame size (40 mm square) and is optimized for low-inertia, high-dynamic response. Its IP67-rated enclosure protects against dust and water ingress, making it suitable for wash-down or dusty environments.

Parameter	Specification
Model	YASKAWA SGMJV-02ADE6S
Series	Sigma-7
Power Rating	200 W (0.27 HP)
Rated Torque	0.637 Nm
Maximum Torque	1.91 Nm
Rated Speed	3000 RPM
Maximum Speed	6000 RPM
Encoder Type	17-bit Absolute (Serial)
Encoder Resolution	131,072 pulses/rev
Rotor Inertia	0.225 × 10⁻⁴ kg·m²
Protection Class	IP67
Insulation Class	Class F (155°C)
Voltage Type	AC 200 V (3-phase)
Current (Rated)	1.6 A
Current (Peak)	4.8 A
Ambient Temperature	0°C to 40°C
Ambient Humidity	20% to 80% RH (non-condensing)
Vibration Level	V15 (≤ 15 μm)
Mounting Flange	40 mm square (IEC 72-1)
Shaft Type	Keyed with oil seal
Weight	Approx. 1.2 kg
Brake Option	Without brake (standard)

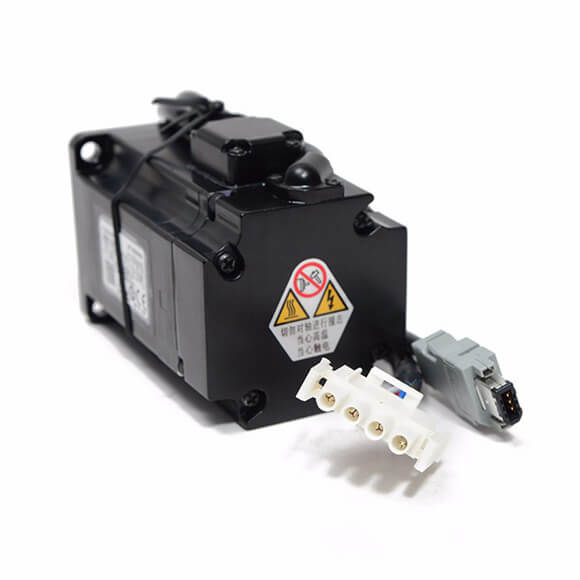

Connector Type	M23 circular (power + encoder)
Compatible Amplifier	YASKAWA SGD7S series (e.g., SGD7S-1R6A)
Standards	CE, UL, RoHS compliant
