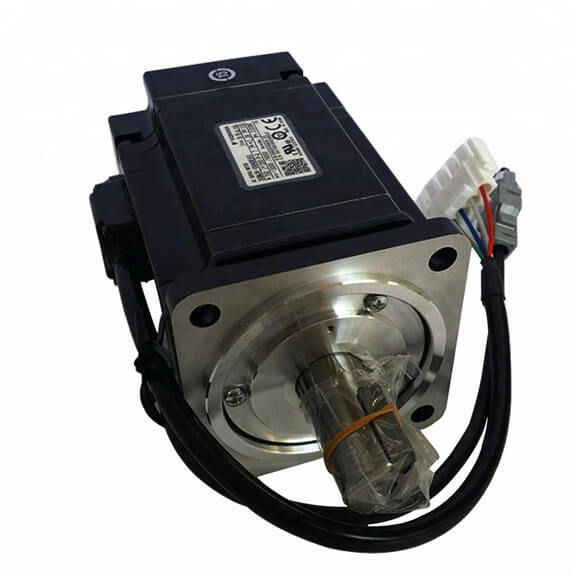

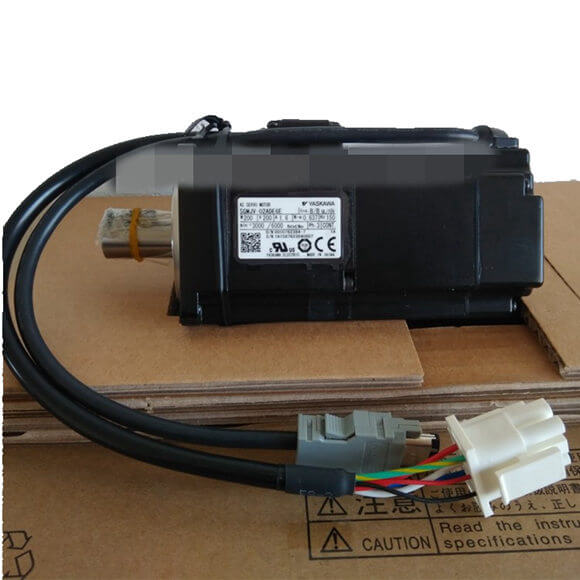

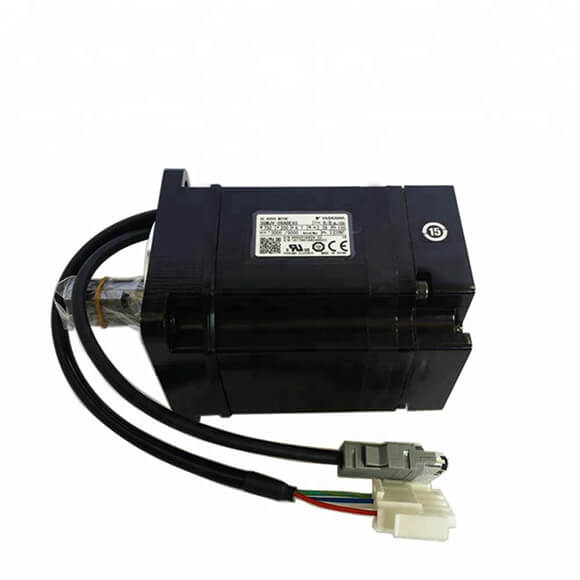

Yaskawa SGMJV-02ADE6E Servo Motor 200W

Series#: Yaskawa

Product Details

YASKAWA SERVO MOTOR 200W SGMJV-02ADE6E – High-precision AC servo motor for industrial automation.
Rated output of 200W (0.27 HP) with 0.637 Nm rated torque for compact motion control.
Equipped with a 20-bit incremental encoder (131,072 ppr) for ultra-smooth position feedback.
IP67 protection rating – Dust-tight and waterproof for harsh environments.
Low inertia design with 0.44×10⁻⁴ kgm² rotor inertia for rapid acceleration/deceleration.
Compatible with YASKAWA Sigma-5 and Sigma-7 series servo drives for plug-and-play integration.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The YASKAWA SERVO MOTOR 200W SGMJV-02ADE6E is a high-performance AC servo motor engineered for precision motion control in demanding industrial automation applications. Part of the Sigma-5 series, this 200W motor delivers exceptional torque density and dynamic response, making it ideal for robotics, packaging machinery, CNC machine tools, and assembly lines. With a built-in 20-bit absolute encoder, it ensures reliable position and speed control even at low speeds. The motor features a robust IP67 enclosure, allowing operation in dusty or wet environments without performance degradation. Its compact flange size and low rotor inertia enable high-speed cycling and precise positioning, while the standard keyed shaft and connector configuration simplify installation. Backed by YASKAWA’s advanced servo drive technology, the SGMJV-02ADE6E guarantees long-term reliability and seamless system integration for OEMs and system integrators worldwide.

Parameter	Specification
Model	YASKAWA SGMJV-02ADE6E
Motor Type	AC Servo Motor (Rotary, Permanent Magnet Synchronous)
Rated Output Power	200 W (0.27 HP)
Rated Torque	0.637 Nm (6.5 kgf·cm)
Peak Torque	1.91 Nm (19.5 kgf·cm)
Rated Speed	3000 min⁻¹ (RPM)
Maximum Speed	6000 min⁻¹ (RPM)
Rotor Inertia (J)	0.44 × 10⁻⁴ kg·m² (0.044 kg·cm²)
Encoder Type	20-bit Incremental Encoder (131,072 ppr, Serial Interface)
Encoder Resolution	1,310,720 pulses/rev (after 4x multiplication)
Protection Rating	IP67 (Shaft End and Connector)
Insulation Class	Class F (155°C)
Insulation Voltage	1500 VAC for 1 minute (Between windings and frame)
Insulation Resistance	10 MΩ or more (500 VDC megger)
Vibration Grade	V15 (≤15 μm displacement)
Mounting Flange Size	40 mm (Square flange, IEC standard)
Shaft End	Keyed shaft with key (Standard, without oil seal)
Connector Type	Standard round connector (Power + Encoder)
Brake	Without brake (Standard model)
Operating Temperature	0°C to 40°C (Ambient)
Storage Temperature	-20°C to 80°C
Operating Humidity	20% to 80% RH (Non-condensing)
Weight	Approx. 1.0 kg (2.2 lbs)
Compatible Drive Series	YASKAWA SGDV (Sigma-5) and SGD7S (Sigma-7)
Compliance	CE, UL, RoHS
