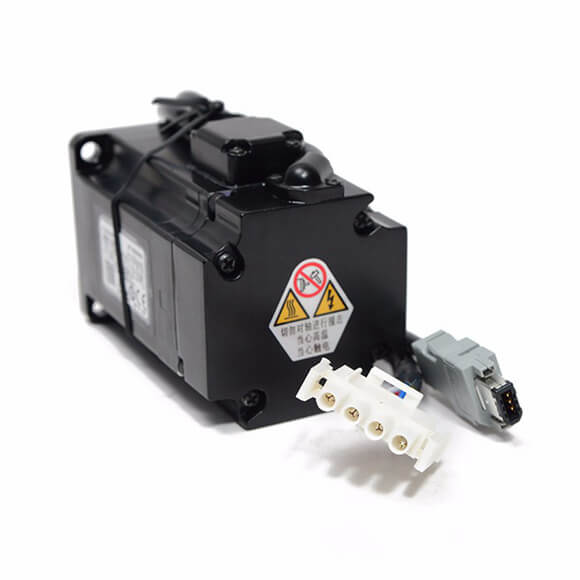

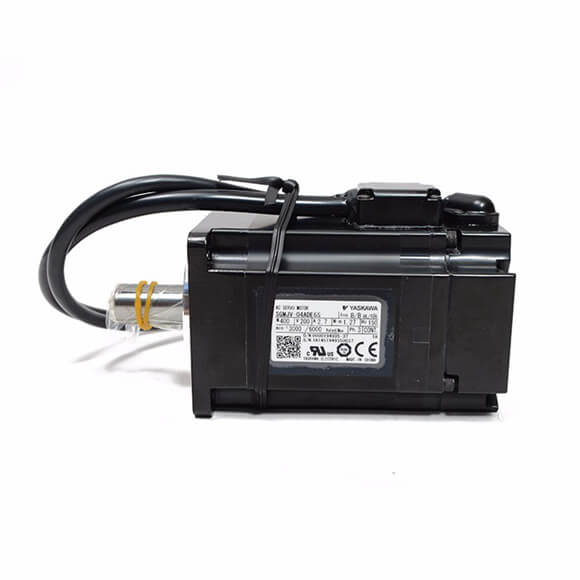

Yaskawa SGMJV-04ADE6S Servo Motor 400W

Series#: Yaskawa

Product Details

High-performance YASKAWA SERVO MOTOR 400W SGMJV-04ADE6S, engineered for precision motion control in industrial automation.
Delivers 400W rated output with a compact, lightweight design, ideal for space-constrained applications.
Integrated 20-bit incremental encoder for high-resolution feedback, ensuring accurate positioning and smooth operation.
Rated speed of 3000 rpm with a maximum speed of 6000 rpm, providing excellent dynamic response.
Compatible with YASKAWA Sigma-V series servo drives, ensuring seamless system integration and reliable performance.
Built with robust construction and IP67 protection rating (shaft end), suitable for harsh industrial environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The YASKAWA SERVO MOTOR 400W SGMJV-04ADE6S is a precision-engineered AC servo motor from the renowned Sigma-V series, designed to meet the rigorous demands of modern industrial automation systems. This model combines a 400-watt power rating with a high-torque density design, enabling exceptional acceleration and deceleration in applications such as CNC machinery, packaging equipment, and robotic arms. With its 20-bit incremental encoder, the SGMJV-04ADE6S offers superior feedback resolution, enhancing overall system accuracy and reducing settling times. The motor’s compact frame size (80 mm flange) and lightweight construction (approximately 1.6 kg) make it an excellent choice for installations where space and weight are critical factors. Below is the detailed technical specification table for this model.

Parameter	Specification
Model	YASKAWA SGMJV-04ADE6S
Rated Output Power	400 W (0.4 kW)
Rated Torque	1.27 N·m
Peak Torque	3.82 N·m
Rated Speed	3000 rpm
Maximum Speed	6000 rpm
Rated Current	2.0 A (AC, RMS)
Peak Current	6.0 A (AC, RMS)
Encoder Type	20-bit Incremental Encoder (Resolution: 1,048,576 pulses/rev)
Insulation Class	Class F (155°C)
Voltage Rating	AC 200 V (Three-phase, 50/60 Hz)
Moment of Inertia (Rotor)	0.225 × 10⁻⁴ kg·m²
Protection Rating	IP67 (Shaft end with oil seal; IP20 for connector)
Ambient Temperature Range	0°C to 40°C (Operating), -20°C to 85°C (Storage)
Ambient Humidity Range	20% to 80% RH (Non-condensing)
Vibration Resistance	49 m/s² (5 G) max at 10-55 Hz

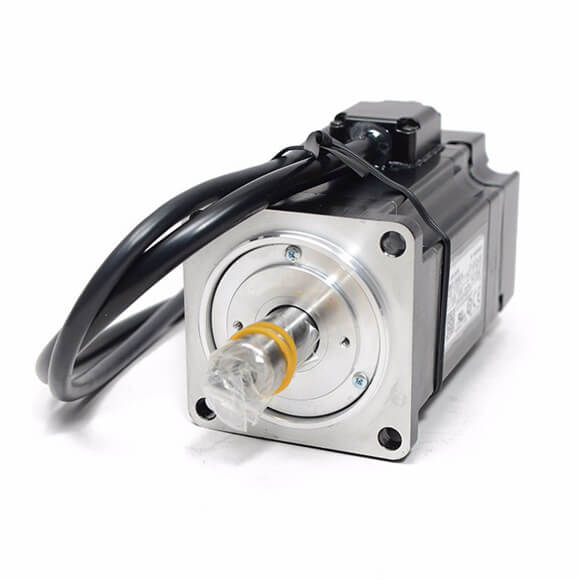

Mounting	Flange-mounted (80 mm square flange)
Shaft End	Straight shaft with keyway (14 mm diameter, 30 mm length)
Brake Option	Standard (Without brake; SGMJV-04ADE6S is non-brake version)
Weight	Approximately 1.6 kg
Connector Type	Standard round connector (CN1 for power, CN2 for encoder)
Compatible Drive Series	YASKAWA Sigma-V SGDV Series (e.g., SGDV-2R8A01A)
Standards Compliance	CE, UL, RoHS
