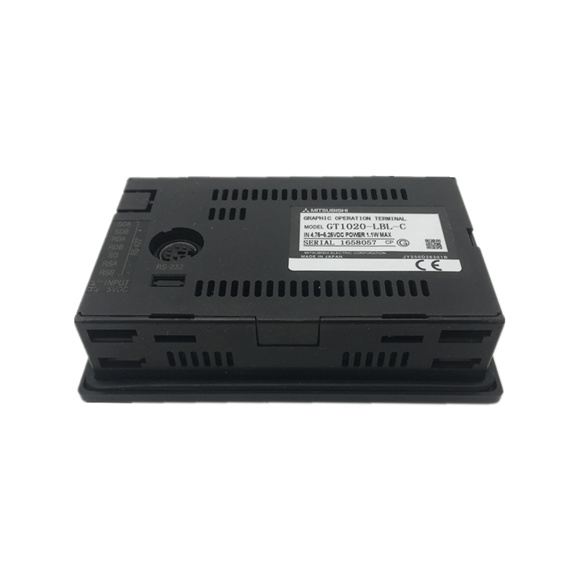

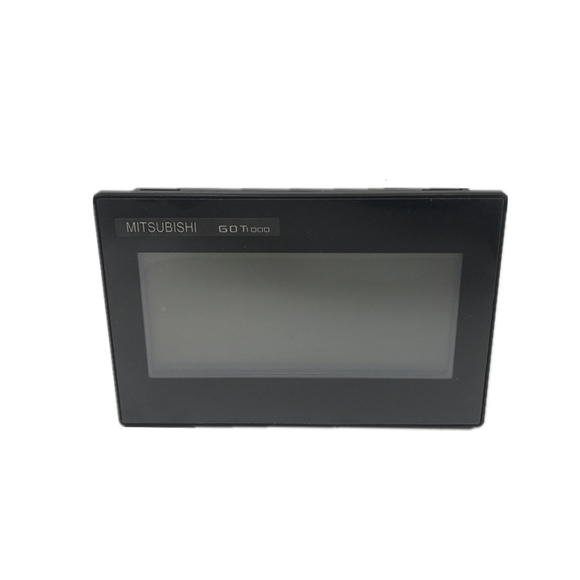

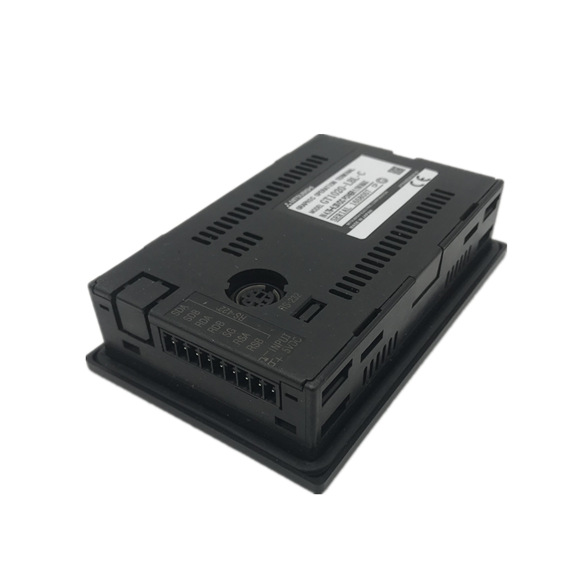

The Mitsubishi HMI Touch Screen GT1020-LBL/LWL is a robust 3.7-inch operator interface designed for demanding automation tasks. Featuring a monochrome STN LCD with 160 x 64 pixel resolution, this unit delivers clear visual feedback in compact spaces. Its IP67-rated front panel withstands dust and water ingress, while the multi-color LED backlight (green, red, orange) ensures visibility in low-light conditions. With RS-422/485 and RS-232 communication ports, the GT1020-LBL/LWL integrates seamlessly with PLCs, supporting data transfer rates up to 115,200 bps. The analog resistive touch panel allows up to 50 programmable keys, and the 512 KB Flash memory stores projects, alarms, and recipes reliably. This original new unit is perfect for OEM replacements, panel upgrades, or new installations.
| Parameter |
Specification |
| Display Type |
STN monochrome (white/black) liquid crystal |
| Screen Size |
3.7″ |
| Resolution |
160 x 64 dots (Horizontal format) |
| Display Size |
W86.4 x H34.5 mm (3.4 x 1.35 in) |
| Display Characters |
20 characters x 4 lines (16-dot standard font) |
| Display Color |
Monochrome (white/black) |
| Viewing Angle |
Left/Right: 30°, Top: 20°, Bottom: 30° (Horizontal format) |
| LCD Intensity |
200 cd/m² (in green) |
| Backlight |
LED with 3 colors (green, red, orange), 50,000h life (to 1/5 intensity at 25°C) |
| Touch Panel |
Analog resistive film, max 50 keys/screen, min key size 2x2 dots |
| Touch Life |
1 million+ times (0.98N max force) |
| Memory (C Drive) |
Flash memory, 512 KB max project data, 100,000 write cycles |
| Built-in Interface |
RS-422/485 1ch (115.2k–4.8k bps) + RS-232 1ch (115.2k–4.8k bps) |
| PC Communication |
RS-232 1ch (MINI DIN 6-pin female), 115.2k–4.8k bps |
| Buzzer |
Single tone (LONG/SHORT/OFF adjustable) |
| Protective Structure |
Equivalent to IP67 (front section, Horizontal format) |
| External Dimensions |
W113 x H74 x D27 mm (4.44 x 2.91 x 1.06 in) |
| Panel Cutout |
W105 x H66 mm (4.13 x 2.59 in) |
- Display Performance: 16-level contrast adjustment ensures optimal readability across lighting conditions.
- Backlight Control: PLC-programmable ON/BLINK/OFF with adjustable screensaver activation for energy savings.
- Touch Reliability: 2-point press not supported; single-point activation with robust 1M+ cycle life.
- Interface Flexibility: RS-422/485 supports terminating resistor (open/110/330Ω) for hardware version E+; RS-232 for legacy PLCs.
- Data Storage: Flash memory stores OS, alarm history, recipe data, and time action settings—no battery backup needed.
- Environmental Resistance: IP67 front panel protects against dust and temporary water immersion (Horizontal mount only).
- Compact Footprint: Slim 27 mm depth allows panel mounting in tight control cabinets.
