Mitsubishi GT1045-QSBD Touch Screen HMI

Series#: Mitsubishi

Product Details

High-performance 4.7" Mitsubishi HMI Touch Screen, models GT1045-QSBD and GT1040-QBBD.
Color (GT1045-QSBD) or monochrome (GT1040-QBBD) STN LCD with 320x240 resolution.
Dual serial interfaces (RS-422/485 & RS-232) plus USB for flexible PLC and PC connectivity.
IP67-rated front panel for dust and water resistance in harsh industrial environments.
LED backlight with 50,000-hour lifespan and programmable screen saver.
Compact design: 139 x 112 x 41 mm, ideal for space-constrained control panels.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

Engineered for demanding automation tasks, the Mitsubishi HMI Touch Screen GT1045-QSBD and GT1040-QBBD deliver reliable operator interface solutions. These 4.7-inch units combine a crisp display with robust connectivity, ensuring seamless integration into existing control systems. The GT1045-QSBD features a 256-color STN LCD, while the GT1040-QBBD offers a monochrome (white/blue) display with 16 grayscale levels, both providing clear visualization for machine status and process control. Built with an IP67-rated front panel, they withstand washdown environments, making them suitable for food processing, packaging, and material handling applications.

Item	GT1045-QSBD	GT1040-QBBD
Display Type	STN Color Liquid Crystal	STN Monochrome (White/Blue) Liquid Crystal
Screen Size	4.7″
Resolution	320 x 240 dots (Horizontal format)
Display Size	W96 x H72 mm (3.77 x 2.83 inches)
Display Character	16-dot: 40 chars x 15 lines; 12-dot: 53 chars x 20 lines
Display Colors	256 Colors	Monochrome, 16 scales
Viewing Angle	L/R: 50°, Top: 40°, Bottom: 70°	L/R: 45°, Top: 20°, Bottom: 40°
Contrast Adjustment	16-level adjustment
LCD Intensity	150 cd/m²	300 cd/m²
Backlight Life	Approx. 50,000 hours (to 1/5 intensity at 25°C)
Backlight	LED, programmable off/screen saver
Touch Panel	Matrix resistive film, max 50 keys/screen
Touch Key Size	Minimum 16 x 16 dots
Simultaneous Touch Points	Maximum 2 points
Touch Life	1 million+ operations (0.98N max. force)
Memory (C Drive)	Flash memory, 3MB max for project data & OS
Memory Write Life	100,000 times
Memory (D Drive)	SRAM for alarm history, recipe, time actions
Battery	GT11-50BAT lithium battery
Battery Backup	Clock, alarm history, recipe, time actions
Battery Life	Approx. 5 years at 25°C

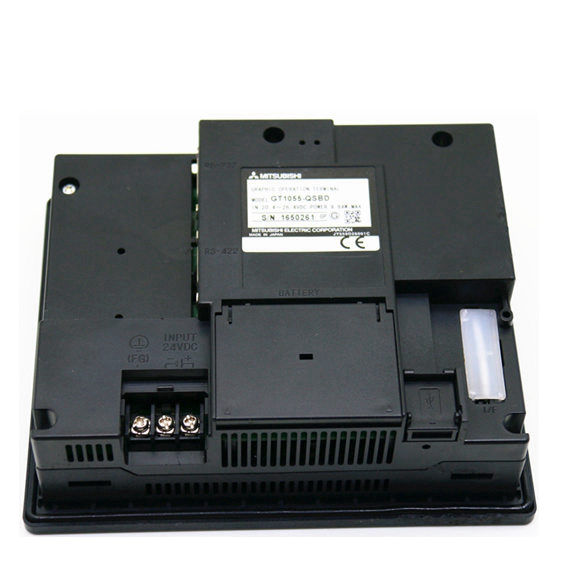

RS-422/485	1 ch, D-sub 9-pin (female), 115.2k/57.6k/38.4k/19.2k/9.6k/4.8k bps, for PLC communication; terminating resistor selectable (open/110/330 Ω)
RS-232	1 ch, D-sub 9-pin (male), same speeds, for PLC, barcode reader, PC communication (upload/download, OS, transparent)
USB	1 ch, Full Speed 12 Mbps, Mini-B connector, for PC communication (upload/download, OS, transparent)
Memory Board	1 ch for GT10-50FMB
Buzzer Output	Single tone (LONG/SHORT/OFF adjustable)
Environmental Protection	IP67 (front section, horizontal format)
External Dimensions	W139 x H112 x D41 mm (excluding mounting fixtures)

Processor & Performance: Fast response for real-time HMI operations with minimal latency.
Connectivity: Dual serial ports (RS-422/485 and RS-232) plus USB for versatile integration with PLCs, barcode readers, and PCs.
Display Quality: High-contrast STN LCD with wide viewing angles (up to 70° bottom) for readability in various lighting.
Durability: IP67 front panel ensures protection against dust and water jets, ideal for washdown environments.
Touch Interface: Matrix resistive touch panel supports up to 2 simultaneous touches, with a minimum key size of 16x16 dots.
Data Retention: SRAM with lithium battery backup maintains critical data (alarm history, recipes) for ~5 years.
Backlight Longevity: LED backlight rated for 50,000 hours reduces maintenance and downtime.
Compact Footprint: Slim 41mm depth allows easy mounting in tight control cabinets.
