Mitsubishi GT1030-LBDW Touch Screen HMI

Series#: Mitsubishi

Product Details

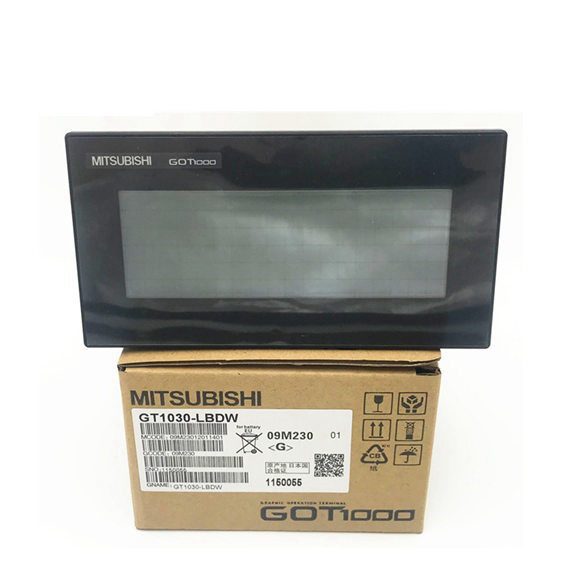

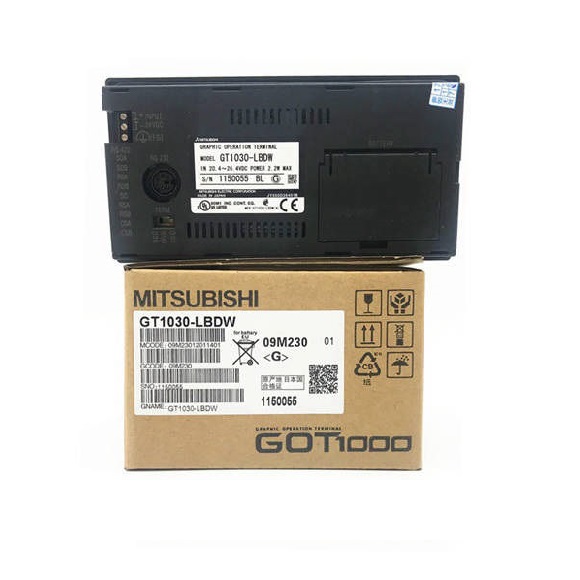

Mitsubishi HMI Touch screen GT1030-LBDW/LWDW/HBDW/HWDW – Compact 4.5-inch monochrome STN LCD for reliable industrial HMI applications.
High-brightness LED backlight – Up to 500 cd/m² (H-series) with 3 colors (white, red, pink) and no replacement needed.
Durable resistive touch panel – Supports up to 50 keys per screen with 1 million+ press life.
Integrated flash memory (1.5MB) for project data and SRAM for alarm/recipe storage.
Wide operating temperature range and 50,000-hour backlight life for long-term reliability.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi HMI Touch screen GT1030-LBDW/LWDW/HBDW/HWDW series is a compact, cost-effective HMI solution designed for small to medium automation systems. Featuring a 4.5-inch STN monochrome LCD with 288 x 96 pixel resolution, these units offer clear, high-contrast displays in both white and black variants. The LED backlight provides exceptional longevity (approx. 50,000 hours) and color flexibility (white, red, pink), while the resistive touch panel ensures reliable operation in harsh environments. With built-in flash memory for project storage and SRAM for data retention, this HMI is ideal for machine control, monitoring, and data logging tasks.

Item	Specifications
Display Section	STN monochrome (white/black) liquid crystal
Screen Size	4.5″
Resolution	288 x 96 dots (Horizontal format)
Display Size	W109.42 x H35.98 mm (4.3 x 1.41 inches)
Display Character	16-dot font: 36 chars x 6 lines; 12-dot font: 48 chars x 8 lines
Display Color	Monochrome (white/black)
Display Angle	Left/Right: 30°, Top: 20°, Bottom: 30° (Horizontal format)
Contrast Adjustment	16-level adjustment
Intensity Adjustment	8-level adjustment
LCD Intensity	GT1030-L series: 300 cd/m² (white); GT1030-H series: 500 cd/m² (white)
Backlight Life	Approx. 50,000 hours (to 1/5 intensity at 25°C)
Backlight	LED with 3 colors (white, red, pink), no replacement required; status control via PLC
Touch Panel	Matrix resistive film; max 50 keys/screen; min key size 16 x 16 dots
2-Point Press	Enabled
Touch Panel Life	1 million+ times (0.98N max. force)
Memory C Drive	Flash memory (internal) for project data and OS; 1.5MB max
Life (Write Cycles)	100,000 times
D Drive	SRAM (internal) for alarm history, recipe data, and time action settings
Battery	GT11-50BAT lithium battery
Backup Target	Clock data, alarm history, recipe data, and time action setting value

Display Technology: STN monochrome LCD ensures sharp readability in low-light or high-ambient environments, with 16-level contrast and 8-level intensity adjustments for operator comfort.
LED Backlight System: Multi-color LED (white, red, pink) with programmable ON/BLINK/OFF control via PLC, eliminating the need for backlight replacement and reducing maintenance.
Touch Panel Performance: Resistive matrix film supports up to 50 touch keys per screen with 1 million+ actuations, suitable for gloved or industrial use.
Memory Architecture: 1.5MB flash memory for project data and OS storage, plus SRAM for critical data backup (alarm history, recipes, time actions), backed by lithium battery.
Environmental Durability: Designed for industrial environments with wide operating temperature and humidity tolerance, ensuring reliable 24/7 operation.
Connectivity & Integration: Compatible with Mitsubishi PLCs via standard communication interfaces, enabling seamless system integration and remote monitoring.
