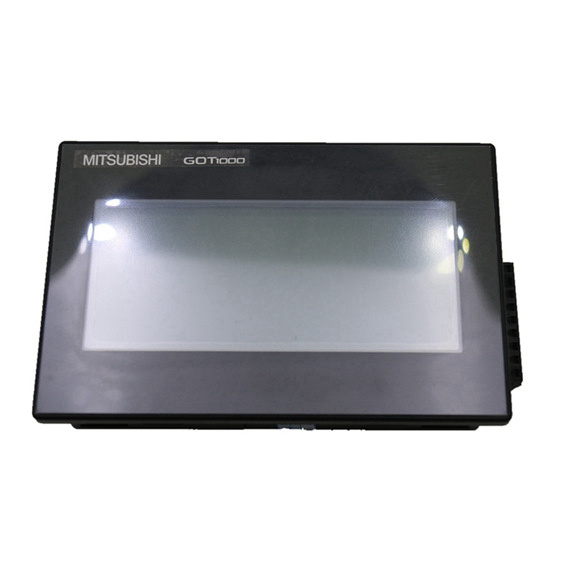

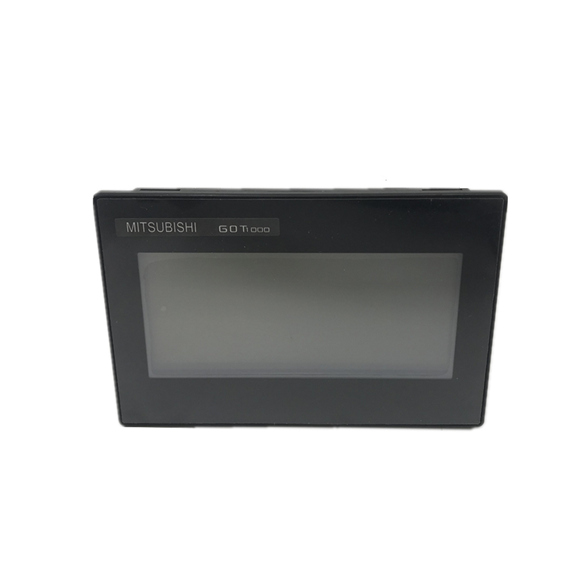

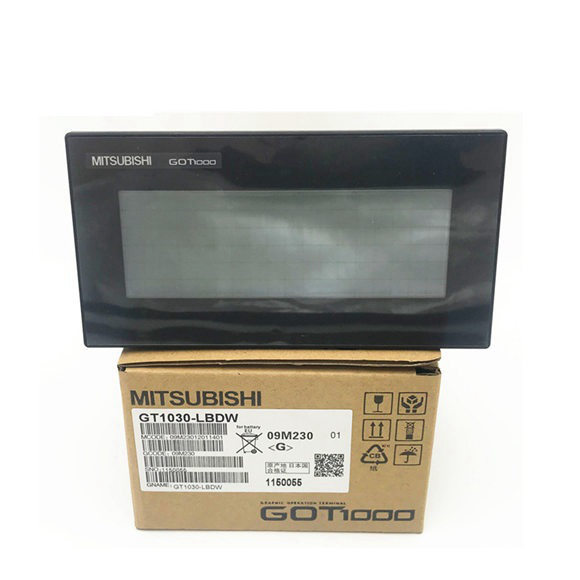

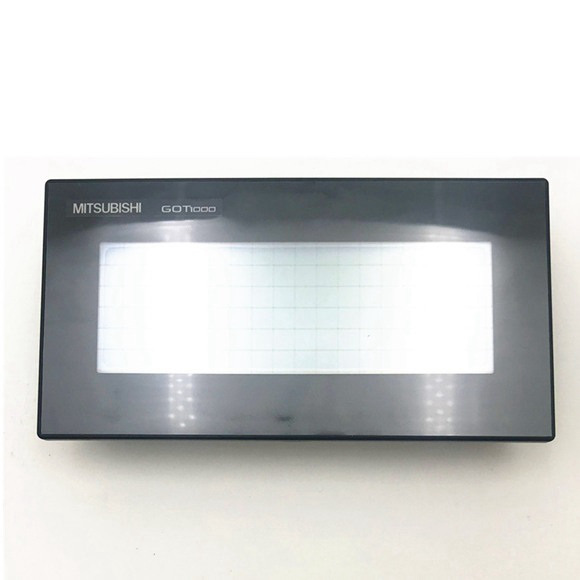

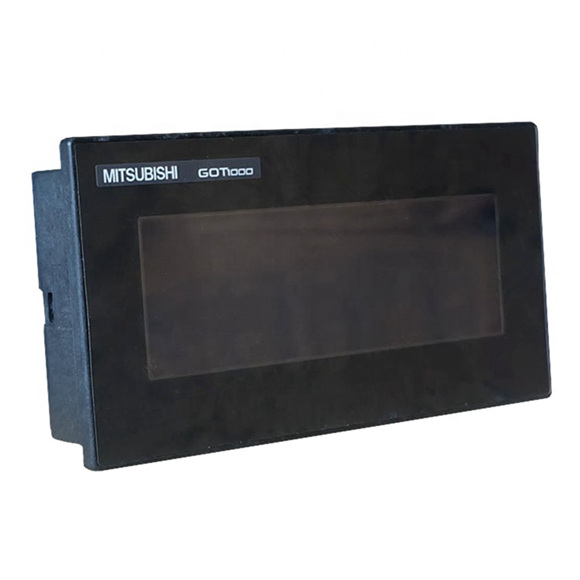

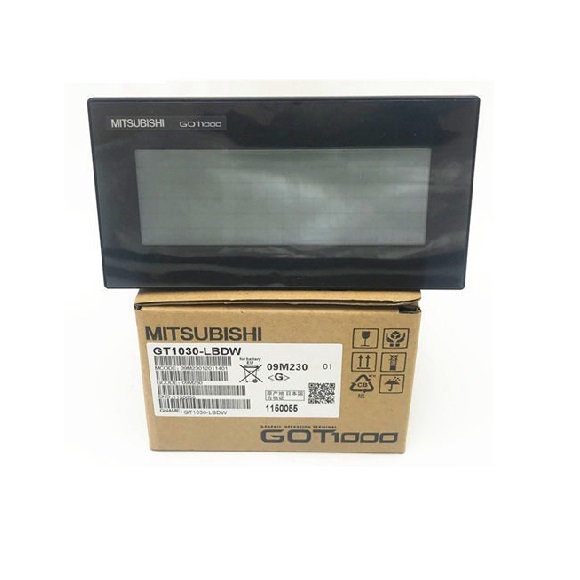

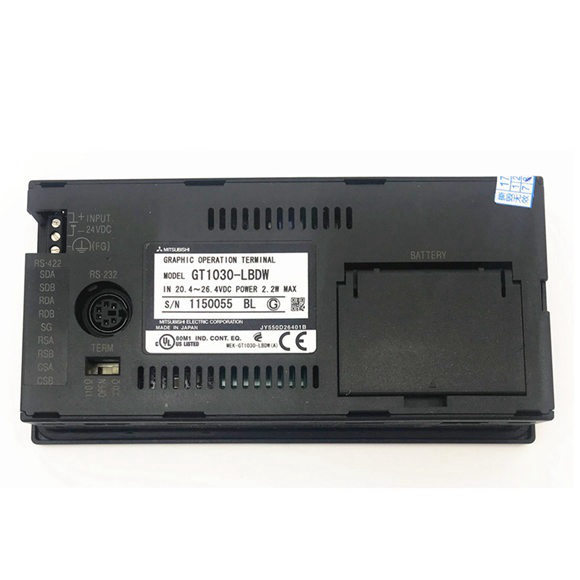

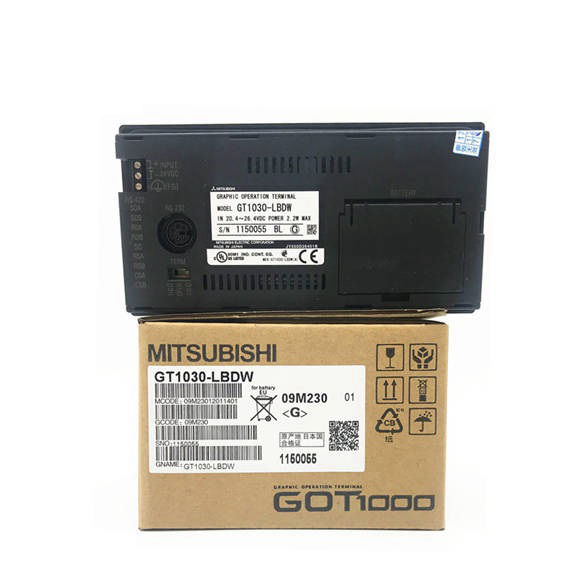

The Mitsubishi HMI Touch Screen GT1030-LBD2/LWD2/HBD2/HWD2 is a rugged, entry-level operator interface designed for demanding industrial environments. Featuring a 4.5-inch STN monochrome LCD with a resolution of 288 x 96 dots, this HMI provides clear, reliable display for machine control and monitoring. Its LED backlight offers three selectable colors (green, red, orange) with a lifespan of approximately 50,000 hours, and can be controlled via PLC for status indication. The resistive touch panel supports up to 50 programmable keys per screen and allows simultaneous two-point pressing, ensuring intuitive operator interaction. With internal flash memory for project data (up to 1.5MB) and SRAM for alarm history and recipe storage, this unit is ideal for compact automation systems requiring robust performance and long-term reliability.
| Parameter |
Specification |
| Display Type |
STN monochrome (white/black) liquid crystal |
| Screen Size |
4.5″ |
| Resolution |
288 x 96 dots (horizontal format) |
| Display Size |
W109.42 x H35.98 mm (4.3 x 1.41 inch) |
| Display Characters (16-dot font) |
36 characters x 6 lines (horizontal) |
| Display Characters (12-dot font) |
48 characters x 8 lines (horizontal) |
| Display Color |
Monochrome (white/black) |
| Viewing Angle |
Left/Right: 30°, Top: 20°, Bottom: 30° |
| Contrast Adjustment |
16-level |
| Intensity Adjustment |
8-level |
| LCD Intensity |
200 cd/m² (green) |
| Backlight Life |
Approx. 50,000 hours (to 1/5 intensity at 25°C) |
| Backlight Type |
LED with 3 colors (green, red, orange) – no replacement needed; PLC-controlled status |
| Touch Panel Type |
Matrix resistive film |
| Max Touch Keys |
50 keys/screen |
| Minimum Key Size |
16 x 16 dots |
| 2-Point Press |
Enabled |
| Touch Panel Life |
1 million+ operations (0.98N max force) |
| Memory – C Drive |
Flash memory (internal) for project data (≤1.5MB) and OS |
| Memory – C Drive Write Life |
100,000 times |
| Memory – D Drive |
SRAM (internal) for alarm history, recipe, time action values |
| Battery |
GT11-50BAT lithium battery |
| Backup Data |
Clock, alarm history, recipe, time action settings |
| Battery Life |
Approx. 5 years (at 25°C) |
| PC Communication |
RS-232, 1 channel; speeds: 115200/57600/38400/19200/9600/4800 bps; MINI DIN 6-pin female; for project upload/download, OS install, transparent function |
| Buzzer Output |
Single tone (LONG/SHORT/OFF adjustable) |
| Protection Rating |
IP67 (front section, JEM1030) – horizontal format |
- Display Excellence: STN monochrome LCD with high contrast and wide viewing angles ensures readability in challenging lighting.
- Flexible Backlight Control: Three-color LED backlight with PLC-driven status control (ON/BLINK/OFF) and adjustable screensaver.
- Durable Touch Interface: Resistive touch panel rated for over 1 million presses, supporting up to 50 keys and 2-point touch.
- Robust Data Storage: 1.5MB flash memory for projects/OS, plus SRAM for critical data with 5-year battery backup.
- Seamless Connectivity: RS-232 port enables fast project transfer and transparent PC communication.
- Industrial Protection: IP67-rated front panel resists dust and water ingress for harsh environments.
