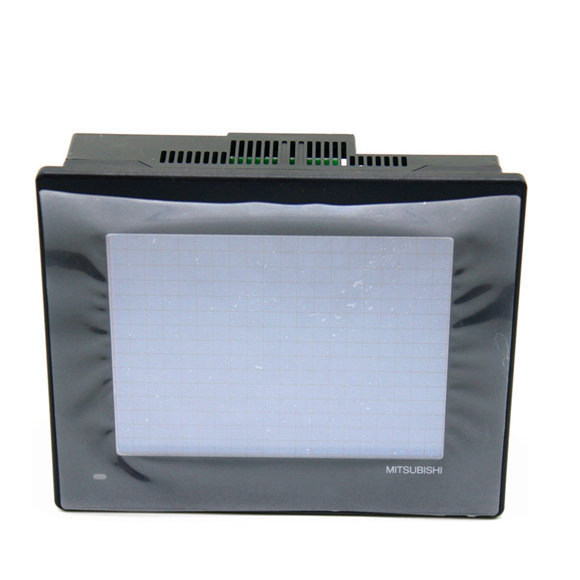

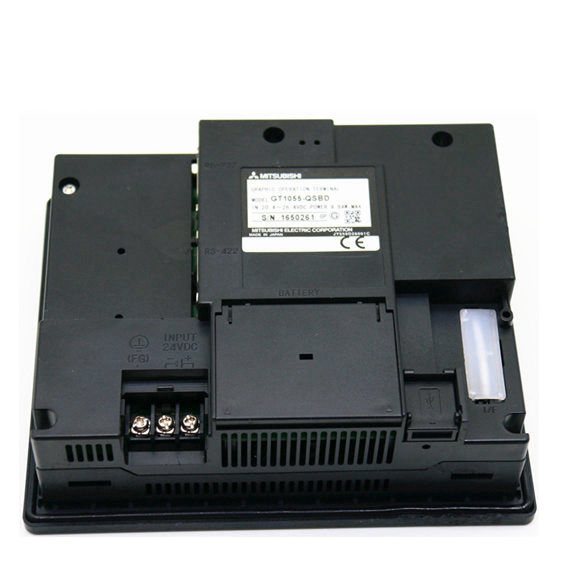

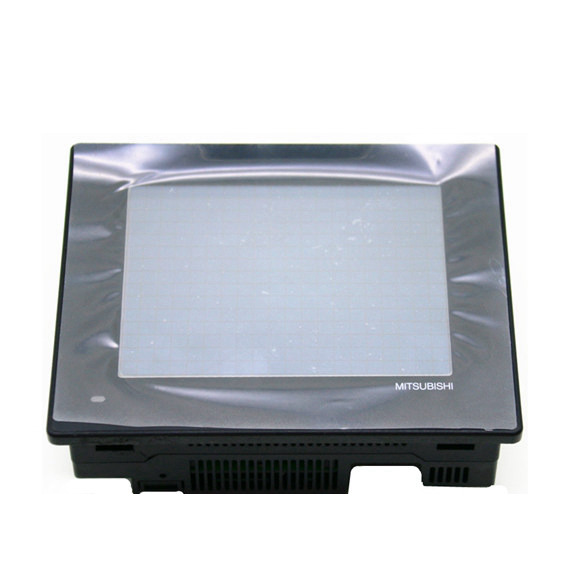

Mitsubishi GT1055-QSBD Touch Screen HMI

Series#: Mitsubishi

Product Details

5.7" Mitsubishi HMI Touch screen GT1055-QSBD & GT1050-QBBD – Precision-engineered operator interfaces for demanding industrial automation.
GT1055-QSBD features a vibrant STN color LCD with 256 colors; GT1050-QBBD offers a reliable monochrome (white/blue) display with 16 scales.
Both models deliver a crisp 320 x 240 dot resolution on a 5.7-inch screen, ideal for clear data visualization.
Equipped with a durable resistive touch panel rated for over 1 million touches, ensuring long-lasting performance.
Integrated RS-422, RS-232, and USB interfaces for flexible PLC, PC, and barcode reader connectivity.
Rugged IP67 front panel protection (equivalent) for reliable operation in harsh factory environments.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi GT1055-QSBD and GT1050-QBBD are compact 5.7-inch HMI touch screens designed to provide robust human-machine interface solutions for industrial control systems. The GT1055-QSBD excels with its STN color liquid crystal display supporting 256 colors, while the GT1050-QBBD offers a cost-effective monochrome (white/blue) option with 16 adjustable scales. Both units share a 320 x 240 dot resolution in horizontal format, ensuring precise graphical representation of process data. With a backlight life of up to 75,000 hours (GT1055-QSBD) or 54,000 hours (GT1050-QBBD), these HMIs are built for continuous operation. The resistive touch panel supports up to 50 keys per screen and withstands over 1 million actuations. Connectivity includes RS-422/485, RS-232, and USB (Full Speed 12Mbps) ports, enabling seamless integration with PLCs, PCs, and peripherals. The IP67-rated front panel and compact dimensions (164 x 135 x 56 mm) make them suitable for panel-mount applications in challenging environments.

Parameter	GT1055-QSBD Specification	GT1050-QBBD Specification
Display Type	STN Color Liquid Crystal	STN Monochrome (White/Blue) Liquid Crystal
Screen Size	5.7"
Resolution	320 x 240 dots (Horizontal format)
Display Size	W115 x H86 mm (4.53 x 3.39 inches)
Display Colors	256 Colors	Monochrome (White/Blue), 16 Scales
Display Angle (Hardware version K or earlier)	Left/Right: 55°, Top: 65°, Bottom: 70°	N/A
Display Angle (Hardware version L or later)	Left/Right: 50°, Top: 50°, Bottom: 70°	Left/Right: 45°, Top: 20°, Bottom: 40°
Contrast Adjustment	16-level adjustment
LCD Intensity	380 cd/m²	260 cd/m²
Backlight Type	Cold Cathode Fluorescent Tube (User-irreplaceable)
Backlight Life (to 50% intensity at 25°C)	Approx. 75,000 hours	Approx. 54,000 hours
Touch Panel Type	Matrix Resistive Film
Touch Keys per Screen	Max. 50 keys
Simultaneous Touch Points	Max. 2 points
Touch Panel Life	1 million times or more (0.98N max. force)
Memory (C Drive)	Flash Memory (3MB max. project data, OS)
C Drive Write Life	100,000 times
Memory (D Drive)	SRAM (Alarm history, recipe data, time action settings)
Battery	GT11-50BAT Lithium Battery
Battery Backup Target	Clock data, alarm history, recipe data, time action settings
Battery Life	Approx. 5 years (at 25°C operating temperature)
Built-in Interface RS-422	1 channel (D-sub 9 female, 115200/57600/38400/19200/9600/4800 bps)
Built-in Interface RS-422/485	1 channel (D-sub 9 female, with terminating resistor selection)
Built-in Interface RS-232	1 channel (D-sub 9 male, for PLC, barcode reader, PC communication)
Built-in Interface USB	1 channel (Mini-B, Full Speed 12Mbps, for PC data upload/download)
Memory Board Slot	1 channel (for GT10-50FMB)
Buzzer Output	Single tone (LONG/SHORT/OFF adjustable)
Environmental Protection	IP67 equivalent (front panel, horizontal format)
External Dimensions	W164 x H135 x D56 mm (excluding mounting fixtures)

Display Characters: Supports 16-dot standard font with 40 characters x 15 lines, and 12-dot standard font with 53 characters x 20 lines (horizontal format).
Backlight Shutoff: Includes backlight shutoff detection and screen saving time settings to extend operational life.
Touch Key Size: Minimum key size of 16 dots (per key) for reliable touch accuracy.
RS-422 Terminating Resistor: Hardware version C or later allows selection between Open, 110Ω, or 330Ω via a switch (factory default: 330Ω).
RS-232 Application: Supports transparent function for seamless PC-to-PLC communication during project upload/download and OS installation.
USB Application: Enables direct connection to a PC for project data transfer, OS installation, and transparent mode.
Environmental Durability: Front panel rated equivalent to IP67 (JEM1030) for protection against dust and water ingress in horizontal mounting orientation.
