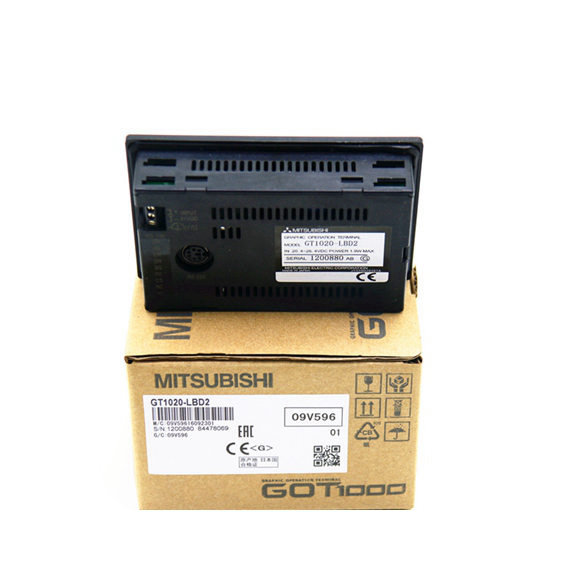

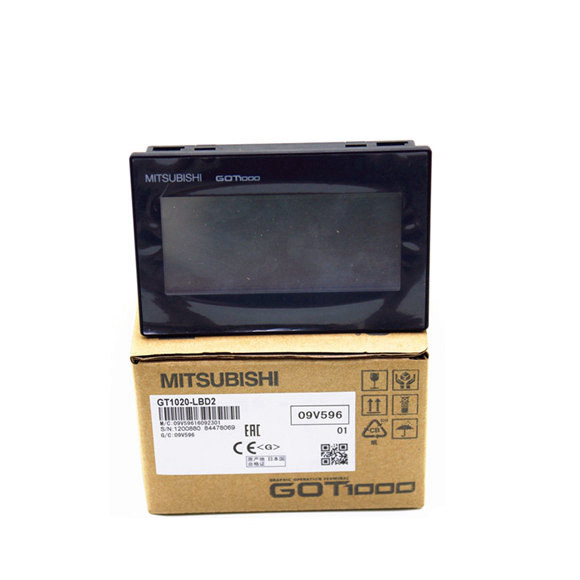

The Mitsubishi HMI Touch screen GT1020-LBD2/LWD2 delivers a rugged, space-saving solution for machine control and monitoring. Its 3.7-inch STN monochrome LCD provides clear 160 x 64 dot graphics with a wide viewing angle, while the multi-color LED backlight (green, red, orange) enhances status visibility without requiring replacement. Designed for industrial reliability, this HMI offers IP67 front protection and a touch panel rated for over 1 million presses, making it ideal for harsh environments. With versatile RS-422/485 and RS-232 communication ports, it ensures seamless integration with PLCs and PCs for data upload, download, and transparent functions.
| Item |
GT1020-LBD2/LWD2 Specifications |
| Display Section |
STN monochrome (white/black) liquid crystal |
| Screen Size |
3.7″ |
| Resolution |
160 × 64 dots (horizontal format) |
| Display Size |
W86.4 × H34.5 mm (3.4 × 1.35 inches) |
| Display Character |
16-dot standard font: 20 characters × 4 lines |
| Display Color |
Monochrome (white/black) |
| Display Angle |
Left/Right: 30°, Top: 20°, Bottom: 30° |
| Contrast Adjustment |
16-level adjustment |
| Intensity of LCD Only |
200 cd/m² (in green) |
| Life (LCD) |
Approx. 50,000 h (to 1/5 intensity at 25°C) |
| Backlight |
LED with 3 colors (green, red, orange), no replacement required; backlight status control (colors, ON/BLINK/OFF) and adjustable screensaver activation time; PLC control via system information |
| Touch Panel |
Analog resistive film; max 50 keys/screen; minimum key size 2 × 2 dots; life 1 million+ times (0.98N max); 2-point press not supported |
| Memory (C drive) |
Flash memory (internal) for project data (512 KB or less), OS, alarm history, recipe data, and time action settings; 100,000 write cycles life |
| Built-in Interface – PLC Communication |
RS-422/485 1ch: 115,200/57,600/38,400/19,200/9,600/4,800 bps, connector terminal block 9 pins; terminating resistor (open/110Ω/330Ω) selectable (hardware version E or later)
RS-232 1ch: same speeds, connector terminal block 9 pins |
| Built-in Interface – PC Communication |
RS-232 1ch: same speeds, MINI DIN 6 pins (female); used for project data upload/download, OS installation, transparent function |
| Buzzer Output |
Single tone (LONG/SHORT/OFF adjustable) when touch keys are pressed |
| Environmental Protective Structure |
Equivalent to IP67 (JEM1030) front section (horizontal format) |
| External Dimensions |
W113 × H74 × D27 mm (4.44 × 2.91 × 1.06 inches) |
| Panel Cutting Dimensions |
W105 × H66 mm (4.13 × 2.59 inches) |
- Display & Backlight: The STN monochrome LCD with 160×64 resolution and 200 cd/m² green intensity ensures clear visibility. The LED backlight (green/red/orange) offers 50,000-hour life with no replacement needed, plus PLC-controlled status (ON/BLINK/OFF) and adjustable screensaver timing.
- Touch Panel & Memory: Analog resistive touch panel supports up to 50 keys per screen with 1 million actuations. Internal flash memory stores project data up to 512 KB, with 100,000 write cycles for robust data retention.
- Communication Interfaces: RS-422/485 (with selectable terminating resistor) and RS-232 ports for PLC links; dedicated RS-232 for PC communication (project transfer, OS installation, transparent mode). All support speeds up to 115,200 bps.
- Environmental & Mechanical: IP67-equivalent front protection (JEM1030) for dust and water resistance. Compact dimensions (113×74×27 mm) with panel cutout of 105×66 mm, ideal for tight panel spaces.
