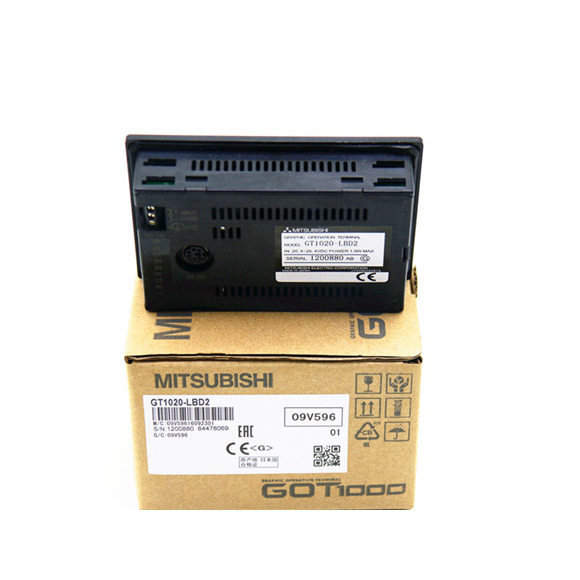

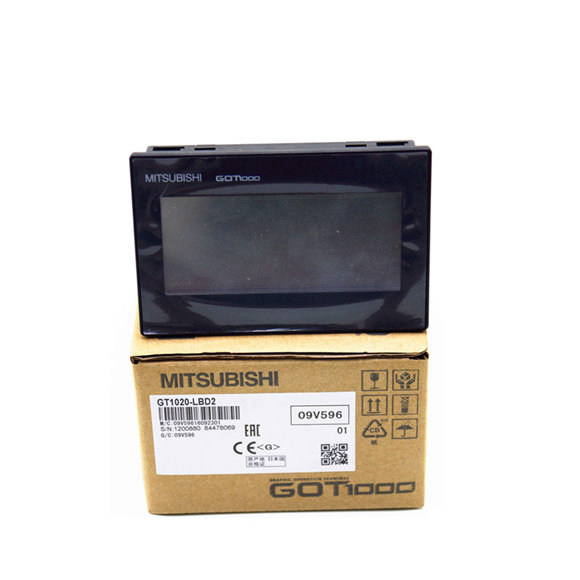

The Mitsubishi HMI Touch screen GT1020-LBDW/LWDW is a compact, rugged operator interface engineered for demanding industrial environments. Featuring a 3.7-inch STN monochrome LCD with 160 x 64 dot resolution and a high-contrast white/black display, this HMI delivers reliable visual feedback for machine control and monitoring. Its intelligent LED backlight offers three selectable colors (white, red, pink) with a 50,000-hour lifespan, eliminating the need for replacement. The analog resistive touch panel supports up to 50 touch keys per screen, with a mechanical life exceeding 1 million actuations. With IP67-equivalent front protection and a slim 27mm depth, the GT1020-LBDW/LWDW is ideal for panel-mount applications in tight spaces. It interfaces via RS-232 for PC communication and is fully compatible with GT Designer2 (V2.58L+) and GT Designer3 (V1.01B+) software.
| Item |
Specification |
| Display Type |
STN monochrome (white/black) liquid crystal |
| Screen Size |
3.7″ |
| Resolution |
160 x 64 dots (horizontal format) |
| Display Size |
W86.4 x H34.5 mm (3.4 x 1.35 inch) |
| Character Display |
20 characters x 4 lines (16-dot standard font, horizontal) |
| Display Colors |
Monochrome (white/black) |
| Viewing Angle |
Left/Right: 30°, Top: 20°, Bottom: 30° (horizontal) |
| Contrast Adjustment |
16-level adjustment |
| LCD Intensity |
300 cd/m² (white) |
| Backlight Life |
Approx. 50,000 h (to 1/5 intensity at 25°C) |
| Backlight Colors |
White, red, pink (LED, no replacement required) |
| Touch Panel Type |
Analog resistive film |
| Max Touch Keys |
50 keys per screen |
| Key Size (Min) |
2 x 2 dots per key |
| 2-Point Press Support |
Not supported |
| Touch Panel Life |
1 million+ actuations (0.98N max) |
| Internal Memory (C drive) |
Flash memory, 512 KB max for project data, OS, alarm history, recipes, time actions |
| Memory Write Life |
100,000 times |
| PC Communication |
RS-232, 1 channel, 115,200 to 4,800 bps, MINI DIN 6-pin female |
| Buzzer |
Single tone (LONG/SHORT/OFF adjustable) |
| Protective Structure |
IP67-equivalent (front section, horizontal format) |
| External Dimensions |
W113 x H74 x D27 mm (4.44 x 2.91 x 1.06 inch) |
| Panel Cutout |
W105 x H66 mm (4.13 x 2.59 inch) |
| Weight |
0.2 kg (excluding mounting fixtures) |
| Software Compatibility |
GT Designer2 V2.58L+ / GT Designer3 V1.01B+ |
- Display Performance: STN monochrome LCD with 160x64 dots, 300 cd/m² brightness, and 16-level contrast adjustment for optimal readability in variable lighting.
- Backlight Intelligence: LED backlight with 3 colors (white, red, pink) and programmable ON/BLINK/OFF control; PLC can manage status via system information settings.
- Touch Interface: Analog resistive film supports up to 50 keys per screen, minimum 2x2 dot key size, with 1 million+ cycle life under 0.98N force.
- Memory & Data Management: 512 KB flash internal C drive stores project data, OS, alarm history, recipes, and time action settings; 100,000 write cycles endurance.
- Connectivity: Single RS-232 channel (115,200–4,800 bps) via MINI DIN 6-pin female for PC upload/download, OS installation, and transparent function.
- Environmental Resilience: IP67-equivalent front protection (horizontal format) withstands dust and water ingress; compact 27mm depth for space-constrained panels.
- Audible Feedback: Configurable single-tone buzzer (LONG/SHORT/OFF) for touch key confirmation.
