Panasonic FP-X Series PLC CPU Module

Series#: Panasonic

Product Details

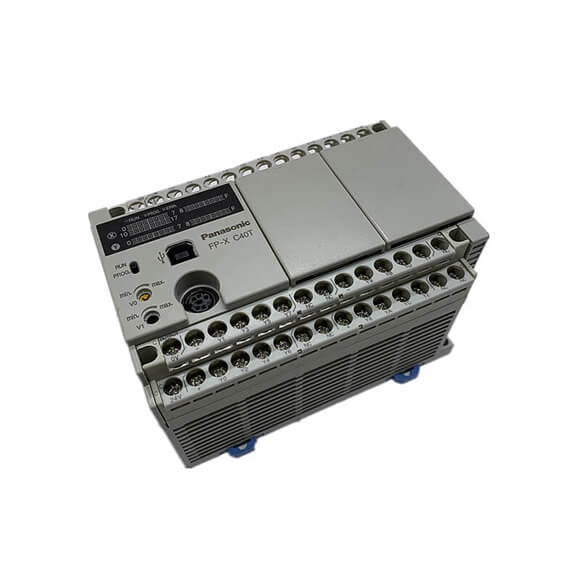

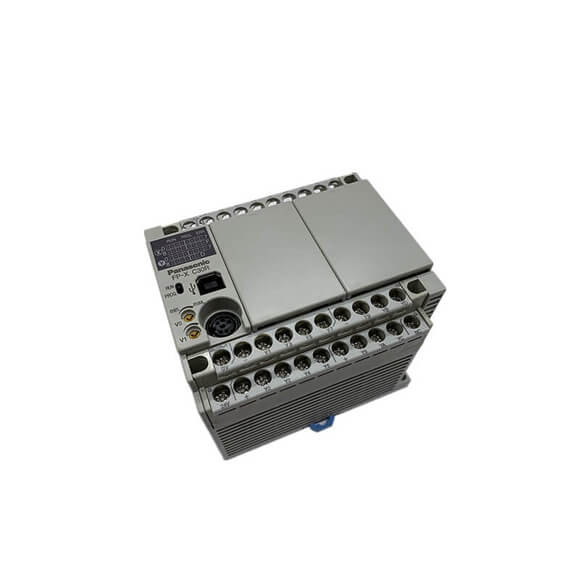

PANASONIC PLC FP-X SERIES AFPX-C14R, AFPX-C14RD, AFPX-C30R, AFPX-C30RD – compact, high-performance programmable logic controllers for industrial automation.
Relay output models (C14R/C30R) and transistor output models (C14RD/C30RD) for flexible I/O configurations.
Expandable up to 382 I/O points with FP0R expansion units and add-on cassettes, ideal for scalable systems.
Built-in high-speed counter up to 50 kHz and pulse output up to 100 kHz for precise motion control.
Flash ROM program memory with no backup battery required, ensuring robust and maintenance-free operation.
Supports 16 k steps (C14 models) or 32 k steps (C30 models) program capacity for complex logic.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Panasonic FP-X Series, including models AFPX-C14R, AFPX-C14RD, AFPX-C30R, and AFPX-C30RD, represents a versatile line of programmable logic controllers engineered for demanding industrial applications. These units combine relay or transistor output options with high-speed processing, extensive memory, and modular expandability, making them suitable for machine control, packaging, and assembly lines. With a basic instruction speed of 0.32 µs per step and support for up to 1,760 external I/O points, the FP-X series delivers reliable performance in a compact footprint. The built-in flash ROM eliminates the need for battery-backed program memory, while advanced features like pulse output and high-speed counters enable precise positioning and timing tasks.

Item	C14 Models	C30 Models
Relay output type	DC input: 8, relay output: 6	DC input: 16, relay output: 14
Transistor output type	DC input: 8, transistor output: 6	DC input: 16, transistor output: 14
Max. I/O points when expanded	254 points (328 points max. when using add-on cassettes and FP0R expansion units)	270 points (352 points max. when using add-on cassettes and FP0R expansion units)
Programming method / Control method	Relay symbol / Cyclic operation
Program memory	Built-in flash ROM (no backup battery required)
Program capacity	16 k steps	32 k steps
Operation speed	Basic instruction: 0.32 µs/step
I/O refresh + base time	0.2 ms [When using FP0R expansion units: 1 ms + (1.5 × Number of expansion units) ms]
External inputs (X)	1,760 points (The actual usable number of points is restricted by the hardware.)
External outputs (Y)	1,760 points (The actual usable number of points is restricted by the hardware.)
Internal relay (X)	4,096 points (R0 to R255F)
Special internal relay (R)	192 points
Timer / counter (T/C)	1,024 points: timer capable of counting (1 ms, 10 ms, 100 ms, 1 sec.) × 32,767, Counter capable of counting 1 to 32,767
Link relay (L)	2,048 points
Data register	12,285 words (DT0 to DT12284)	32,765 words (DT0 to DT32764)
Special data register (DT)	374 words
Link register (LD)	256 words
Index register (I)	14 words
High-speed counter (Note 1)	Built-in (Transistor output): single-phase 8 ch (50 kHz × 4 ch + 10 kHz × 4 ch) Built-in (Relay output): single-phase 8 ch (10 kHz × 8 ch) Pulse I/O cassette: single-phase 2 ch (80 kHz × 2 ch)
Pulse output (Note 2) / PWM output	Built-in (Transistor output): 100 kHz × 2 ch + 20 kHz × 2 ch Pulse I/O cassette: One unit (one axis) 100 kHz, or two units (two axes) 80 kHz
Time measurement	10 µs ring counter
Potentiometer	2 points (K0 to K1000)	2 points (K0 to K1000)
Constant scan	Available
Clock / calendar	When AFPX-MRTC is attached: Year (last two digits), month, day, hours (24-hour display), minutes, seconds, day of week. Operates only when a battery is installed.
Backup by P13 commands	Data register (32,765 words)
Auto-backup at power failure	Counter 16 points (1008 to 1023), Internal relay 128 points (R2480 to R255F), Data register 55 words (C30 models = 32710 to 32764, C14 models = 12230 to 12284)
Battery backup	The memory allocated in the storage area by the system register (only when a battery is installed)
