Panasonic FP-X Series PLC CPU Module

Series#: Panasonic

Product Details

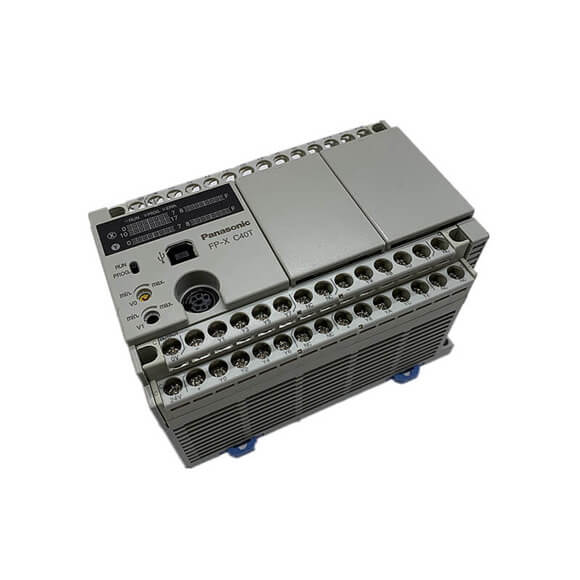

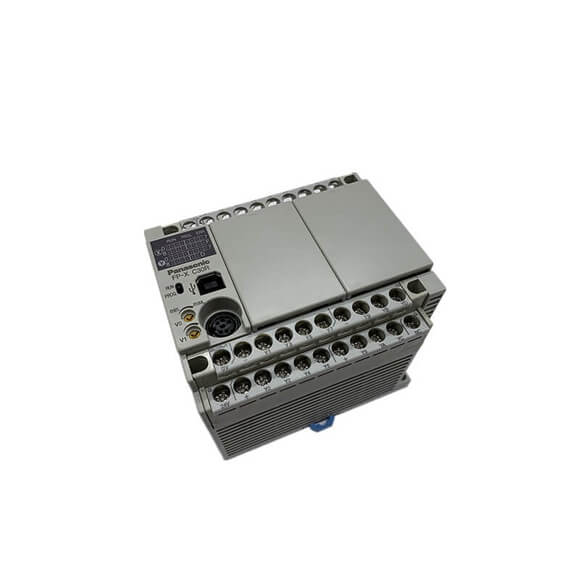

PANASONIC PLC FP-X SERIES AFPX-C60R – High-performance relay output CPU unit with 32 DC inputs and 28 relay outputs for demanding industrial control.
Expandable up to 300 I/O points (382 max. with FP0R expansion units and add-on cassettes).
Ultra-fast processing: Basic instruction execution speed of 0.32 µs/step, ensuring real-time responsiveness.
Built-in flash ROM program memory – no backup battery required for program retention.
Supports high-speed counters (up to 50 kHz single-phase) and pulse outputs (up to 100 kHz) for precise motion control.
Robust data register capacity of 32,765 words (DT0 to DT32764) for complex data handling.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Panasonic FP-X Series AFPX-C60R is a flagship relay output CPU unit designed for advanced automation tasks requiring high I/O density and reliable switching. With 32 DC inputs and 28 relay outputs, this model delivers the power needed for medium-to-large scale control systems, while supporting expansion up to 300 points (382 max. with FP0R units). Engineered for speed, the AFPX-C60R executes basic instructions in just 0.32 µs per step, enabling rapid cycle times. Its built-in flash ROM eliminates the need for battery backup for program storage, and the unit includes 32 k steps of program capacity. The AFPX-C60R also features versatile high-speed counter channels (single-phase 8 ch at 10 kHz) and pulse output capabilities (100 kHz × 2 ch + 20 kHz × 2 ch) for precise positioning. With 4,096 internal relays, 1,024 timer/counter points, and 32,765 data register words, this PLC is ideal for complex sequential and motion control applications. The unit also offers a constant scan function, potentiometer adjustments (4 points), and optional clock/calendar via the AFPX-MRTC cassette.

Specification	AFPX-C60R (Relay Output)
Input Points (DC)	32
Output Points (Relay)	28
Max. I/O Points (Expanded)	300 points (382 max. with FP0R expansion units and add-on cassettes)
Programming Method / Control Method	Relay symbol / Cyclic operation
Program Memory	Built-in flash ROM (no backup battery required)
Program Capacity	32 k steps
Operation Speed (Basic Instruction)	0.32 µs/step
I/O Refresh + Base Time	0.2 ms (with FP0R expansion: 1 ms + (1.5 × Number of expansion units) ms)
External Inputs (X)	1,760 points (hardware-limited)
External Outputs (Y)	1,760 points (hardware-limited)
Internal Relay (R)	4,096 points (R0 to R255F)
Special Internal Relay (R)	192 points
Timer / Counter (T/C)	1,024 points (1 ms, 10 ms, 100 ms, 1 sec. timers × 32,767; counter 1 to 32,767)
Link Relay (L)	2,048 points
Data Register (DT)	32,765 words (DT0 to DT32764)
Special Data Register (DT)	374 words
Link Register (LD)	256 words
Index Register (I)	14 words
High-Speed Counter (Built-in, Relay Output)	Single-phase 8 ch (10 kHz × 8 ch)
High-Speed Counter (Pulse I/O Cassette)	Single-phase 2 ch (80 kHz × 2 ch)
Pulse Output / PWM Output	100 kHz × 2 ch + 20 kHz × 2 ch (built-in transistor output); Pulse I/O cassette: 1 axis 100 kHz or 2 axes 80 kHz
Time Measurement	10 µs ring counter
Potentiometer	4 points (K0 to K1000)
Constant Scan	Available
Clock / Calendar	When AFPX-MRTC attached (year, month, day, hours, minutes, seconds, day of week; battery required)
Backup by P13 Commands	Data register (32,765 words)
Auto-Backup at Power Failure	Counter 16 points (1008-1023), Internal relay 128 points (R2480-R255F), Data register 55 words (32710-32764)
Battery Backup	Memory allocated in storage area by system register (battery required)
