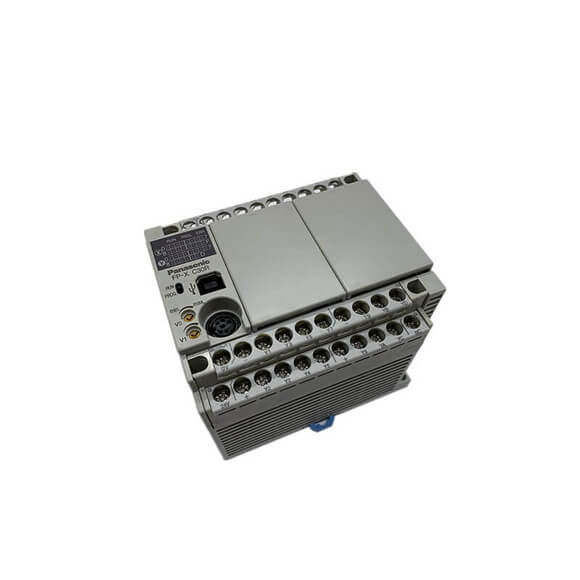

Panasonic FP-X Series PLC CPU Module

Series#: Panasonic

Product Details

PANASONIC PLC FP-X SERIES AFPX-C38AT, AFPX-C60T, AFPX-C60TD, AFPX-C60P – High-performance modular controllers for industrial automation.
Scalable I/O: Expand up to 382 points with add-on cassettes and FP0R expansion units.
Ultra-fast processing: Basic instruction execution at 0.32 µs/step for real-time control.
Built-in high-speed counter and pulse output: Up to 100 kHz for precise motion control.
Flash ROM program memory – No backup battery required for program retention.
Versatile output options: Relay (AFPX-C60P) or transistor (AFPX-C60T/C60TD) for different load requirements.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Panasonic FP-X Series, including models such as the AFPX-C38AT, AFPX-C60T, AFPX-C60TD, and AFPX-C60P, represents a robust line of programmable logic controllers designed for demanding industrial environments. These units combine high-speed processing with extensive I/O expansion capabilities, making them suitable for applications ranging from simple machine control to complex production lines. With built-in flash ROM, a wide range of communication options, and support for high-speed counters and pulse outputs, the FP-X series delivers reliable performance and flexibility. The transistor output models (AFPX-C60T/C60TD) offer high-speed switching for precise motion tasks, while the relay output model (AFPX-C60P) provides robust isolation for general-purpose control. Below are the detailed technical specifications for the C14, C30, and C60 base units, which share core architecture with the AFPX-C38AT and AFPX-C60 models.

Item	C14 (Standard Models)	C30 (Standard Models)	C60 (Standard Models)
Relay output type	DC input: 8, relay output: 6	DC input: 16, relay output: 14	DC input: 32, relay output: 28
Transistor output type	DC input: 8, transistor output: 6	DC input: 16, transistor output: 14	DC input: 32, transistor output: 28
Max. I/O points when expanded	254 points (328 points max. when using add-on cassettes and FP0R expansion units)	270 points (352 points max. when using add-on cassettes and FP0R expansion units)	300 points (382 points max. when using add-on cassettes and FP0R expansion units)
Programming method / Control method	Relay symbol / Cyclic operation
Program memory	Built-in flash ROM (no backup battery required)
Program capacity	16 k steps	32 k steps	32 k steps
Operation speed	Basic instruction: 0.32 µs~/step
I/O refresh + base time	0.2 ms [When using FP0R expansion units: 1 ms + (1.5 × Number of expansion units) ms]
External inputs (X)	1,760 points (The actual usable number of points is restricted by the hardware.)
External outputs (Y)	1,760 points (The actual usable number of points is restricted by the hardware.)
Internal relay (X)	4,096 points (R0 to R255F)
Special internal relay (R)	192 points
Timer / counter (T/C)	1,024 points: timer capable of counting (1 ms, 10 ms, 100 ms, 1 sec.) × 32,767, Counter capable of counting 1 to 32,767
Link relay (L)	2,048 points
Data register	12,285 words (DT0 to DT12284)	32,765 words (DT0 to DT32764)
Special data register (DT)	374 words
Link register (LD)	256 words
Index register (I)	14 words
High-speed counter (Note 1)	Built-in (Transistor output): single-phase 8 ch (50 kHz × 4 ch + 10 kHz × 4 ch) Built-in (Relay output): single-phase 8 ch (10 kHz × 8 ch) Pulse I/O cassette: single-phase 2 ch (80 kHz × 2 ch)
Pulse output (Note 2) / PWM output	Built-in (Transistor output): 100 kHz × 2 ch + 20 kHz × 2 ch Pulse I/O cassette: One unit (one axis) 100 kHz, or two units (two axes) 80 kHz
Time measurement	10 µs ring counter
Potentiometer	2 points (K0 to K1000)	2 points (K0 to K1000)	4 points (K0 to K1000)
Constant scan	Available
Clock / calendar	When AFPX-MRTC is attached: Year (last two digits), month, day, hours (24-hour display), minutes, seconds, day of week. Operates only when a battery is installed.
Backup by P13 commands	Data register (32,765 words)
Auto-backup at power failure	Counter 16 points (1008 to 1023), Internal relay 128 points (R2480 to R255F), Data register 55 words (C30 / C60 = 32710 to 32764, C14 = 12230 to 12284)
Battery backup	The memory allocated in the storage area by the system register (only when a battery is installed)
