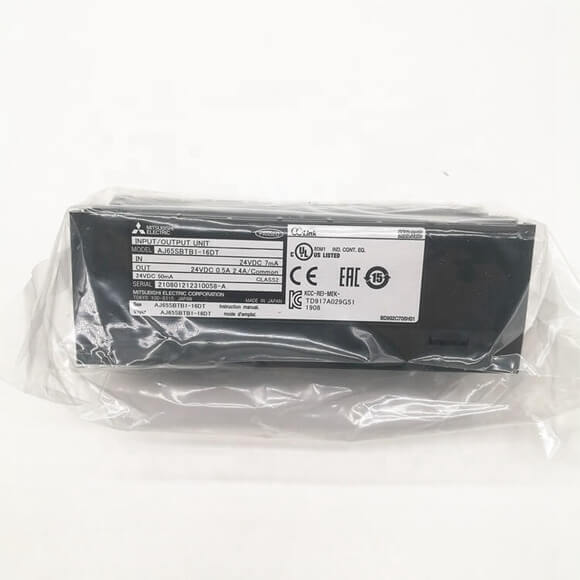

Mitsubishi AJ65SBTB1-16DT CC-Link PLC Module

Series#: Mitsubishi

Product Details

High-performance Mitsubishi CC-Link PLC Module AJ65SBTB1-16DT, AJ65SBTB1-16DT1, and AJ65SBTB1-32DT1 for reliable industrial automation.
Compact design with 8 input points and 16/8 output points for flexible I/O configurations.
Robust photocoupler insulation ensures noise immunity and long-term reliability in harsh environments.
Rated for 24 V DC operation with wide voltage range (19.2 to 26.4 V DC) and low power consumption.
Integrated overload, overvoltage, and overheat protection on output for enhanced system safety.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Mitsubishi CC-Link PLC Module series, including the AJ65SBTB1-16DT, AJ65SBTB1-16DT1, and AJ65SBTB1-32DT1, represents a robust solution for distributed I/O in demanding industrial control systems. These modules are engineered for seamless integration into CC-Link networks, offering high-speed data exchange and precise control. With sink-type inputs and outputs, they deliver reliable performance in DC applications, supported by advanced protection features to safeguard against electrical faults. Ideal for factory automation, these modules ensure minimal wiring complexity and maximum uptime.

Parameter	AJ65SBTB1-16DT	AJ65SBTB1-16DT1	AJ65SBTB1-32DT1
Part Number	AJ65SBTB1-16D1	AJ65SBTB1-16DT1	AJ65SBTB1-32DT1
Number of Input Points	8 points	8 points	16 points
Number of Output Points	16 points	8 points	16 points
Insulation Method	Photocoupler	Photocoupler	Photocoupler
Rated Input Voltage	24 V DC	24 V DC	24 V DC
Rated Load Voltage	24 V DC	24 V DC	24 V DC
Rated Input Current	Approx. 7 mA	Approx. 5 mA	Approx. 7 mA
Operating Voltage Range	19.2 to 26.4 V DC (ripple ratio: within 5%)	19.2 to 26.4 V DC (ripple ratio: within 5%)	19.2 to 26.4 V DC (ripple ratio: within 5%)
Max. Load Current	0.5 A/point (3.6 A/common when all points ON: 0.225 A/1 point)	0.5 A/point (2.4 A/common)	0.5 A/point (3.6 A/common)
Max. Inrush Current	1.0 A for 10 ms or lower	1.0 A for 10 ms or lower	1.0 A for 10 ms or lower
ON Voltage/ON Current	14 V or higher / 3.5 mA or higher	15 V or higher / 3.0 mA or higher	14 V or higher / 3.5 mA or higher
OFF Voltage/OFF Current	6 V or lower / 1.7 mA or lower	3 V or lower / 0.5 mA or lower	6 V or lower / 1.7 mA or lower
Leakage Current at OFF	0.25 mA or lower	0.25 mA or lower	0.25 mA or lower
Voltage Drop at ON	0.3 V or lower (TYP) 0.5 A; 0.6 V or lower (MAX) 0.5 A	0.3 V or lower (TYP) 0.5 A; 0.6 V or lower (MAX) 0.5 A	0.3 V or lower (TYP) 0.5 A; 0.6 V or lower (MAX) 0.5 A
Input Resistance	Approx. 3.3 kΩ	Approx. 4.7 kΩ	Approx. 3.3 kΩ
Input Form	Sink type	Sink type	Sink type
Output Form	Sink type with overload, overvoltage, overheat protection	Sink type	Sink type with overload, overvoltage, overheat protection
Surge Suppression	Zener diode	Zener diode	Zener diode
Common Wiring Method	16 points/1 common (Terminal block single wire type)	16 points/1 common (Terminal block single wire type)	16 points/1 common (Terminal block single wire type)
Number of Stations Occupied	1 station, 32 points assignment (use 16 points)	1 station, 32 points assignment (use 16 points)	1 station, 32 points assignment (use 16 points)
Noise Durability	DC type noise voltage 500 Vp-p, noise width 1 ms, noise carrier frequency 25 to 60 Hz (noise simulator condition)	DC type noise voltage 500 Vp-p, noise width 1 ms, noise carrier frequency 25 to 60 Hz (noise simulator condition)	DC type noise voltage 500 Vp-p, noise width 1 ms, noise carrier frequency 25 to 60 Hz (noise simulator condition)
Withstand Voltage	500 V AC for 1 minute between all DC external terminals and ground	500 V AC for 1 minute between all DC external terminals and ground	500 V AC for 1 minute between all DC external terminals and ground
Insulation Resistance	10 MΩ or higher, measured with 500 V DC insulation tester	10 MΩ or higher, measured with 500 V DC insulation tester	10 MΩ or higher, measured with 500 V DC insulation tester
Weight (kg) (lb.)	0.18 (0.4)	0.18 (0.4)	0.18 (0.4)
External Wiring System	7-point 2-piece terminal block (transmission, module power); Direct-type 18-point terminal block (I/O power) (M3 screw)	7-point 2-piece terminal block (transmission, module power); Direct-type 18-point terminal block (I/O power) (M3 screw)	7-point 2-piece terminal block (transmission, module power); Direct-type 18-point terminal block (I/O power) (M3 screw)
Applicable Solderless Terminal	RAV1.25-3.5 (JIS-C2805) [0.3 to 1.25 mm²]; V2-MS3, RAP2-3S, RAP2-3SL [1.25 to 2 mm²]; 2-3N, 2-3S [1.25 to 2 mm²]	RAV1.25-3.5 (JIS-C2805) [0.3 to 1.25 mm²]; V2-MS3, RAP2-3S, RAP2-3SL [1.25 to 2 mm²]; 2-3N, 2-3S [1.25 to 2 mm²]	RAV1.25-3.5 (JIS-C2805) [0.3 to 1.25 mm²]; V2-MS3, RAP2-3S, RAP2-3SL [1.25 to 2 mm²]; 2-3N, 2-3S [1.25 to 2 mm²]

Protection Features: The AJ65SBTB1-16DT and AJ65SBTB1-32DT1 include overload, overvoltage, and overheat protection on outputs, while the AJ65SBTB1-16DT1 provides standard sink-type output.
Input Characteristics: ON voltage thresholds range from 14 V to 15 V, and OFF voltage from 3 V to 6 V, ensuring reliable signal detection across variants.
Current Handling: Max load current per point is 0.5 A, with common current limits of 2.4 A (16DT1) or 3.6 A (16DT and 32DT1) to match different system loads.

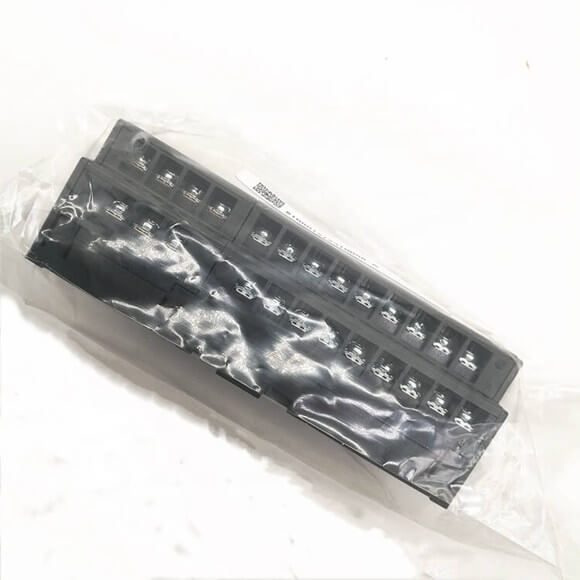

Wiring Flexibility: The 7-point and 18-point terminal blocks support single-wire and direct-type connections, compatible with standard solderless terminals for easy installation.
Environmental Robustness: Withstand voltage of 500 V AC and insulation resistance of 10 MΩ ensure reliable operation in noisy industrial environments.
Compact Form Factor: Lightweight at 0.18 kg (0.4 lb) per module, allowing space-efficient mounting in control cabinets.
