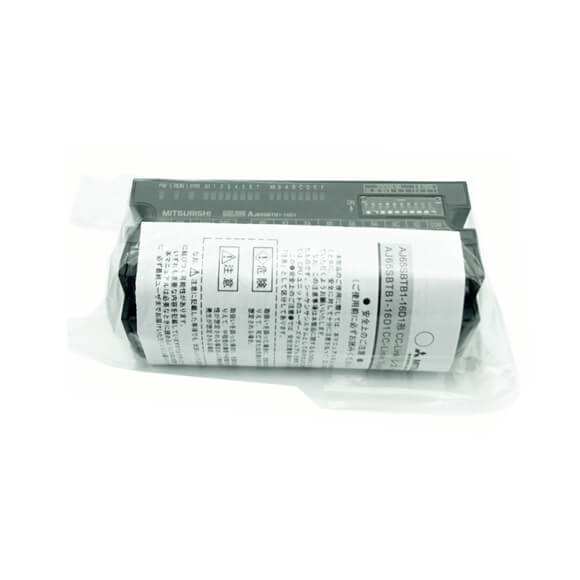

Mitsubishi AJ65SBTB1-16D CC-Link Module

Series#: Mitsubishi

Product Details

Mitsubishi CC-Link Module AJ65SBTB1-16D – 24 V DC input module with 16 points.
Photocoupler insulation for reliable signal isolation in industrial environments.
Rated input voltage 24 V DC, operating range 19.2 to 26.4 V DC (ripple ≤5%).
Sink/source shared input method with 16 points/1 common wiring (3-wire terminal block).
Occupies 1 station (32-point assignment, uses 16 points) for efficient CC-Link network integration.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Mitsubishi CC-Link Module AJ65SBTB1-16D is a high-performance 24 V DC input module designed for demanding industrial automation systems. This module features 16 input points with photocoupler isolation, ensuring reliable signal transmission and noise immunity in harsh factory environments. With a rated input current of approximately 7 mA and a wide operating voltage range of 19.2 to 26.4 V DC, the AJ65SBTB1-16D delivers consistent performance across varying power conditions. Its sink/source shared input method and 16-point/1-common wiring scheme simplify integration into existing CC-Link networks, while the 1-station occupancy (32-point assignment, using 16 points) optimizes network resource utilization. Engineered for durability, it withstands 500 V AC for 1 minute and provides insulation resistance of 10 MΩ or higher, making it ideal for critical control applications.

Parameter	Specification
Part Number	AJ65SBTB1-16D
Number of Input Points	16 points
Insulation Method	Photocoupler
Rated Input Voltage	24 V DC
Rated Input Current	Approx. 7 mA
Operating Voltage Range	19.2 to 26.4 V DC (ripple ratio: within 5%)
Max. Simultaneous ON Input Points	100%
ON Voltage/ON Current	14 V or higher / 3.5 mA or higher
OFF Voltage/OFF Current	6 V or lower / 1.7 mA or lower
Input Resistance	Approx. 3.3 kΩ
Common Wiring Method	16 points/1 common (terminal block 3-wire type)
Input Method	Sink/source shared type
Number of Stations Occupied	1 station (32 points assignment, use 16 points)
Noise Durability	DC type noise voltage 500 Vp-p, noise width 1 μs, noise carrier frequency 25 to 60 Hz (noise simulator condition)
Withstand Voltage	500 V AC for 1 minute between all DC external terminals and ground
Insulation Resistance	10 MΩ or higher, measured with a 500 V DC insulation resistance tester
Weight	0.25 kg
External Wiring System	7-point 2-piece terminal block (transmission circuit, module power supply terminal), Direct-type 34-point terminal block (I/O power supply area) (M3 screw)
Applicable Solderless Terminal	RAV1.25-3.5 (JIS-C2805) [0.3 to 1.25 mm²]; V2-MS3, RAP2-3S, RAP2-3SL, 2-3N, 2-3S [1.25 to 2 mm²]

Input Characteristics: ON at ≥14 V / ≥3.5 mA; OFF at ≤6 V / ≤1.7 mA; input resistance approx. 3.3 kΩ for precise threshold detection.
Wiring Flexibility: Supports both sink and source configurations with 16-point common wiring using a 3-wire terminal block for easy field installation.
Environmental Robustness: Withstands 500 V AC dielectric strength and 10 MΩ insulation resistance, ensuring long-term reliability in noisy industrial settings.
Network Integration: Occupies 1 CC-Link station with 32-point assignment (16 points used), optimizing bandwidth and reducing system overhead.
Terminal Compatibility: Accepts standard solderless terminals (RAV1.25-3.5, V2-MS3, RAP2-3S, etc.) for secure, maintenance-friendly connections.
