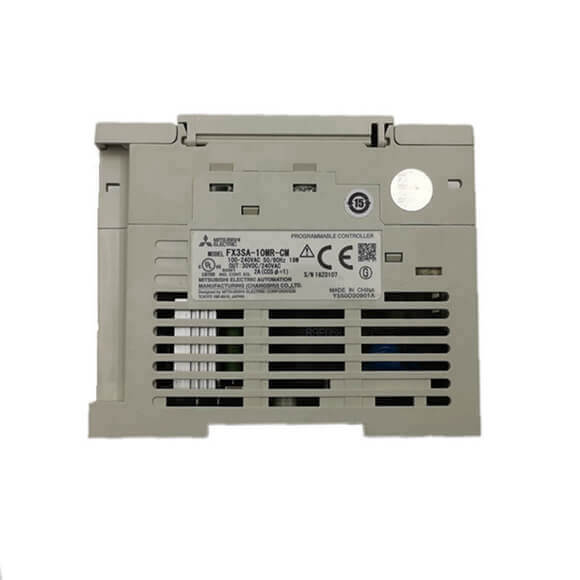

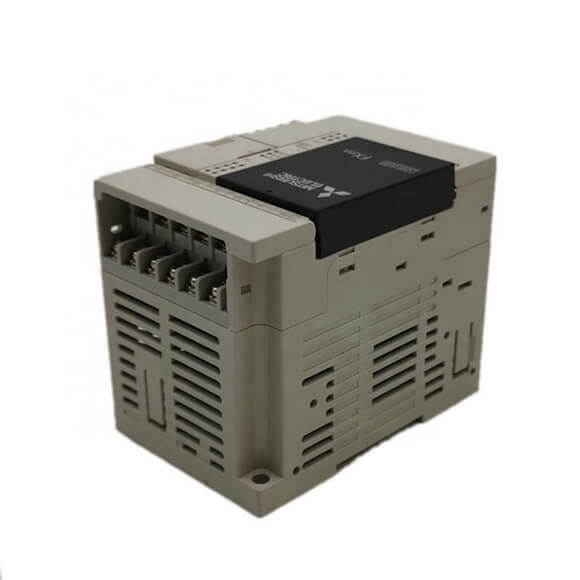

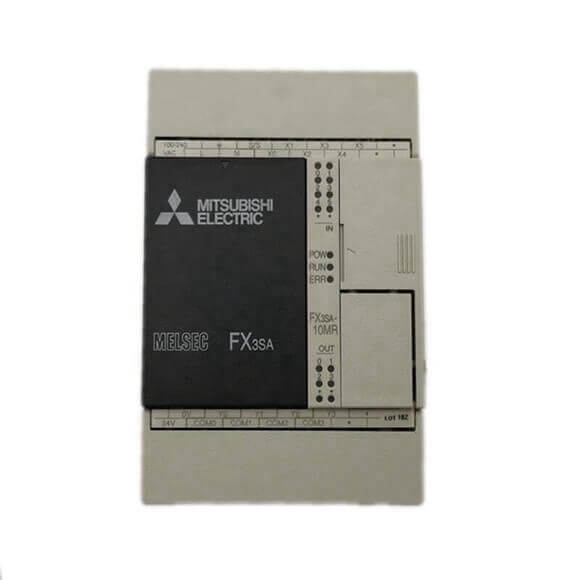

Mitsubishi PLC Controller Module FX3SA-10MR-CM

Series#: Mitsubishi

Product Details

Mitsubishi PLC Controller Module FX3SA-10MR-CM / FX3SA-10MT-CM – Compact, high-performance relay or transistor output controller.
Built-in 10 I/O points (6 inputs + 4 outputs) for small-scale automation tasks.
Supports high-speed counters up to 60 kHz (1-phase) and 30 kHz (2-phase) for precise motion control.
EEPROM latch memory for auxiliary relays, state relays, and data registers ensures data retention without backup batteries.
Seamless integration with FX3G/FX3GC/FX3GE and FX3U/FX3UC series via expansion buses and programming tools.
Rugged, space-saving design ideal for packaging, conveyors, and simple machine control.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi PLC Controller Module FX3SA-10MR-CM / FX3SA-10MT-CM is a compact yet powerful entry-level controller engineered for reliable, real-time control in demanding industrial environments. Its modular architecture supports up to 10 I/O points with relay or transistor output options, making it an ideal choice for small-scale automation, standalone machines, and retrofit applications. The FX3SA series delivers exceptional performance with a rich set of internal resources including high-speed counters, EEPROM-latched data storage, and flexible expansion capabilities, all while maintaining the proven reliability of Mitsubishi’s MELSEC family.

Parameter	FX3SA-10MR-CM / FX3SA-10MT-CM
I/O Points	6 inputs + 4 outputs (relay or transistor)
Auxiliary Relays	7,680 total – 384 general (M0–M383), 1,152 EEPROM latched (M384–M1535), 6,144 general/optional latched (M1536–M7679)
State Relays	4,096 total – 1,000 EEPROM latched (S0–S999), 3,096 general/optional latched (S1000–S4095)
Timers	320 total – 206 x 100 ms (T0–T199, T250–T255), 46 x 10 ms (T200–T245), 68 x 1 ms (T246–T249, T256–T319)
Counters	235 total (16-bit and 32-bit) – 36 general (C0–C15, C200–C219), 199 EEPROM latched (C16–C199, C220–C234)
High-Speed Counter Speed	1-phase: 6 points max @ 60 kHz / 4 points @ 10 kHz / 2 points; 2-phase: 3 points max @ 30 kHz / 2 points @ 5 kHz / 1 point
Data Registers	8,000 total – 128 general (D0–D127), 972 EEPROM latched (D128–D1099), 6,900 general/optional latched (D1100–D7999)
Extension Registers	24,000 (R0–R23999)
Extension File Registers	24,000 (ER0–R23999) – internal/optional memory

EEPROM Latch Technology: Critical data like auxiliary relays, state relays, and data registers are automatically retained in EEPROM, eliminating the need for battery backup and ensuring zero data loss during power cycles.
High-Speed Counting Capabilities: Supports 1-phase counters up to 60 kHz and 2-phase counters up to 30 kHz, enabling precise speed, position, and frequency measurement for encoder-based applications.
Flexible Timer Resolution: Offers three timer resolutions (100 ms, 10 ms, and 1 ms) with a total of 320 timers, allowing fine-tuned control of time-based sequences.
Rich Data Register Pool: 8,000 data registers plus 24,000 extension registers provide ample storage for process variables, recipe data, and intermediate calculations.
Seamless Expansion: The FX3SA series integrates with Mitsubishi’s FX3G/FX3GC/FX3GE and FX3U/FX3UC families via expansion buses, allowing easy I/O and function module upgrades.
Compact Footprint: With a slim form factor, this module fits easily into tight control panels and is ideal for distributed control architectures.
