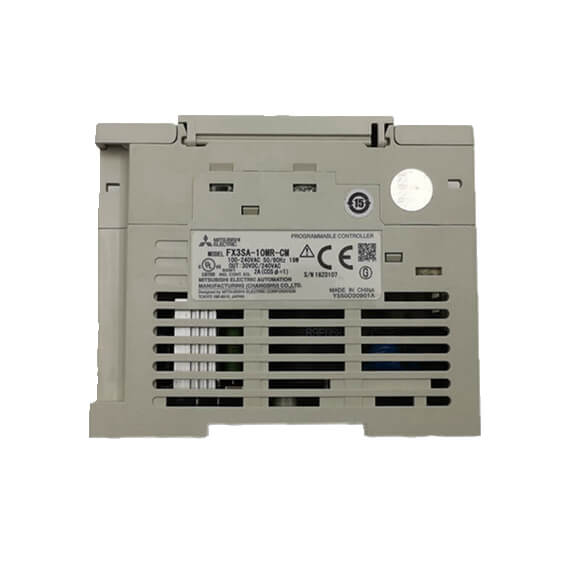

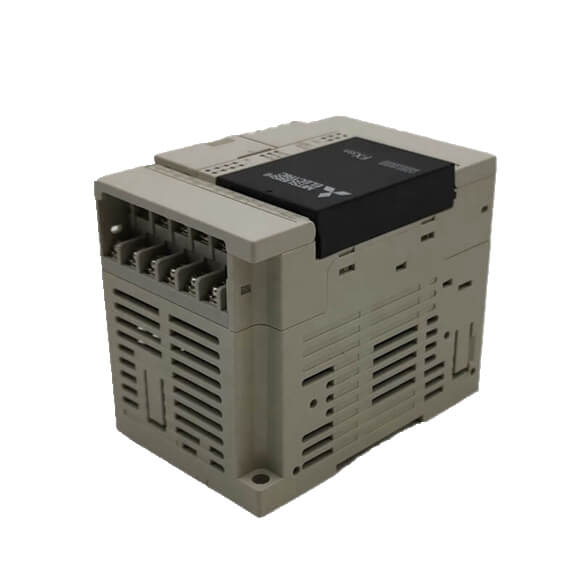

Mitsubishi PLC Controller Module FX3S-10MR/DS

Series#: Mitsubishi

Product Details

Mitsubishi PLC Controller Module FX3S-10MR/DS & FX3S-10MT/DS – Compact, high-performance control for small-scale automation.
Integrated 10 I/O points (6 inputs / 4 outputs) for relay (MR) or transistor (MT) sink/source configurations.
Built-in high-speed counter support: up to 60 kHz 1-phase and 30 kHz 2-phase inputs.
EEPROM latch memory for auxiliary relays, state relays, timers, and counters ensures data retention without battery backup.
Fast delivery with global logistics – typically ships within 24 hours of order confirmation.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi FX3S-10MR/DS and FX3S-10MT/DS are the latest additions to the MELSEC FX3S family, designed for cost-sensitive yet demanding applications. These compact PLC controllers pack a punch with 10 built-in I/O points, supporting either relay (MR) or transistor (MT) output types. With a robust instruction set and high-speed processing, the FX3S series excels in standalone machine control, packaging systems, and small conveyor lines. The model-specific suffix “/DS” indicates a DC power supply and sink/source input configuration, making it ideal for 24 VDC industrial environments. All units are 100% original and new, sourced directly from Mitsubishi’s authorized supply chain.

Parameter	FX3S-10MR/DS & FX3S-10MT/DS
Auxiliary Relays	7,680 total: 384 general (M0–M383), 1,152 EEPROM latched (M384–M1535), and 6,144 general/optional latched (M1536–M7679)
State Relays	4,096 total: 1,000 EEPROM latched (S0–S999) and 3,096 general/optional latched (S1000–S4095)
Timers	320 total: 206 × 100 ms (T0–T199, T250–T255), 46 × 10 ms (T200–T245), and 68 × 1 ms (T246–T249, T256–T319)
Counters	235 total (16-bit and 32-bit): 36 general (C0–C15, C200–C219) and 199 EEPROM latched (C16–C199, C220–C234)
High-Speed Counter Speed	1-phase: 6 points max (60 kHz / 4 points, 10 kHz / 2 points); 2-phase: 3 points max (30 kHz / 2 points, 5 kHz / 1 point)
Data Registers	8,000 total: 128 general (D0–D127), 972 EEPROM latched (D128–D1099), and 6,900 general/optional latched (D1100–D7999)
Extension Registers	24,000 (R0–R23999)
Extension File Registers	24,000 (ER0–R23999) internal/optional memory

Power Supply & I/O: DC 24 V input; relay (MR) or transistor (MT) output with sink/source wiring, 6 inputs / 4 outputs.
Processing Speed: Basic instructions executed in 0.21 µs; ample for real-time control loops.
Memory: 64K steps program capacity with built-in EEPROM for reliable non-volatile storage.
Communication: Built-in RS-422 port for programming; optional RS-485 or Ethernet adapter via expansion board.
Environmental: Operating temperature 0–55°C; storage -25–75°C; IP20 enclosure for panel mounting.
Compliance: CE, UL, and cUL certified for global industrial use.
