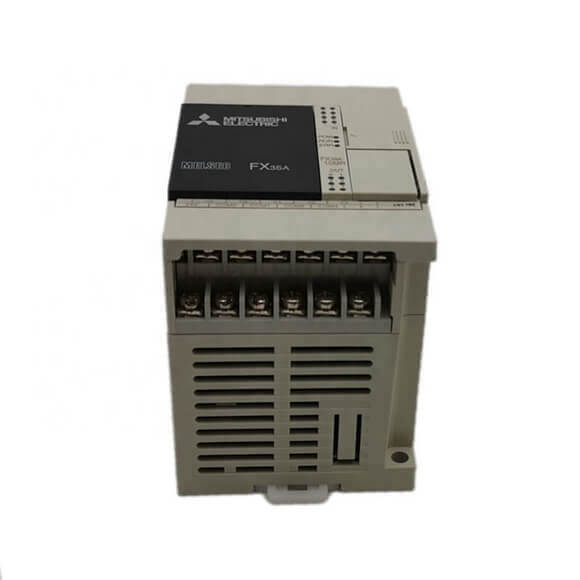

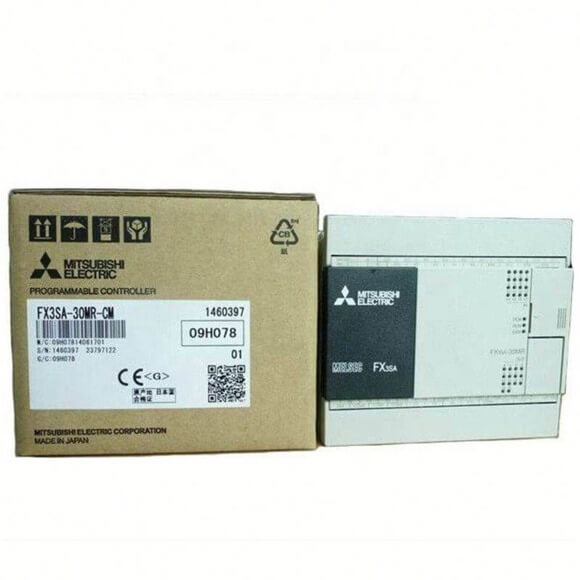

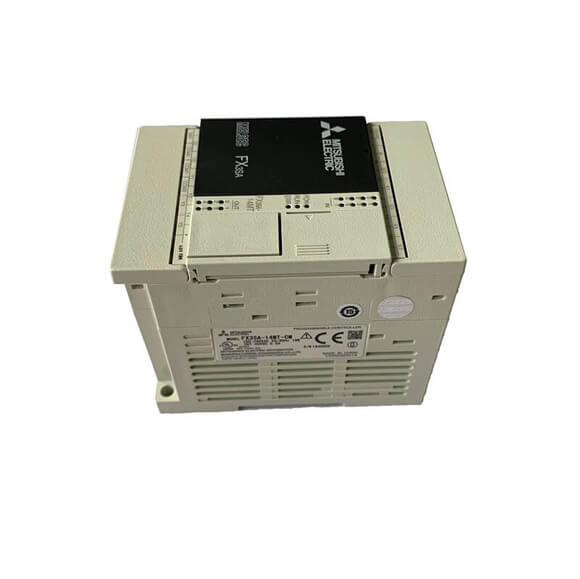

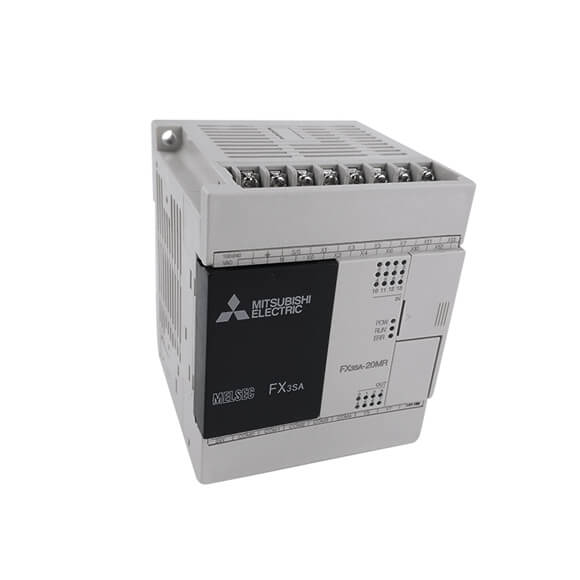

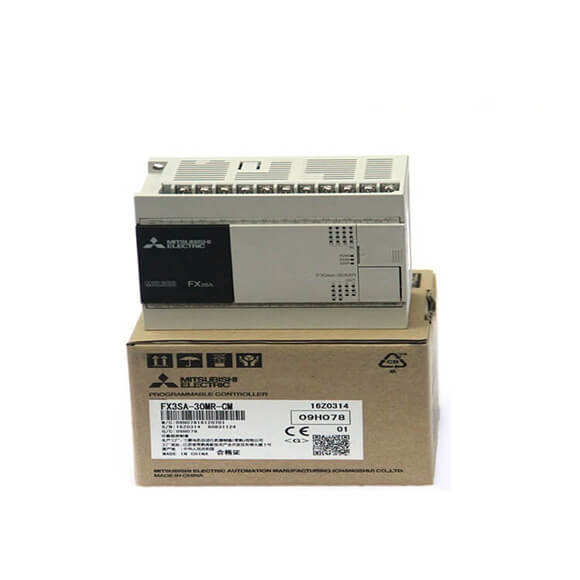

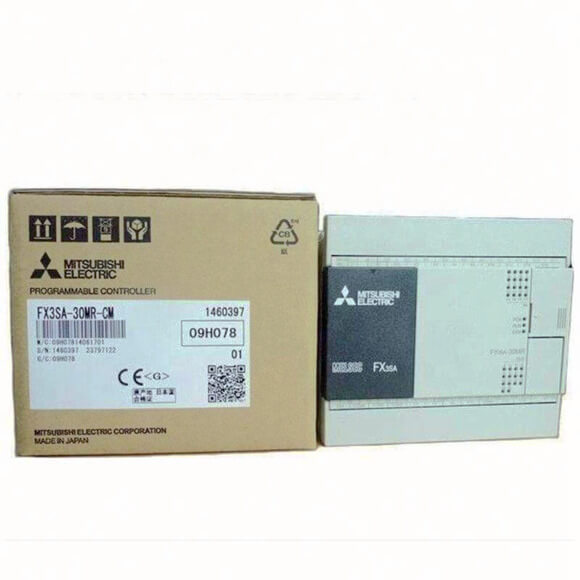

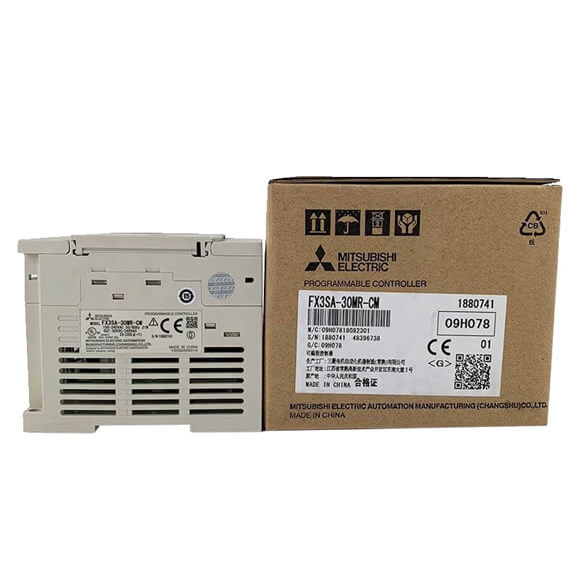

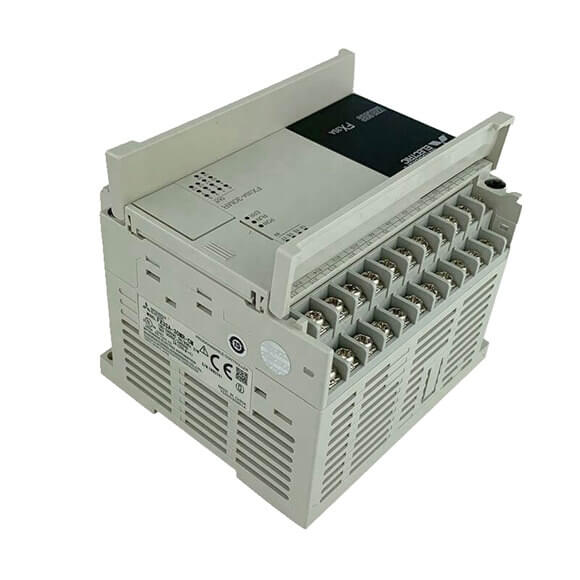

Mitsubishi PLC Controller Module FX3S-30MR/DS

Series#: Mitsubishi

Product Details

Mitsubishi FX3S-30MR/DS & FX3S-30MT/DS – Compact PLC controller module for precise automation control.
Features 30 I/O points with relay (MR) or transistor (MT) output options for flexible integration.
Built-in high-speed counters (up to 60 kHz 1-phase) and 8,000 data registers for advanced logic.
EEPROM latched auxiliary relays and state relays ensure reliable data retention during power loss.
Supports 320 timers and 235 counters for complex timing and counting sequences.
Designed for space-saving panel mounting with robust industrial-grade performance.

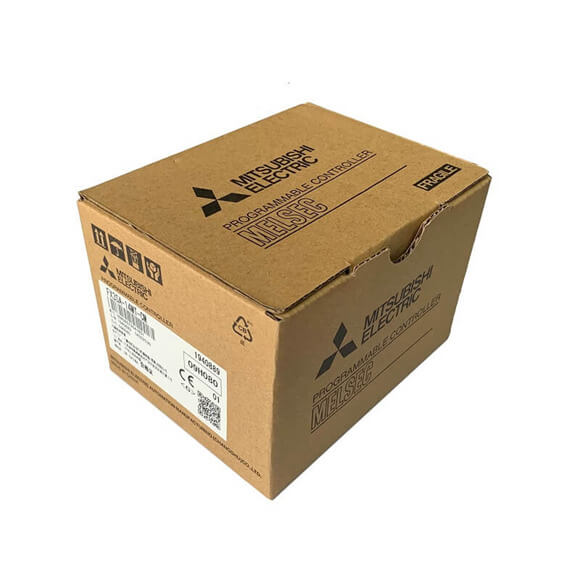

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi FX3S-30MR/DS and FX3S-30MT/DS are high-performance PLC controller modules tailored for compact automation systems. These modules integrate 30 I/O points, offering either relay (MR) for high-current switching or transistor (MT) for high-speed output. With a rich set of internal relays, timers, counters, and data registers, the FX3S series delivers reliable logic control for machinery, packaging, and process applications. Below is the detailed technical specification.

Parameter	FX3S-30MR/DS & FX3S-30MT/DS
Auxiliary Relays	7,680 total (M0–M7679): 384 general (M0–M383), 1,152 EEPROM latched (M384–M1535), 6,144 general/optional latched (M1536–M7679)
State Relays	4,096 total (S0–S4095): 1,000 EEPROM latched (S0–S999), 3,096 general/optional latched (S1000–S4095)
Timers	320 total: 206 × 100 ms (T0–T199, T250–T255), 46 × 10 ms (T200–T245), 68 × 1 ms (T246–T249, T256–T319)
Counters	235 total (16-bit and 32-bit): 36 general (C0–C15, C200–C219), 199 EEPROM latched (C16–C199, C220–C234)
High-Speed Counter Speed	1-phase: 6 points max (60 kHz/4 pts, 10 kHz/2 pts); 2-phase: 3 points max (30 kHz/2 pts, 5 kHz/1 pt)
Data Registers	8,000 total (D0–D7999): 128 general (D0–D127), 972 EEPROM latched (D128–D1099), 6,900 general/optional latched (D1100–D7999)
Extension Registers	24,000 (R0–R23999)
Extension File Registers	24,000 (ER0–R23999) internal/optional memory

I/O Configuration: 30 I/O points (16 inputs, 14 outputs) – relay (MR) handles up to 2A/point, transistor (MT) supports high-speed switching up to 0.5A/point.
Memory & Retention: EEPROM latched relays and registers ensure data persistence without battery backup; supports optional memory for extension file registers.
High-Speed Processing: 1-phase counters up to 60 kHz and 2-phase up to 30 kHz enable precise encoder feedback and motion control.
Timing & Counting: 320 timers (1 ms to 100 ms resolution) and 235 counters (16/32-bit) handle complex sequencing and event counting.
Data Handling: 8,000 data registers plus 24,000 extension registers provide ample storage for analog values, recipes, and status tracking.
Power & Environment: 24 VDC power supply; compact form factor for DIN rail mounting; operating temperature 0–55°C.
Compliance: Meets CE, UL, and RoHS standards for global industrial applications.
