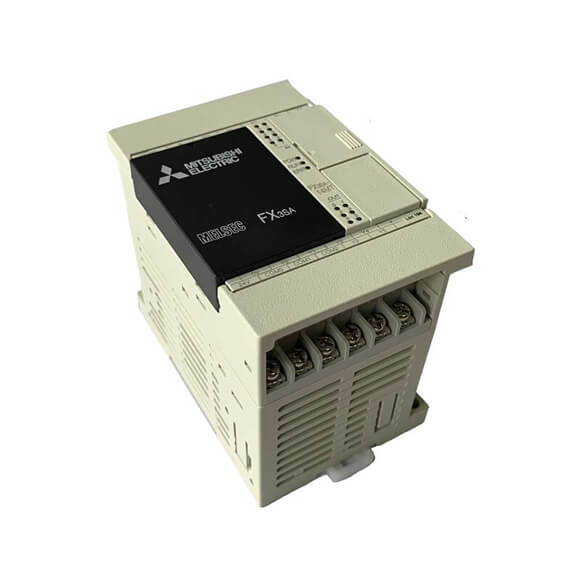

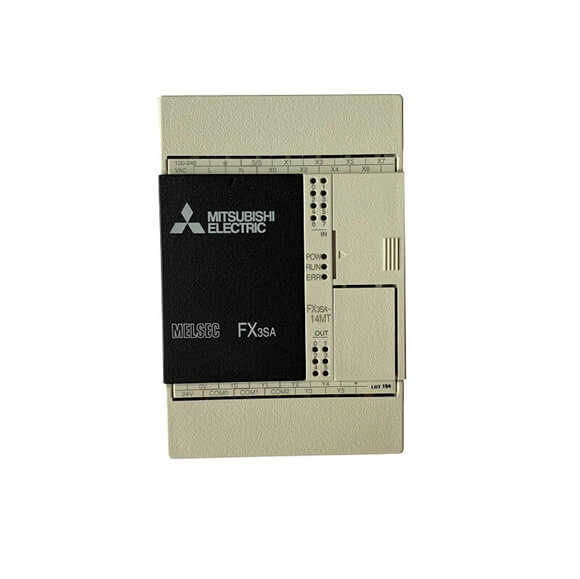

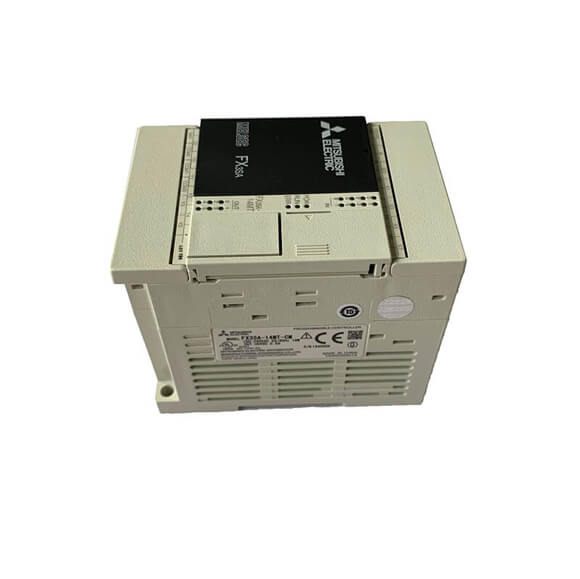

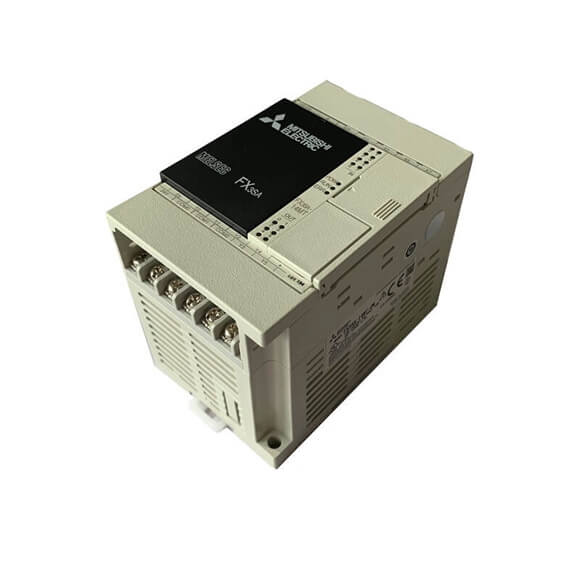

Mitsubishi PLC Controller Module FX3S-14MR/DS

Series#: Mitsubishi

Product Details

Mitsubishi FX3S-14MR/DS & FX3S-14MT/DS – Compact PLC controllers for small-scale automation.
8 inputs / 6 outputs (relay or transistor) in a slim, space-saving body.
Built-in high-speed counter capability up to 60 kHz for precise motion control.
EEPROM latching for auxiliary relays, state relays, and data registers ensures data retention without battery.
Direct replacement for FX3G/FX3U series with enhanced memory and performance.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi FX3S-14MR/DS and FX3S-14MT/DS are high-performance PLC controller modules designed for compact machinery and standalone automation tasks. As part of the FX3S family, they offer a robust 14-point I/O configuration with either relay or transistor output types, making them ideal for small-scale control systems. These units feature a powerful CPU with extensive memory for auxiliary relays (7,680 total, including 384 general and 1,152 EEPROM latched), state relays (4,096 total with 1,000 EEPROM latched), and data registers (8,000 total with 128 general and 972 EEPROM latched). The integrated high-speed counters support 1-phase inputs up to 60 kHz (6 points max) and 2-phase inputs up to 30 kHz (3 points max), ensuring precise speed and position tracking. With a wide range of timers (320 total, including 206 100 ms and 46 10 ms) and counters (235 total, with 36 general and 199 EEPROM latched), the FX3S series provides reliable, maintenance-free operation for demanding industrial environments.

Parameter	FX3S-14MR/DS & FX3S-14MT/DS	FX3G/FX3GC/FX3GE	FX3U/FX3UC
Auxiliary relays	7,680 total, with 384 general (M0 – M383), 1,152 EEPROM latched (M384 – M1535), and 6,144 general/optional latched (M1536 – M7679)	Same as FX3S	7,680 total, with 500 general (M0 – M499), 524 optional latched (M500 – M1023), and 6,656 latched (M1024 – M7679)
State relays	4,096 total, with 1,000 EEPROM latched (S0 – S999) and 3,096 general/optional latched (S1000 – S4095)	Same as FX3S	4,096 total, with 1,000 optional latched (S0 – S999) and 3,096 latched (S1000 – S4095)
Timers	320 total, with 206 100 ms (T0 – T199 and T250 – T255), 46 10 ms (T200 – T245), and 68 1 ms (T246 – T249 and T256 – T319)	Same as FX3S	512 total, with 206 100 ms (T0 – T191, T192 – T199 and T250 – T255), 46 10 ms (T200 – T245), and 260 1 ms (T246 – T249 and T256 – T511)
Counters	235 total (16 bit and 32 bit), with 36 general (C0 – C15 and C200 – C219) and 199 EEPROM latched (C16 – C199 and C220 – C234)	Same as FX3S	235 total, with 120 general (C0 – C99 and C200 – C219) and 115 latched (C100 – C199 and C220 – C234)
High-speed counter speed	1-phase, 6 points max: 60 kHz / 4 points, 10 kHz / 2 points; 2-phase, 3 points max: 30 kHz / 2 points, 5 kHz / 1 point	Same as FX3S	1-phase, 8 points max: 100 kHz / 6 points, 10 kHz / 2 points; 2-phase, 2 points max: 50 kHz / 2 points
Data registers	8,000 total, with 128 general (D0 – D127), 972 EEPROM latched (D128 – D1099), and 6,900 general/optional latched (D1100 – D7999)	Same as FX3S	8,000 total, with 200 general (D0 – D199), 312 optional latched (D200 – D511), and 7,488 latched (D512 – D7999)
Extension registers	24,000 (R0 – R23999)	Same as FX3S	32,768 (R0 – R32767)
Extension file registers	24,000 (ER0 – R23999) internal/optional memory	Same as FX3S	32,768 (ER0 – R32767) optional memory

Input/Output Configuration: 8 digital inputs (sink/source) and 6 outputs (relay for MR version, transistor for MT version) with 24V DC power supply.
Program Memory: 16k steps EEPROM, no battery backup required for program retention.
Communication Ports: Built-in RS-422 programming port and optional RS-485 (via FX3S-485ADP) for MODBUS networking.
High-Speed Processing: Basic instruction speed of 0.21 µs per step, with dedicated positioning and pulse output capabilities.
Environmental Rating: IP20 enclosure, operating temperature 0–55°C, humidity 5–95% non-condensing.
Compliance: CE, UL, and cUL certified for global industrial use.
