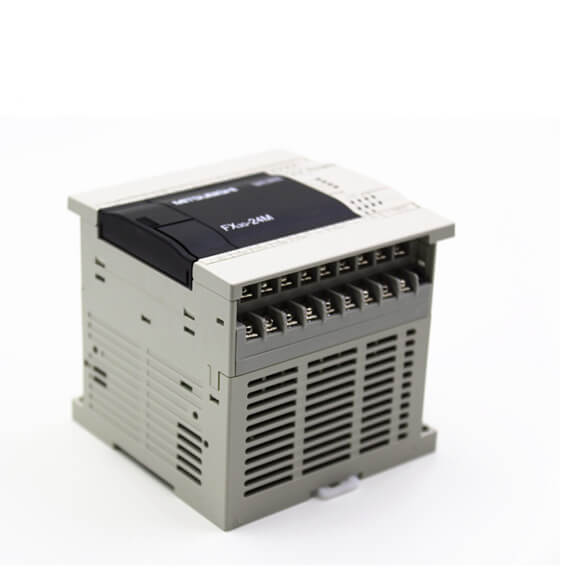

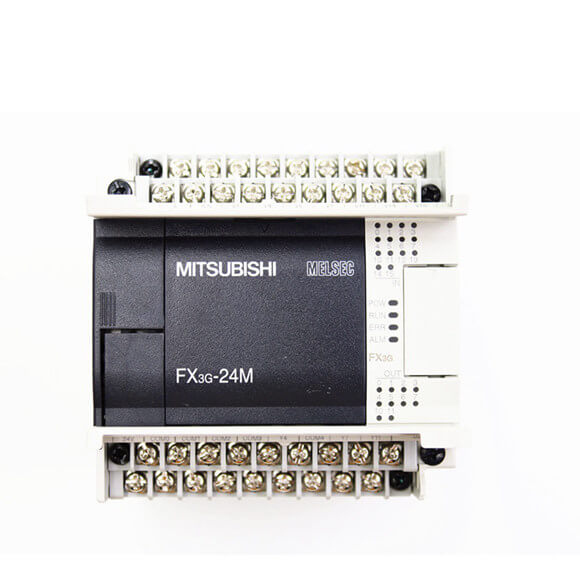

Mitsubishi PLC Controller Module FX3G-24MR/DS

Series#: Mitsubishi

Product Details

High-performance Mitsubishi PLC Controller module FX3G-24MR/DS and FX3G-24MT/DS for compact automation.
Features 14 digital inputs and 10 relay (MR) or transistor (MT) outputs for versatile control.
Supports up to 7,680 auxiliary relays and 8,000 data registers for complex logic.
Integrated high-speed counters up to 60 kHz for precise motion and speed monitoring.
Built-in real-time clock and extensive EEPROM latching for reliable data retention.
Compatible with FX3G series expansion modules for scalable system design.

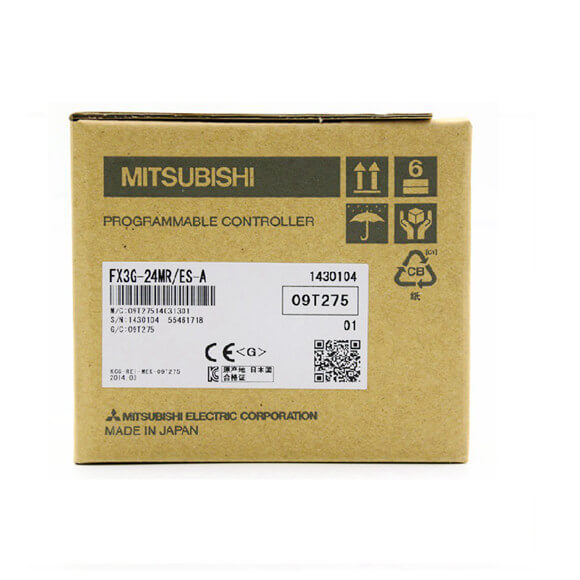

100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Mitsubishi PLC Controller module FX3G-24MR/DS (relay output) and FX3G-24MT/DS (transistor output) are compact yet powerful programmable logic controllers designed for mid-range automation tasks. These modules deliver exceptional performance with a rich set of built-in functions, including high-speed counters, real-time clock, and extensive memory resources, making them ideal for applications in packaging, material handling, and machine control. The FX3G-24MR/DS and FX3G-24MT/DS offer seamless integration with Mitsubishi’s FX3G series ecosystem, ensuring reliable and scalable solutions for modern industrial environments.

Parameter	Specification
Auxiliary relays	7,680 total, with 384 general (M0 – M383), 1,152 EEPROM latched (M384 – M1535), and 6,144 general/optional latched (M1536 – M7679)
Special auxiliary relays	512 (M8000 – M8511)
State relays	4,096 total, with 1,000 EEPROM latched (S0 – S999) and 3,096 general/optional latched (S1000 – S4095)
Timers	320 total, with 206 100 ms (T0 – T199 and T250 – T255), 46 10 ms (T200 – T245), and 68 1 ms (T246 – T249 and T256 – T319)
Counters	235 total (16 bit and 32 bit), with 36 general (C0 – C15 and C200 – C219) and 199 EEPROM latched (C16 – C199 and C220 – C234)
High-speed counters	21 total, with 16 1-phase (C235 – C250) and 5 2-phase (C251 – C255)
High-speed counter speed	1-phase, 6 points max: 60 kHz / 4 points, 10 kHz / 2 points; 2-phase, 3 points max: 30 kHz / 2 points, 5 kHz / 1 point
Real-time clock	Year, month, day, hour, minute, second, day of the week
Data registers	8,000 total, with 128 general (D0 – D127), 972 EEPROM latched (D128 – D1099), and 6,900 general/optional latched (D1100 – D7999)
Extension registers	24,000 (R0 – R23999)
Extension file registers	24,000 (ER0 – R23999) internal/optional memory
Index registers	16
Special data registers	256 (D8000 – D8255) / 512 (D8000 – D8511)
Pointers	2,048
Nestings	8
Interrupt inputs	6
Constants	16 bit: K: -32,768 to +32,767; H: 0 to FFFF; 32 bit: K: -2,147,483,648 to +2,147,483,647; H: 0 to FFFF FFFF

Memory Architecture: Extensive EEPROM latching across relays, state relays, and data registers ensures data integrity during power loss, with optional memory for expanded storage.
Timing and Counting Precision: 320 timers with resolutions from 1 ms to 100 ms, plus 235 counters including 21 high-speed channels up to 60 kHz, enabling accurate process control.
Interrupt Handling: 6 dedicated interrupt inputs allow for immediate response to critical events, enhancing real-time performance.
Data Management: 8,000 data registers plus 24,000 extension and file registers provide ample space for complex algorithms and data logging.
Scalability: Designed to integrate with FX3G series expansion modules, supporting up to 256 I/O points for flexible system growth.
Output Options: The FX3G-24MR/DS offers relay outputs for high-current switching, while the FX3G-24MT/DS provides transistor outputs for high-speed applications.
