Mitsubishi PLC Module FX3G-40MR/DS FX3G-40MT/DS

Series#: Mitsubishi

Product Details

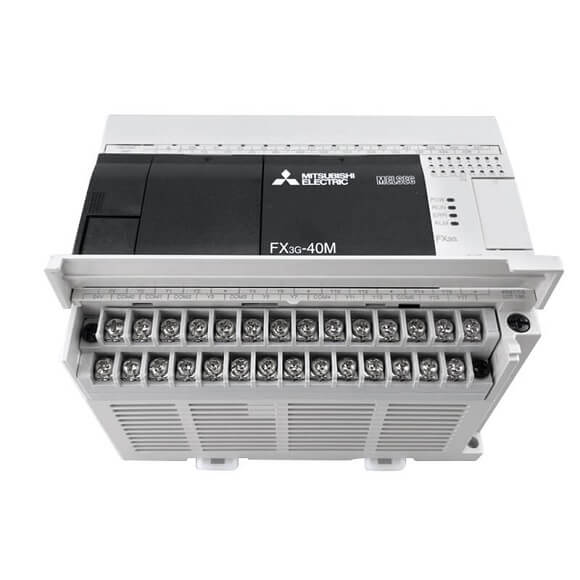

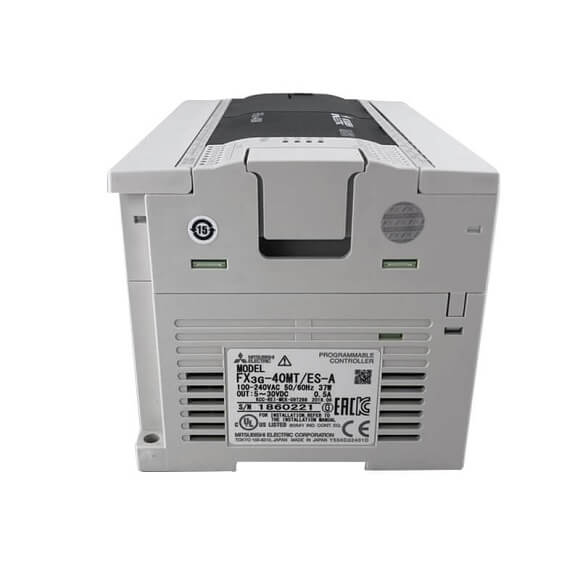

Mitsubishi PLC FX3G-40MR/DS & FX3G-40MT/DS – Compact, high-performance controllers for demanding automation.
Integrated 40 I/O points with relay (MR) or transistor (MT) output options for flexible field wiring.
Rich built-in memory: 32K steps program capacity and extensive data registers (8,000 total).
High-speed processing with 60 kHz 1-phase and 30 kHz 2-phase counters for precise motion control.
Easy expansion via FX3 series extension modules and full compatibility with GX Works2 software.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The Mitsubishi PLC FX3G-40MR/DS and FX3G-40MT/DS represent the latest evolution in the FX3G family, offering a cost-effective yet powerful solution for mid-range automation tasks. With 40 built-in I/O points and support for up to 128 I/O via extension, these controllers excel in applications ranging from packaging lines to material handling. The relay output version (MR) handles high-current loads, while the transistor version (MT) provides fast, solid-state switching for high-speed sequences. Built on a robust 32-bit processor, the FX3G-40M series delivers a basic instruction speed of 0.21 µs and a generous 32K-step program memory, ensuring smooth execution of complex logic. Its integrated real-time clock, 6 interrupt inputs, and comprehensive counter/timer suite make it ideal for time-critical processes. Backed by 100% original components and rigorous testing, this unit guarantees reliable operation in industrial environments.

Parameter	Specification
Auxiliary Relays	7,680 total (384 general M0–M383, 1,152 EEPROM latched M384–M1535, 6,144 general/optional latched M1536–M7679)
Special Auxiliary Relays	512 (M8000–M8511)
State Relays	4,096 total (1,000 EEPROM latched S0–S999, 3,096 general/optional latched S1000–S4095)
Timers	320 total (206 100 ms T0–T199 & T250–T255, 46 10 ms T200–T245, 68 1 ms T246–T249 & T256–T319)
Counters	235 total (16-bit and 32-bit): 36 general (C0–C15 & C200–C219), 199 EEPROM latched (C16–C199 & C220–C234)
High-Speed Counters	21 total: 16 1-phase (C235–C250), 5 2-phase (C251–C255)
High-Speed Counter Speed	1-phase: 6 points max at 60 kHz / 4 points at 10 kHz / 2 points; 2-phase: 3 points max at 30 kHz / 2 points at 5 kHz / 1 point
Real-Time Clock	Year, month, day, hour, minute, second, day of week
Data Registers	8,000 total (128 general D0–D127, 972 EEPROM latched D128–D1099, 6,900 general/optional latched D1100–D7999)
Extension Registers	24,000 (R0–R23999)
Extension File Registers	24,000 (ER0–R23999) internal/optional memory
Index Registers	16
Special Data Registers	256 (D8000–D8255) / 512 (D8000–D8511)
Pointers	2,048
Nestings	8
Interrupt Inputs	6
Constants	16-bit: K -32,768 to +32,767 / H 0 to FFFF; 32-bit: K -2,147,483,648 to +2,147,483,647 / H 0 to FFFF FFFF

Memory & Processing: 32K-step program capacity with 0.21 µs basic instruction speed; supports EEPROM and optional memory cartridges.
I/O Configuration: 24 digital inputs (sink/source) and 16 outputs (relay or transistor); expandable to 128 I/O via FX3G extension modules.
Communication: Built-in RS-422 programming port; optional RS-232C, RS-485, or Ethernet adapters for networking.
Power Supply: 24 VDC nominal (DS models); includes 400 mA 24 VDC sensor power supply.
Environmental: Operating temperature 0–55°C; humidity 5–95% non-condensing; vibration resistance per IEC 60068-2-6.
Certification: CE marked and UL listed for industrial control equipment.
